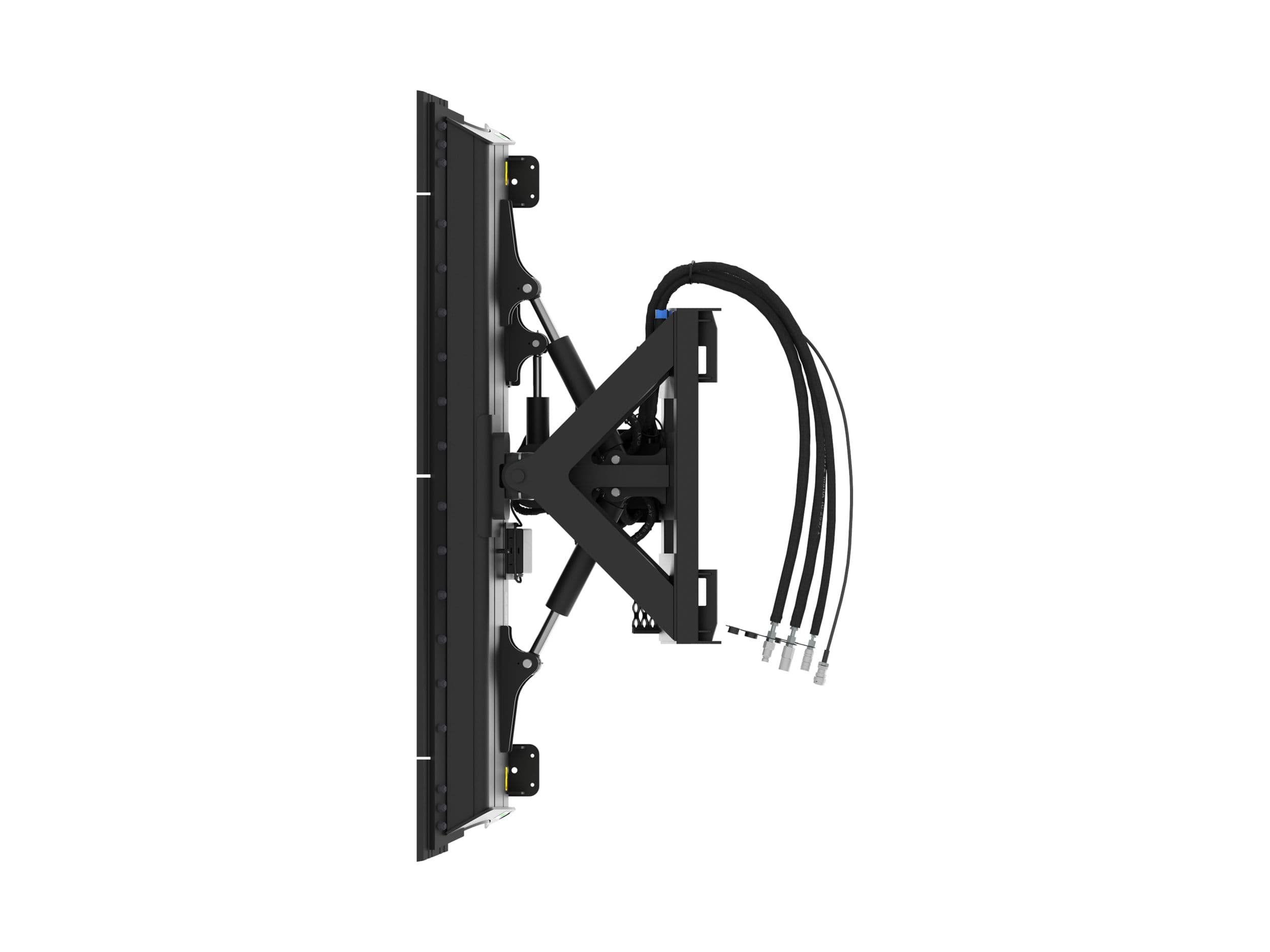

2646 mm (104 in) Dozer Blade with Smart
رقم القطعة: CAT-130780
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
2646 mm (104 in) Dozer Blade with Smart
المواصفات
| Model | 2646 mm (104 in), Smart |
|---|---|
| Product Page | https://www.cat.com/en_US/products/new/attachments/blades/dozer-blades/130780.html |
| Caterpillar Category | Dozer Blades |
| Caterpillar Category Path | Products > Attachments > Blades > Dozer Blades > 2646 mm (104 in), Smart |
| Caterpillar Product Family | attachments |
| Caterpillar Product Page ID | 130780 |
| Datasheet URL | https://s7d2.scene7.com/is/content/Caterpillar/CM20260213-97542-342e9 |
| Overall Height | 878 mm |
| Blade Width | 2646 mm |
| Blade Height | 716 mm |
| Cutting Edge Thickness | 16 mm |
| Length | 1030 mm |
| Weight | 547 kg |
| Interface Type | Skid Steer Coupler |
| Optimal Hydraulic Flow | 42-86 L/min (11-23 gpm) |
| Optimal Hydraulic Pressure | 145-235 bar (2100-3400 psi) |
| Required Hydraulics | Standard Flow w/14 pin Electrical |
| Width - Fully Angled | 2304 mm |
| Maximum Blade Angle - Right/Left of Center | 30 degrees |
| Tilt Angle Range | +/- 10 degrees |
