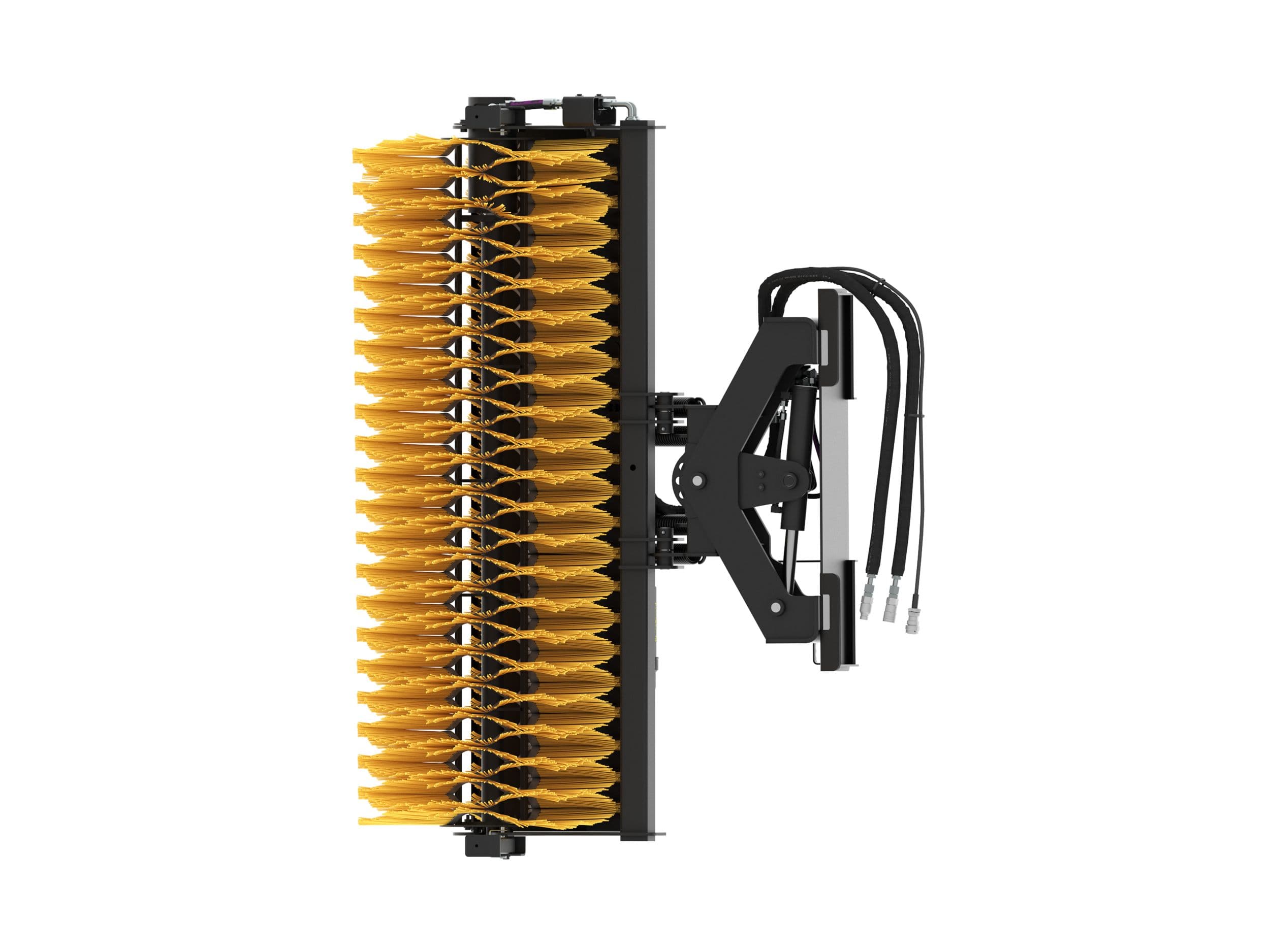

BA121 Hydraulic Angle Broom With Polypropylene Bristles

Name: BA121 Hydraulic Angle Broom With Polypropylene Bristles
Brand: Caterpillar
SKU: CAT-120804

رقم القطعة: CAT-120804

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

BA121 Hydraulic Angle Broom With Polypropylene Bristles

Model	BA121 Hydraulic, Polypropylene
Product Page	https://www.cat.com/en_US/products/new/attachments/brooms/angle-brooms/120804.html
Caterpillar Category	Angle Brooms
Caterpillar Category Path	Products > Attachments > Brooms > Angle Brooms > BA121 Hydraulic, Polypropylene
Caterpillar Product Family	attachments
Caterpillar Product Page ID	120804
Datasheet URL	https://s7d2.scene7.com/is/content/Caterpillar/CM20231010-c302d-f2eb5
Height	893 mm
Length	1560 mm
Overall Width	2336 mm
Weight	405 kg
Interface Type	Skid Steer Coupler
Optimal Hydraulic Flow	42-87 L/min (11-23 gpm)
Optimal Hydraulic Pressure	145-241 bar (2100-3500 psi)
Required Hydraulics	Standard Flow w/14 pin
Sweeping Width	2100 mm
Brush Diameter	815 mm
Motor Displacement	395 cm³/rev
Brush Speed at Maximum Flow	200 RPM
Sweeping Width - Angled (± 30 Degrees)	1820 mm
Overall Width - Angled (± 30 Degrees)	2020 mm
Drive Method	Direct Drive
Optional Hood Extension	25 kg
