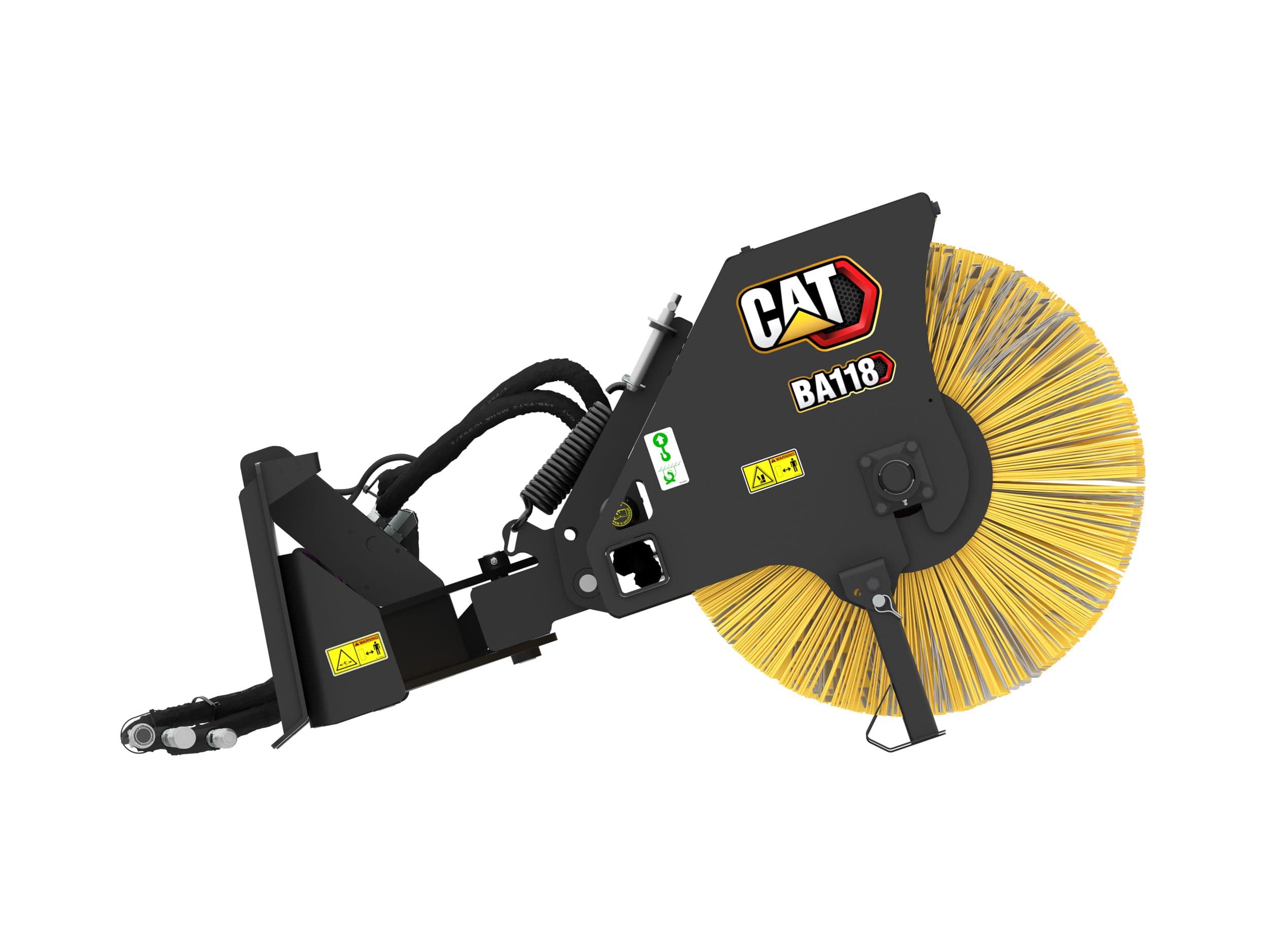

BA118 Hydraulic Angle Broom With Polypropylene/Wire Bristles
رقم القطعة: CAT-120800
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
BA118 Hydraulic Angle Broom With Polypropylene/Wire Bristles
المواصفات
| Model | BA118 Hydraulic, Polypropylene/Wire |
|---|---|
| Product Page | https://www.cat.com/en_US/products/new/attachments/brooms/angle-brooms/120800.html |
| Caterpillar Category | Angle Brooms |
| Caterpillar Category Path | Products > Attachments > Brooms > Angle Brooms > BA118 Hydraulic, Polypropylene Wire |
| Caterpillar Product Family | attachments |
| Caterpillar Product Page ID | 120800 |
| Datasheet URL | https://s7d2.scene7.com/is/content/Caterpillar/CM20231010-c302d-f2eb5 |
| Height | 893 mm |
| Length | 1560 mm |
| Overall Width | 2036 mm |
| Weight | 388 kg |
| Interface Type | Skid Steer Coupler |
| Optimal Hydraulic Flow | 42-87 L/min (11-23 gpm) |
| Optimal Hydraulic Pressure | 145-241 bar (2100-3500 psi) |
| Required Hydraulics | Standard Flow w/14 pin |
| Sweeping Width | 1800 mm |
| Brush Diameter | 815 mm |
| Motor Displacement | 395 cm³/rev |
| Brush Speed at Maximum Flow | 200 RPM |
| Sweeping Width - Angled (± 30 Degrees) | 1560 mm |
| Overall Width - Angled (± 30 Degrees) | 1760 mm |
| Drive Method | Direct Drive |
| Optional Hood Extension | 22 kg |
