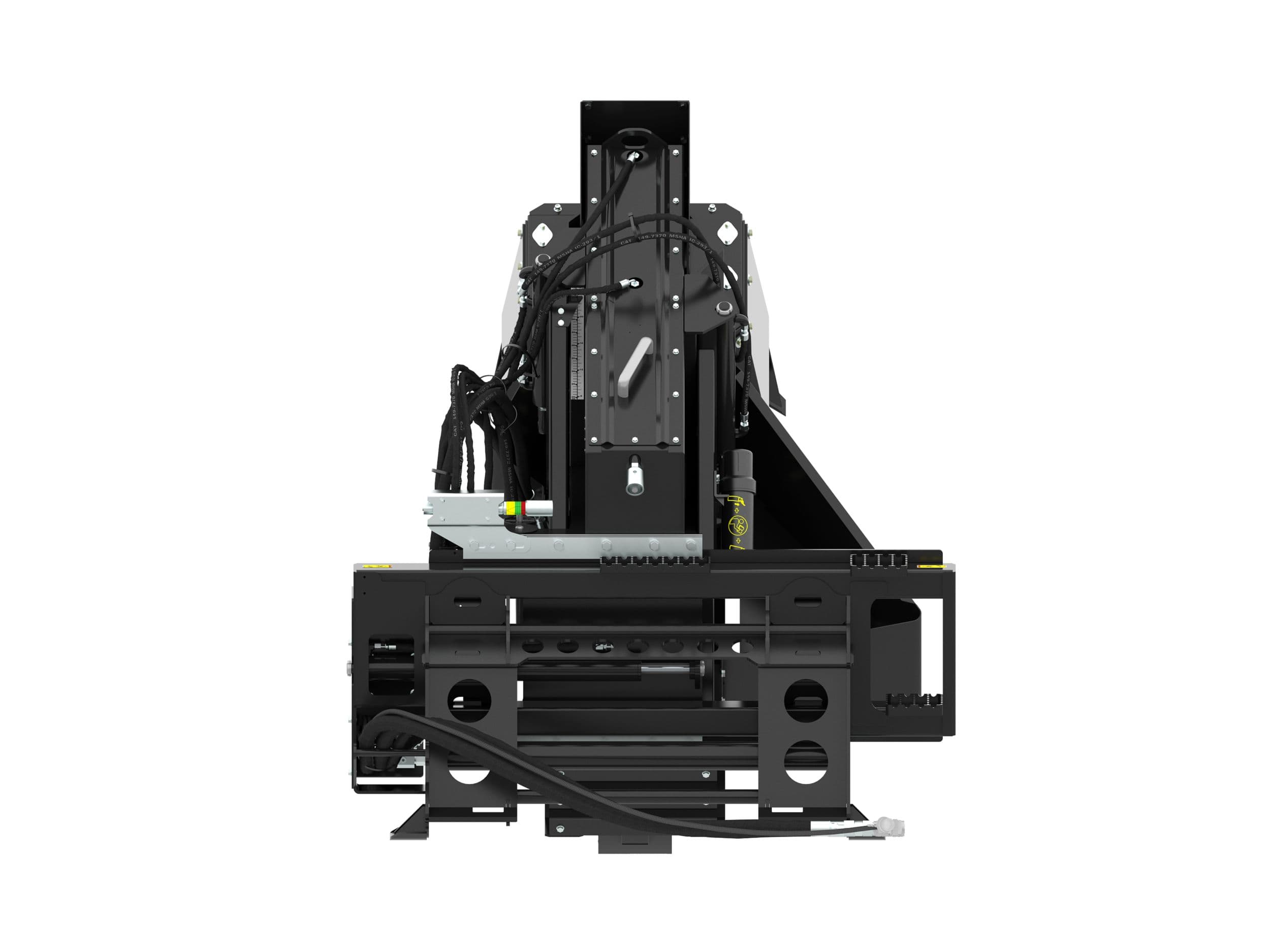

SW360, 200 mm (8 in) Wheel Saw

Caterpillar

SW360, 200 mm (8 in) Wheel Saw

رقم القطعة: CAT-103001

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

SW360, 200 mm (8 in) Wheel Saw

المواصفات

ModelSW360, 200 mm (8 in)
Product Pagehttps://www.cat.com/en_US/products/new/attachments/saws/wheel-saws/103001.html
Caterpillar CategoryWheel Saws
Caterpillar Category PathProducts > Attachments > Saws > Wheel Saws > SW360, 200 mm (8 in)
Caterpillar Product Familyattachments
Caterpillar Product Page ID103001
Datasheet URLhttps://s7d2.scene7.com/is/content/Caterpillar/CM20250131-8d5e7-06a33
Overall Height1765 mm
Length2417 mm
Overall Width1655 mm
Weight1325 kg
Interface TypeSkid Steer Coupler
Optimal Hydraulic Flow98-125 L/min (26-33 gpm)
Optimal Hydraulic Pressure230-280 bar (3300-4000 psi)
Required HydraulicsHigh Flow XPS
Maximum Cutting Depth600 mm
Motor Displacement1686 cm³/rev
Drive MethodDirect Drive
Side Shift Travel550 mm
Standard Bit TypeConcrete
Wheel Width200 mm
Wheel Torque at Maximum Pressure7509 N·m
Wheel Speed at Maximum Flow74 RPM
Bit Speed at Maximum Flow360 m/min
Conical Bits - Per Wheel96
Optional Bit TypeAll Purpose
Trench Cleaning DeviceYes
