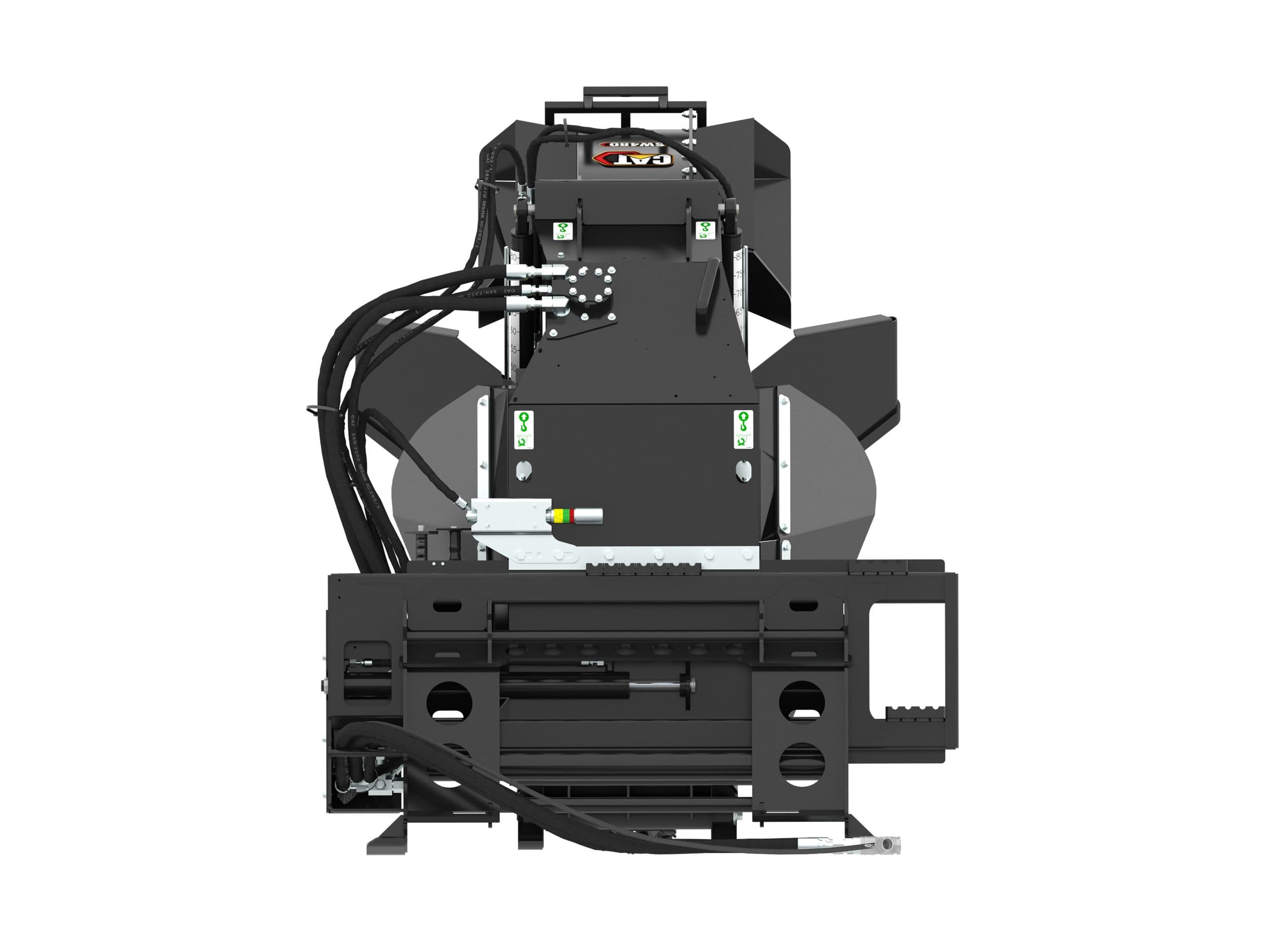

SW480, 250 mm (10 in) Wheel Saw

Caterpillar

SW480, 250 mm (10 in) Wheel Saw

رقم القطعة: CAT-103012

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

SW480, 250 mm (10 in) Wheel Saw

المواصفات

ModelSW480, 250 mm (10 in)
Product Pagehttps://www.cat.com/en_US/products/new/attachments/saws/wheel-saws/103012.html
Caterpillar CategoryWheel Saws
Caterpillar Category PathProducts > Attachments > Saws > Wheel Saws > SW480, 250 mm (10 in)
Caterpillar Product Familyattachments
Caterpillar Product Page ID103012
Datasheet URLhttps://s7d2.scene7.com/is/content/Caterpillar/CM20250131-8d5e7-06a33
Overall Height1860 mm
Length2600 mm
Overall Width1655 mm
Weight1450 kg
Interface TypeSkid Steer Coupler
Optimal Hydraulic Flow136-150 L/min (36-40 gpm)
Optimal Hydraulic Pressure250-280 bar (3630-4000 psi)
Required HydraulicsHigh Flow XHP / XE
Maximum Cutting Depth800 mm
Motor Displacement1686 cm³/rev
Drive MethodDirect Drive
Side Shift Travel550 mm
Standard Bit TypeConcrete
Wheel Width250 mm
Wheel Torque at Maximum Pressure7509 N·m
Wheel Speed at Maximum Flow89 RPM
Bit Speed at Maximum Flow444 m/min
Conical Bits - Per Wheel72
Optional Bit TypeAll Purpose
Trench Cleaning DeviceNo
