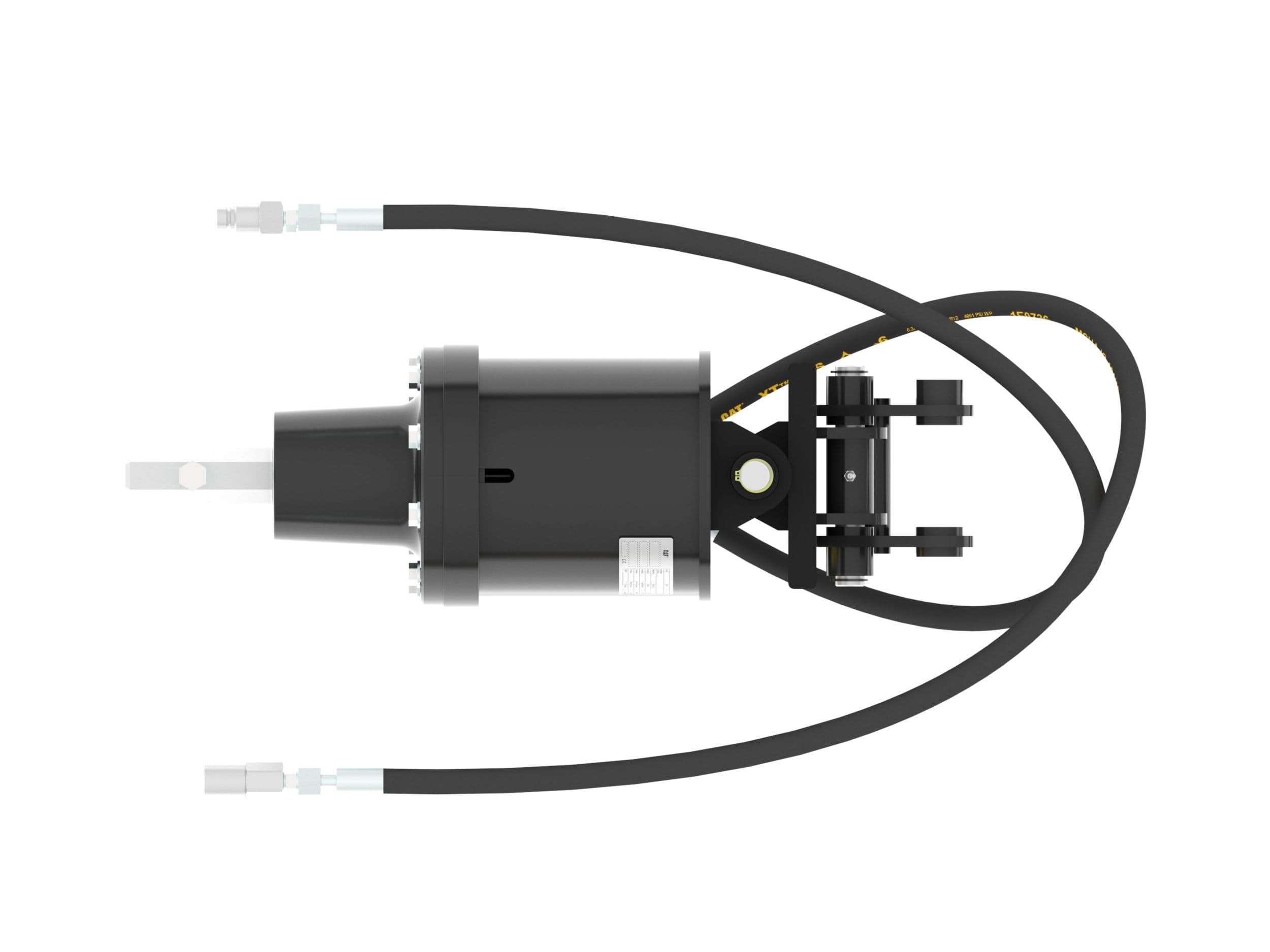

A11 Auger For 1 Ton Mini Excavators

Caterpillar

A11 Auger For 1 Ton Mini Excavators

رقم القطعة: CAT-1000033211

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

A11 Auger For 1 Ton Mini Excavators

المواصفات

ModelA11, 1 Ton Mini Excavators
Product Pagehttps://www.cat.com/en_US/products/new/attachments/augers/augers/1000033211.html
Caterpillar CategoryAugers
Caterpillar Category PathProducts > Attachments > Augers > Augers > A11, 1 Ton Mini Excavators
Caterpillar Product Familyattachments
Caterpillar Product Page ID1000033211
Datasheet URLhttps://s7d2.scene7.com/is/content/Caterpillar/CM20240927-84d8a-131f8
Overall Height900 mm
Weight79 kg
Optimal Hydraulic Flow75-90 L/min (20-24 gpm)
Optimal Hydraulic Pressure105-150 bar (1523-2176 psi)
Required HydraulicsStandard Flow
Motor Displacement393 cm³
Drive MethodGerotor Motor - Direct Drive
Bit Speed at Maximum Flow191 rpm
Drive Shaft Torque at Maximum Pressure1105 N·m
Swing Range (L/R)76 degrees
Mounting Bracket Design1 Ton Mini Excavator Pin On
Overall Width - With Bracket280 mm
Overall Length - With Bracket280 mm
Housing Diameter280 mm
Swing Range (fore/aft)36 degrees
Hex Output Shaft Size51 mm
