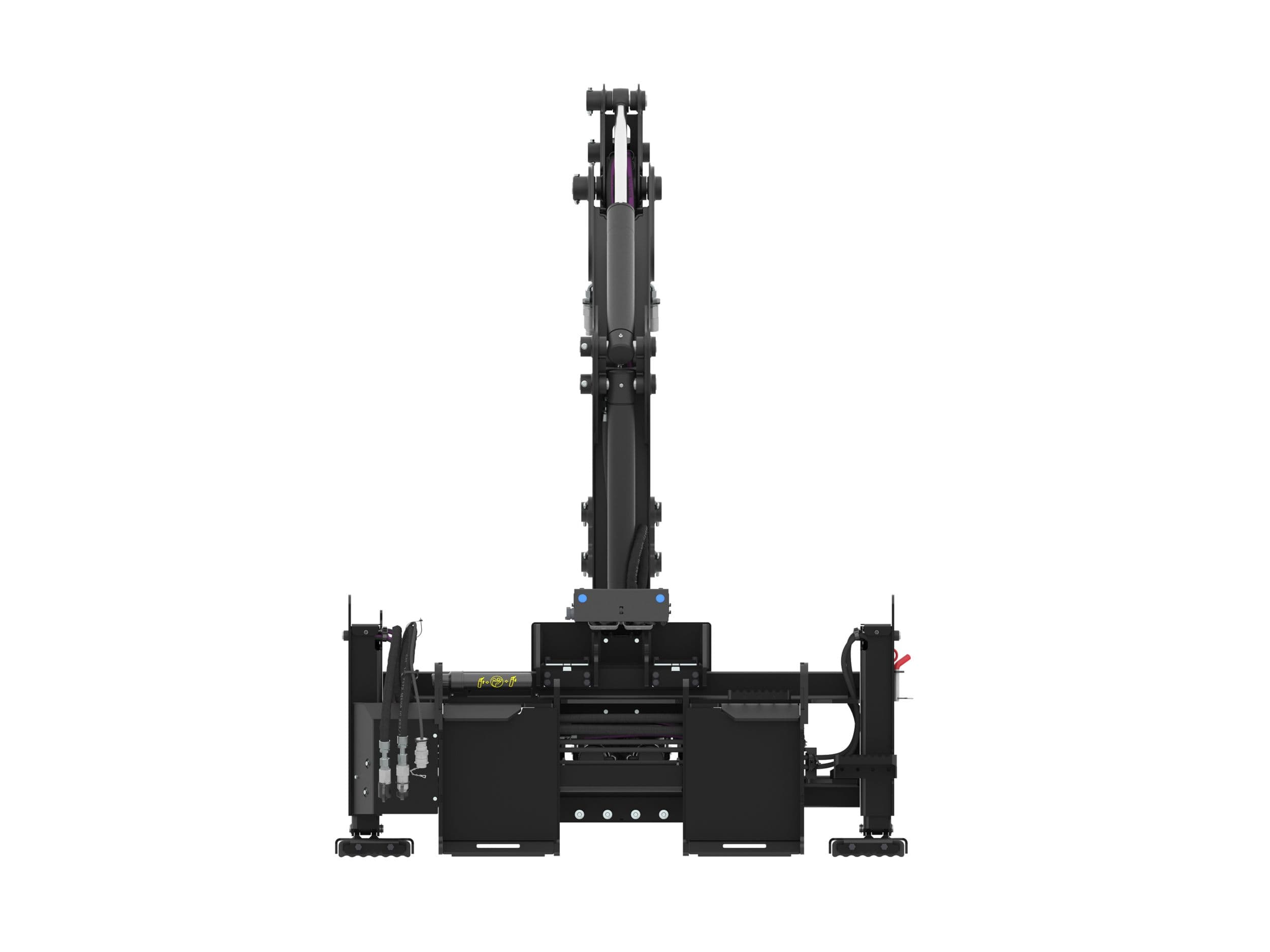

BH130 Backhoe with Smart Technology

Caterpillar

BH130 Backhoe with Smart Technology

رقم القطعة: CAT-124760

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

BH130 Backhoe with Smart Technology

المواصفات

ModelBH130, Smart
Product Pagehttps://www.cat.com/en_US/products/new/attachments/backhoes/backhoes/124760.html
Caterpillar CategoryBackhoes
Caterpillar Category PathProducts > Attachments > Backhoes > Backhoes > BH130, Smart
Caterpillar Product Familyattachments
Caterpillar Product Page ID124760
Datasheet URLhttps://s7d2.scene7.com/is/content/Caterpillar/CM20211019-6b49c-1d330
Transport Width2041 mm
Transport Height2562 mm
Operating Weight1055 kg
Ground Clearance99 mm
Maximum Digging Depth2972 mm
Overall Length2334 mm
Interface TypeSkid Steer Coupler
Optimal Hydraulic Flow50-86 L/min (13-23 gpm)
Optimal Hydraulic Pressure180-230 bar (2600-3340 psi)
Required HydraulicsStandard Flow w/14 Pin Electrical
Stabilizer Spread - Operating Position1813 mm
Digging Depth at 610 mm (2 ft)3156 mm
Digging Depth at 4220 mm (8 ft)2705 mm
Straight Wall Digging Depth2020 mm
Overall Operating Height3723 mm
Loading Height2470 mm
Loading Reach1869 mm
Reach From Swing Pivot at Ground Line4029 mm
Swing Arc180 degrees
Bucket Rotation183 degrees
Bucket Breakout Force3181 kg
Stick Breakout Force1605 kg
Boom Pivot Height448 mm
Total Side Shift Travel838 mm
