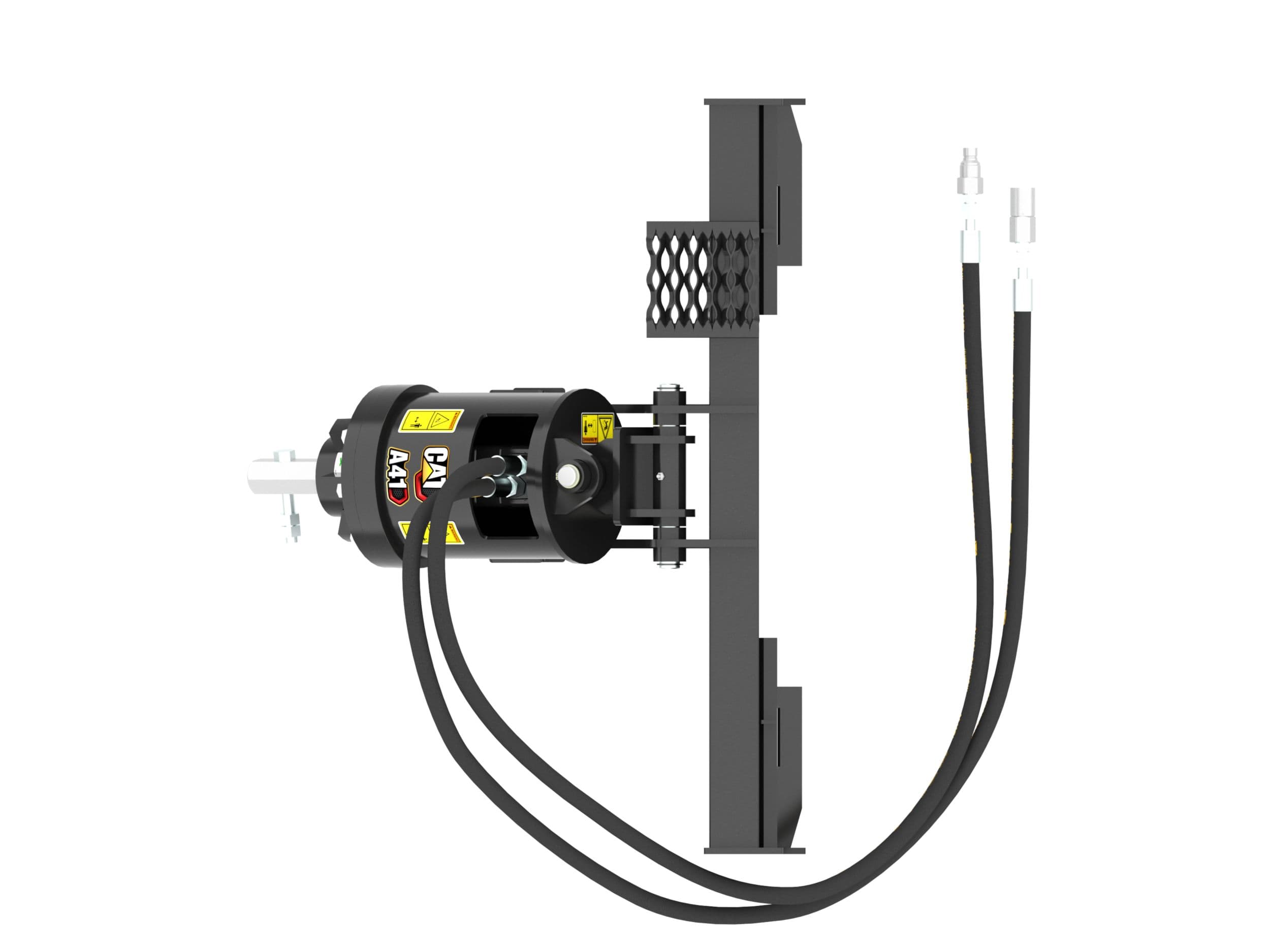

A41 Auger For Skid Steer Couplers

Name: A41 Auger For Skid Steer Couplers
Brand: Caterpillar
SKU: CAT-17722297

رقم القطعة: CAT-17722297

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

A41 Auger For Skid Steer Couplers

Model	A41, Skid Steer Coupler
Product Page	https://www.cat.com/en_US/products/new/attachments/augers/augers/17722297.html
Caterpillar Category	Augers
Caterpillar Category Path	Products > Attachments > Augers > Augers > A41, Skid Steer Coupler
Caterpillar Product Family	attachments
Caterpillar Product Page ID	17722297
Datasheet URL	https://s7d2.scene7.com/is/content/Caterpillar/CM20240927-84d8a-131f8
Overall Height	934 mm
Weight	166 kg
Optimal Hydraulic Flow	42-83 L/min (11-22 gpm)
Optimal Hydraulic Pressure	145-235 bar (2100-3400 psi)
Required Hydraulics	Standard Flow
Motor Displacement	250 cm³
Drive Method	Gerotor Motor - Single Planetary Reduction
Bit Speed at Maximum Flow	71 rpm
Drive Shaft Torque at Maximum Pressure	4118 N·m
Swing Range (L/R)	102 degrees
Mounting Bracket Design	Skid Steer Loader Coupler
Overall Width - With Bracket	1152 mm
Overall Length - With Bracket	598 mm
Housing Diameter	252 mm
Swing Range (fore/aft)	120 degrees
Hex Output Shaft Size	51 mm
Swing Range	102 degrees
