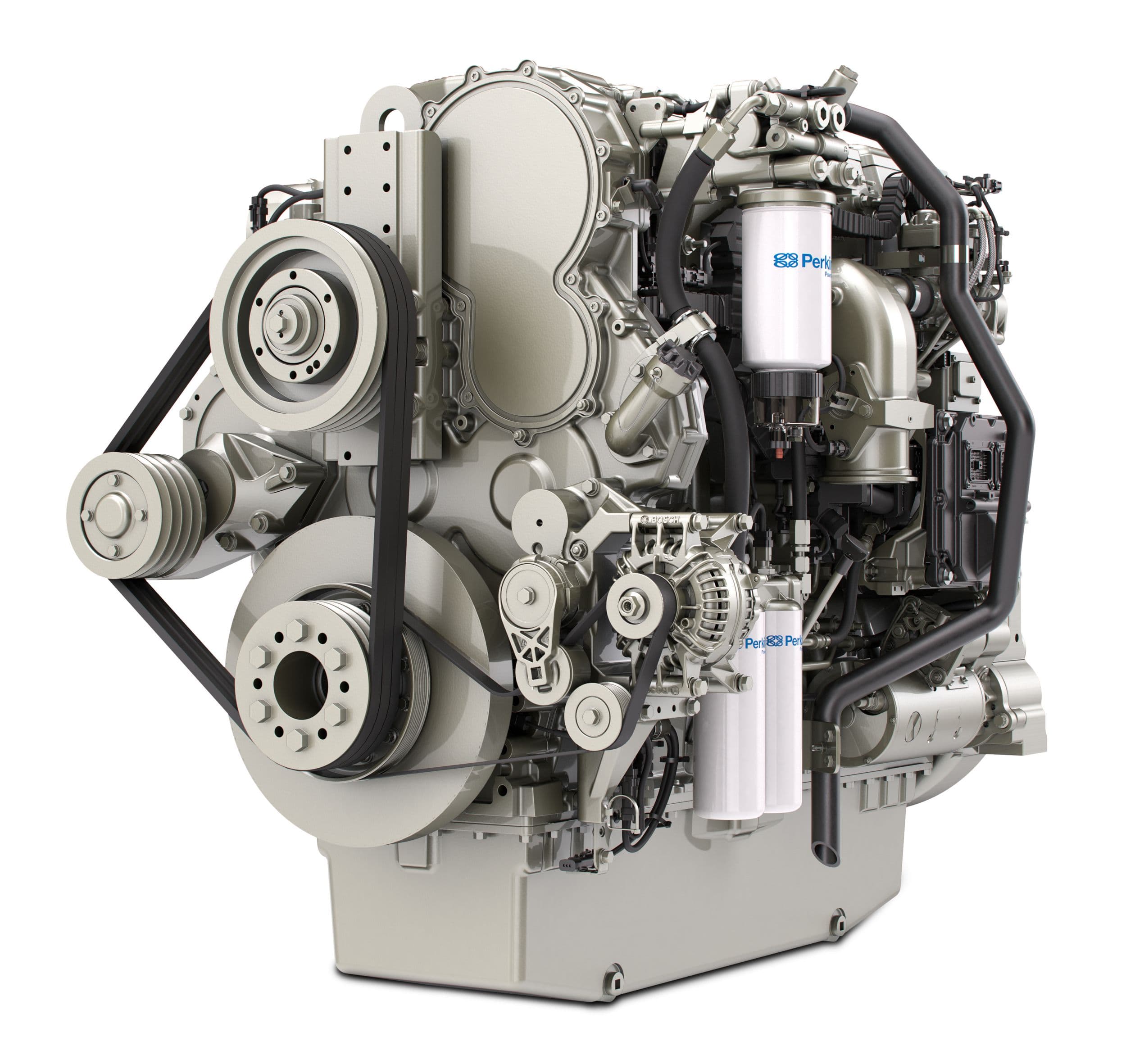

2506J-E15TA Industrial Diesel Engine

Perkins

2506J-E15TA Industrial Diesel Engine

رقم القطعة: 1000024118

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

2506J-E15TA Industrial Diesel Engine

المواصفات

Model2506J-E15TA
Series2500 Series
CategoryIndustrial
Power Rating / Maximum Power433 kW (581 hp)
Power Rating / Maximum Torque2655 Nm @ 1400 rpm (1958 lb-ft @ 1400 rpm)
Power Rating / Rated Speed1800-2100 rpm
Power Rating / Minimum Power354 kW (475 hp)
Emission Standards / EmissionsEU Stage V, U.S. EPA & CARB Tier 4 Final
General / Number of Cylinders6 inline
General / Cycle4 stroke
General / Bore137 mm (5.4 in)
General / Stroke171 mm (6.7 in)
General / Displacement15.2 l (928 in³)
General / Compression Ratio17.0:1
General / AspirationTurbocharged aftercooled
General / Combustion SystemDirect injection
General / Rotation from Flywheel EndAnti-clockwise
General / Cooling SystemLiquid
Engine Dimensions / Length1438 mm (56.6 in)
Engine Dimensions / Width955 mm (38 in)
Engine Dimensions / Height1248 mm (49.1 in)
Engine Dimensions / Dry Weight1542 kg (3400 lb)
General / AftertreatmentDOC+DPF+SCR
