Atlas Copco

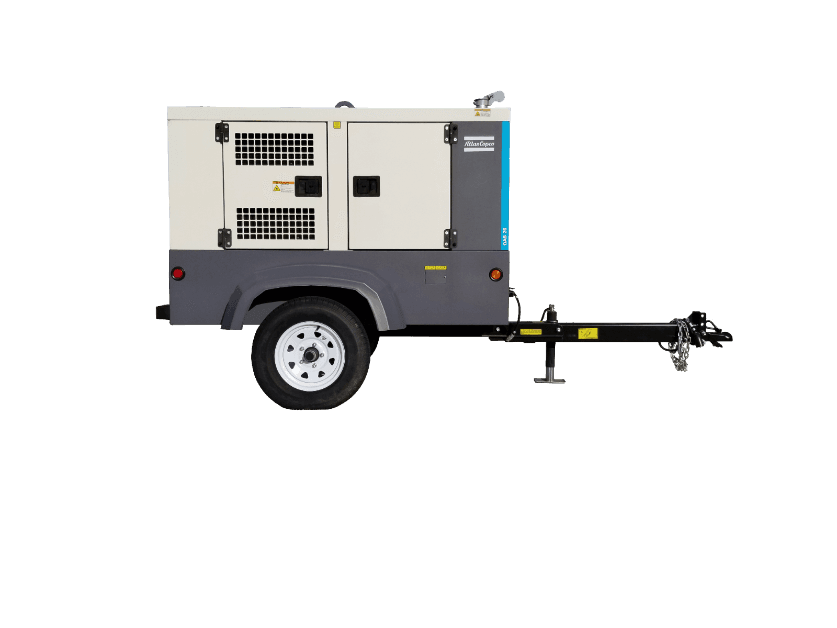

QAS 25 ID Small Diesel Generator

Name: QAS 25 ID Small Diesel Generator
Brand: Atlas Copco
SKU: QAS25ID

رقم القطعة: QAS25ID

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

QAS 25 ID Small Diesel Generator

المواصفات

Model	QAS 25 ID
Series	Small Diesel Generators
Category	Small Diesel Generators
Product Type	diesel-generator-set
Prime Power (kVA)	25 kVA
Frequency	60 Hz
Engine Model	4LE2T
Engine Displacement	2.2
Fuel Type	Diesel
Engine Speed	1800
Prime Power (kW)	20 kW
Rating Types	PRIME / STANDBY
Engine Cylinders	4
Engine Aspiration	Turbocharged
Alternator Excitation	AREP (auxiliary winding)
Alternator Insulation	Class H
Standby Power (kVA)	28 kVA
Performance / Frequency	60 Hz
Performance / Rated prime power 3ø	20/25 kW/kVA
Performance / Rated standby power 3ø	22/28 kW/kVA
Performance / 3ø Voltage in 480V switch position (series	480Y / 277 V
Performance / Amp capacity @480V	30 A
Performance / 3ø Voltage in 240-208V switch position (p	240YY / 139-208YY V
Performance / Amp capacity @208V	63 A
Performance / Rated prime power 1ø	13/13 kW/kVA
Performance / 1ø Voltage in 120-240V switch position (Zi	240 / 120 V
Performance / Amp Capacity @120V	54 x 2 A
Engine / Model	4LE2T
Engine / US EPA Family	MSZXL02.2ZTB
Engine / US EPA Tier	Tier 4 Final
Engine / Displacement	2.2 L
Engine / Cylinders	4 #
Engine / Continuous engine output	31.5 (23.5) HP (kW)
Engine / Aspiration	Turbocharged
Engine / Max. ambient temperature (@Sea Level)	122(50) °F (°C)
Engine / Battery Capacity (Cold Cranking Amps)	685 A
Emissions Stage	Tier 4 Final
Standby Power (kW)	22 kW
Engine / Rated Speed	1800 RPM
Fuel System / Fuel Type	Ultra-Low Sulfur Diesel ONLY
Fuel System / Fuel Tank Capacity	75 (284) Gal/hr (L/hr)
Fuel System / Fuel Autonomy @ 75% load	48.2 Hr
Performance / Alternator (4 Pole, 12 Wire)	LSA 40 M5 Leroy Somer
Performance / Excitation system	AREP (auxiliary winding)
Performance / Insulation	Class H
Performance / Power Distribution – Terminal Board	5 Wire (L1, L2, L3, N, Ground)
Performance / Rated Prime Power @ 240V 3Ø	20/25 A
Performance / Rated Prime Power @ 2080V 3Ø	18/23 A
Performance / Digital Automatic Voltage Regulator (+/- 0.25%)	D350 Leroy Somer
Performance / Main Breaker - Shunt Trip	63 A
Engine / Min. starting temperature	14(-10) °F (°C)
Engine / Sound Pressure Level @ 23’(7 m) @ 75% Load	67 dB(A)
Fuel System / Fuel Consumption @ 25% load	0.71 (2.69) Gal/hr (L/hr)
Fuel System / Fuel Consumption @ 50% load	1.02 (3.86) Gal/hr (L/hr)
Fuel System / Fuel Consumption @ 75% load	1.40 (5.30) Gal/hr (L/hr)
Fuel System / Fuel Consumption @ 100% load	1.63 (6.17) Gal/hr (L/hr)
