John Deere

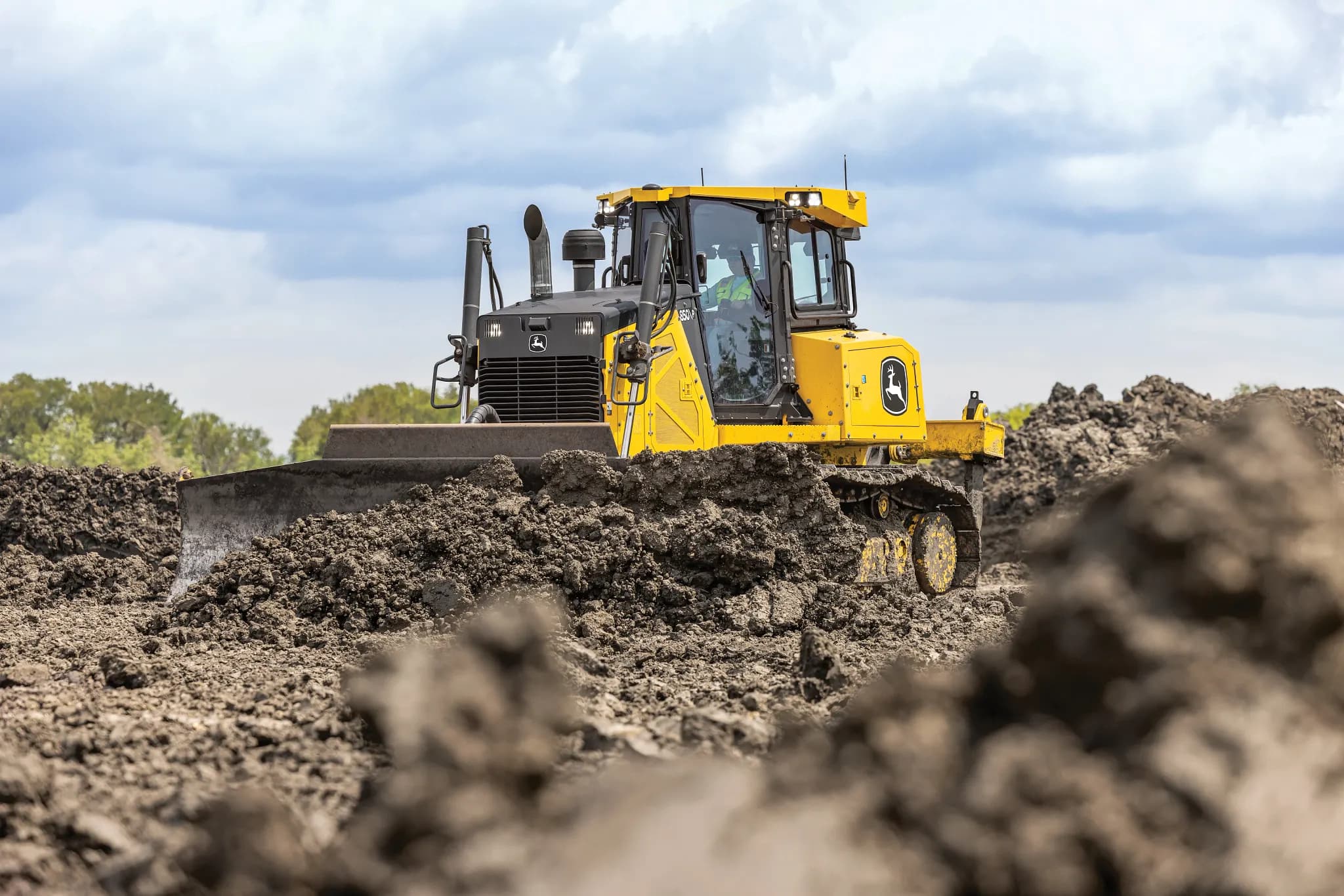

700 P-Tier Mid-Size Dozer

Name: 700 P-Tier Mid-Size Dozer
Brand: John Deere
SKU: JOHNDEERE-18A0T

رقم القطعة: JOHNDEERE-18A0T

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

700 P-Tier Mid-Size Dozer

المواصفات

Displacement	6.8L (414 cu. in.)
Diesel Exhaust Fluid (DEF) Tank	14.2 L (3.8 gal.)
Engine Oil With Filter	28 L (7.4 gal.)
Front	144 kg (317 lb.) 144 kg (317 lb.) 144 kg (317 lb.) 144 kg (317 lb.)
Rear	468 kg (1,032 lb.) 468 kg (1,032 lb.) 468 kg (1,032 lb.) 468 kg (1,032 lb.)
No derating is required up to	3050-m (10,000 ft.) altitude. Also available: winches, fair-leads, log arches, skidding grapples, trash packages, landfill protection
Model	700 P-Tier
Base Code	18A0T
Division	construction-equipment
Product Family	dozers
SAE Net Rated Power	101 kW (135 hp) at 1,800 rpm
System Relief Pressure	47 573 kPa (6,900 psi)
Forward and Reverse	8.9 km/h (5.5 mph)
Maximum (optional)	9.7 km/h (6.0 mph)
Pump Displacement	47.5 cc
Maximum Flow at Unloaded High Idle	95 L/m (25 gpm)
Track Gauge	1778 mm (70 in.) 1778 mm (70 in.) 1981 mm (78 in.) 1981 mm (78 in.)
Grouser Width	559 mm (22 in.) 559 mm (22 in.) 760 mm (30 in.) 760 mm (30 in.)
Track Length on Ground	2615 mm (103 in.) 2615 mm (103 in.) 2615 mm (103 in.) 2615 mm (103 in.)
Ground Contact Area	32 569 cm (5,048 sq. in.) 32 569 cm (5,048 sq. in.) 44 201 cm (6,851 sq. in.) 44 201 cm (6,851 sq. in.)
Ground Pressure	42.2 kPa (6.12 psi) 42.3 kPa (6.14 psi) 32.1 kPa (4.66 psi) 32.3 kPa (4.68 psi)
Track Pitch	191 mm (7.5 in.) 191 mm (7.5 in.) 191 mm (7.5 in.) 191 mm (7.5 in.)
Fuel Tank With Lockable Cap	262 L (69.2 gal.)
Cooling System With Recovery Tank	31.4 L (8.3 gal.)
Base Weight (with standard equipment,	14 016 kg (30,900 lb.) 14 049 kg (30,973 lb.) 14 489 kg (31,943 lb.) 14 555 kg (32,088 lb.)
fuel tank, and	79-kg [175 lb.] operator)
Cab With Pressurizer and Heater/	230 kg (507 lb.) 230 kg (507 lb.) 230 kg (507 lb.) 230 kg (507 lb.)
Retrieval Hitch	31 kg (68 lb.) 31 kg (68 lb.) 31 kg (68 lb.) 31 kg (68 lb.)
Drawbar, Extended Rigid	93 kg (205 lb.) 93 kg (205 lb.) 93 kg (205 lb.) 93 kg (205 lb.)
Winch	652 kg (1,437 lb.) 652 kg (1,437 lb.) 652 kg (1,437 lb.) 652 kg (1,437 lb.)
Fairlead, 4 Roller	85 kg (187 lb.) 85 kg (187 lb.) 85 kg (187 lb.) 85 kg (187 lb.)
Maximum Life Undercarriage	211 kg (465 lb.) 211 kg (465 lb.) 211 kg (465 lb.) 211 kg (465 lb.)
B Tread Depth With Single-Bar Grouser	56 mm (2.2 in.)
C Ground Clearance in Dirt	387 mm (15.2 in.)
D Overall Length	4906 mm (193 in.) (16 ft. 1 in.)
E Blade Lift Height	977 mm (38 in.) (3 ft. 2 in.)
F Blade Digging Depth	536 mm (21 in.)
H Blade Width	3077 mm (121 in.) (10 ft. 1 in.) 3231 mm (127 in.) (10 ft. 7 in.) 3383 mm (133 in.) (11 ft. 1 in.) 3688 mm (145 in.) (12 ft. 1 in.)
I Blade Height	1322 mm (52 in.) (4 ft. 4 in.) 1322 mm (52 in.) (4 ft. 4 in.) 1322 mm (52 in.) (4 ft. 4 in.) 1322 mm (52 in.) (4 ft. 4 in.)
SAE Capacity	3.4 m (4.4 cu. yd.) 3.5 m (4.6 cu. yd.) 3.6 m (4.8 cu. yd.) 3.9 m (5.1 cu. yd.)
Weight	811 kg (1,788 lb.) 844 kg (1,861 lb.) 875 kg (1,929 lb.) 941 kg (2,075 lb.)
J Blade Angle	25 deg. 25 deg. 25 deg. 25 deg.
K Overall Width With Blade Angled	2808 mm (111 in.) (9 ft. 3 in.) 2912 mm (115 in.) (9 ft. 7 in.) 3049 mm (120 in.) (10 ft. 0 in.) 3324 mm (131 in.) (10 ft. 11 in.)
L Blade Tilt	426 mm (17 in.) 447 mm (18 in.) 468 mm (18 in.) 510 mm (20 in.)
M Cut Reach	0 mm (0 in.) 64 mm (3 in.) 133 mm (5 in.) 270 mm (11 in.)
N Width Over Track	2338 mm (92 in.) (7 ft. 8 in.) 2338 mm (92 in.) (7 ft. 8 in.) 2741 mm (108 in.) (9 ft. 0 in.) 2741 mm (108 in.) (9 ft. 0 in.)
O Cast Reach	441 mm (17 in.) 510 mm (20 in.) 378 mm (15 in.) 515 mm (20 in.)
P Maximum Penetration	563 mm (22 in.)
Q Maximum Clearance Under Tip	584 mm (23 in.)
R Overall Length, Lowered Position	1494 mm (59 in.) (4 ft. 11 in.)
R Overall Length, Raised Position	1210 mm (48 in.) (4 ft. 0 in.)
S Overall Beam Width	1930 mm (76 in.) (6 ft. 4 in.)
T Slope Angle (full raise)	26 deg.
U Ripping Width	1673 mm (66 in.) (5 ft. 6 in.)
V Distance Between Shanks	806 mm (32 in.)
O V	559-mm (22 in.) moderate
Full-Length Rock Guards	155 kg (342 lb.) 155 kg (342 lb.) 155 kg (342 lb.) 155 kg (342 lb.)
health and configurable settings cylinder	6.8L engine that delivers the
of its proven	700L predecessor. A
Transmission/Hydraulic Reservoir	102 L (26.9 gal.)
ROPS Canopy	28 kg (62 lb.) 28 kg (62 lb.) 28 kg (62 lb.) 28 kg (62 lb.)
Cab With Air Conditioner	49 kg (108 lb.) 49 kg (108 lb.) 49 kg (108 lb.) 49 kg (108 lb.)
Screens – Full Enclosure, Cab With	219 kg (483 lb.) 219 kg (483 lb.) 219 kg (483 lb.) 219 kg (483 lb.)
Limb Risers (ROPS canopy and cab)	182 kg (401 lb.) 182 kg (401 lb.) 182 kg (401 lb.) 182 kg (401 lb.)
Heavy-Duty Grille	13 kg (29 lb.) 13 kg (29 lb.) 13 kg (29 lb.) 13 kg (29 lb.)
A Overall Height to Roof (includes	3047 mm (10 ft. 0 in.)
A Overall Height With Limb Risers	3138 mm (10 ft. 4 in.)
D Overall Length With Extended Drawbar	5078 mm (200 in.) (16 ft. 8 in.)
D Overall Length With Winch and	5474 mm (216 in.) (18 ft. 0 in.)
G Blade Cutting Edge Angle, Adjustable 51.2 to	58.3 deg. \|
C-Frame Assembly Weight	803 kg (1,770 lb.) 803 kg (1,770 lb.) 803 kg (1,770 lb.) 803 kg (1,770 lb.)
W Winch Length	798 mm (31 in.)
O Wet-sleeve cylinder liners SAE J1308 and ISO 3457) deg. C to	50 deg. C (–13 deg. F to 122
V Exhaust stack, chrome O Dual-path HST transmission to	40 deg. C (–40 deg. F to 104 deg. F)
cooled	130% presets or operator defined) V Hydraulic pump for direct-drive winch
a unit with ROPS, full fuel tank, and	79-kg (175 lb.) operator. Operator station ROPS and FOPS certified.
air suspension (canopy) O Retractable seat belt,	76 mm (3 in.) V Forestry limb risers (sweeps)
O Front, door, and rear wipers and V Counterweight, front,	144 kg (317 lb.)
