John Deere

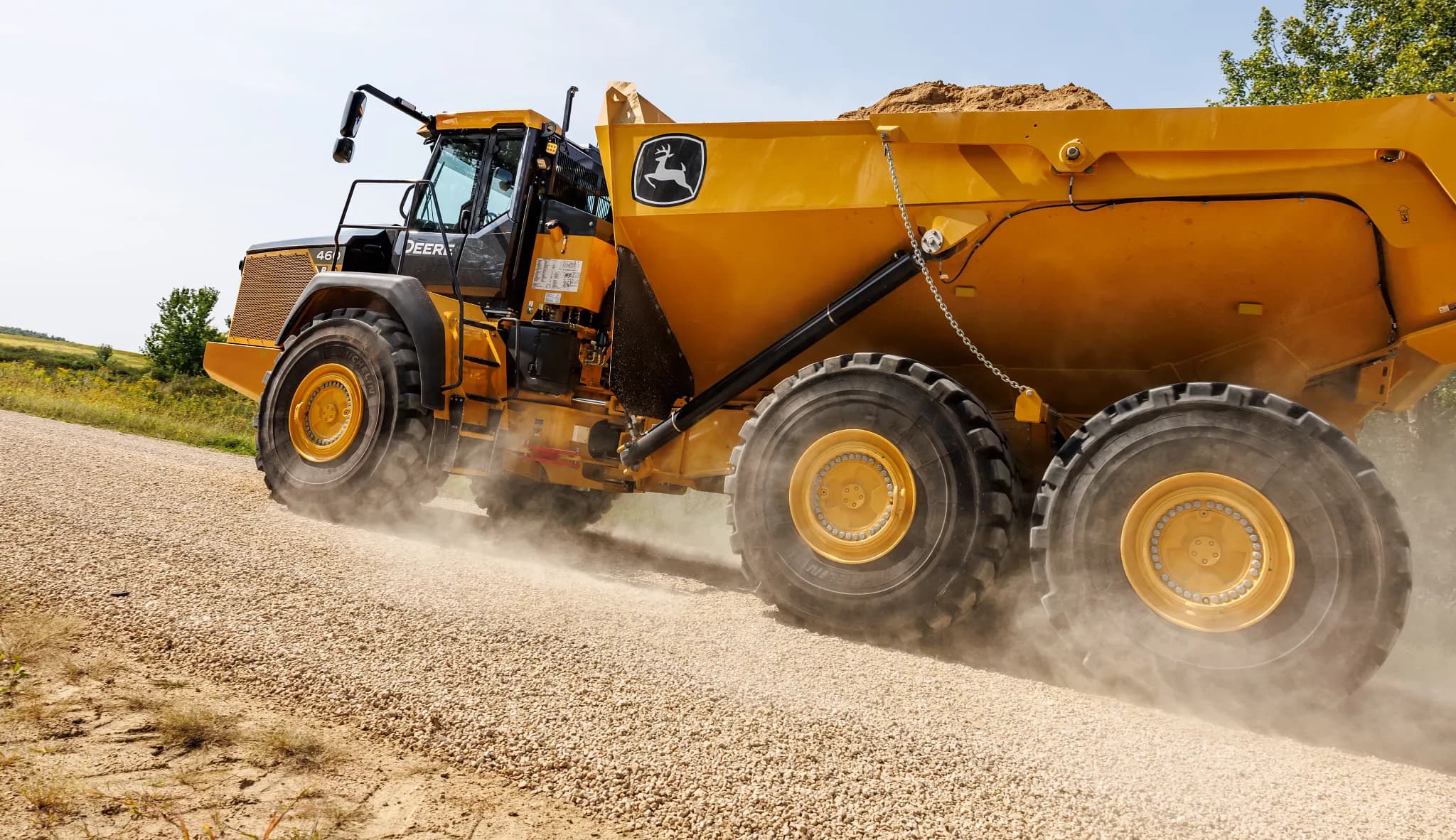

460 P-Tier Articulated Dump Truck

Name: 460 P-Tier Articulated Dump Truck
Brand: John Deere
SKU: JOHNDEERE-9481DW

رقم القطعة: JOHNDEERE-9481DW

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

460 P-Tier Articulated Dump Truck

المواصفات

Displacement	13.6 L (830 cu. in.) 13.6 L (830 cu. in.)
Net Peak Power (ISO 9249)	371 kW (498 hp) at 1,700 rpm 371 kW (498 hp) at 1,700 rpm
Net Peak Torque (ISO 9249)	2559 Nm (1,887 lb.-ft.) at 1,300 rpm 2559 Nm (1,887 lb.-ft.) at 1,200 rpm
Output Torque Split	32% front / 68% rear
Gear	1 6 km/h (4 mph) 6 km/h (4 mph) 6 km/h (4 mph) 6 km/h (4 mph)
Angle	45 deg. side to side
Struck	19.5 m (25.5 cu. yd.)
Heaped at 2:1 ISO 6483 Ratio	25.2 m (32.9 cu. yd.)
With Optional Tailgate	27.0 m (35.4 cu. yd.)
Maximum Dump Angle	70 deg.
Fuel Tank	609 L (161 gal.)
Engine Oil With Filter	61 L (16.1 gal.)
Engine Coolant	90 L (23.8 gal.)
Transmission Fluid	60 L (15.9 gal.)
Hydraulic Reservoir	176 L (46.5 gal.)
Front	62 L (16.4 gal.)
Mid	62 L (16.4 gal.)
Rear	68 L (18.0 gal.)
Middle	7465 kg (16,457 lb.) 24 980 kg (55,071 lb.) 7465 kg (16,457 lb.) 24 980 kg (55,071 lb.)
Total	31 475 kg (69,390 lb.) 73 295 kg (161,588 lb.) 31 165 kg (68,707 lb.) 72 985 kg (160,904 lb.)
Rated Payload	41 820 kg (92,197 lb.) 41 820 kg (92,197 lb.)
Dump-Body Liner (steel)	1389 kg (3,062 lb.) 1389 kg (3,062 lb.)
Tailgate	958 kg (2,112 lb.) 958 kg (2,112 lb.)
Inside	4.63 m (15 ft. 2 in.)
Outside	8.90 m (29 ft. 2 in.)
A Width With Mirrors in Operating	3.85 m (12 ft. 8 in.)
B Length	10.64 m (34 ft. 11 in.)
D Tread Width	2.66 m (8 ft. 9 in.) 2.70 m (8 ft. 10 in.)
E Width Over Tires	3.41 m (11 ft. 2 in.) 3.58 m (11 ft. 9 in.)
F Width Over Fenders	3.44 m (11 ft. 3 in.) 3.65 m (12 ft. 0 in.)
G Ground Clearance	0.54 m (21 in.) 0.54 m (21 in.)
H Dump Body Height, Dump Position	7.20 m (23 ft. 7 in.)
I Dump Body Side Rail Height	3.33 m (10 ft. 11 in.)
J Dump Body Dump Lip Height,	3.89 m (12 ft. 9 in.)
K Dump Body Ground Clearance, Dump	1.13 m (3 ft. 8 in.)
L Dump Body Length	5.86 m (19 ft. 3 in.)
M Rear Axle Centerline to Rear of Dump	1.21 m (4 ft. 0 in.)
N Mid Axle to Rear Axle Centerline	1.96 m (6 ft. 5 in.)
O Front Axle to Mid Axle Centerline	4.63 m (15 ft. 2 in.)
P Front Axle Centerline to Front of	2.84 m (9 ft. 4 in.)
Q Approach Angle	26 deg.
R Maximum Dump Angle	70 deg.
Overall Height (suspension lowered	3.89 m (12 ft. 9 in.)
Tailgate Installed	3.66 m (12 ft. 0 in.)
No derating is required up to	3050-m (10,000 ft.) altitude. Specifications and design subject to change without notice. Wherever applicable, specifications
Model	460 P-Tier
Base Code	9481DW
Division	construction-equipment
Product Family	articulated-dump-trucks
Diesel Exhaust Fluid (DEF) Tank (EPA	48 L (13 gal.)
875/65R29 Tires	1286 kg (2,835 lb.) 1286 kg (2,835 lb.)
C Height With Beacon in Stored Position	3.89 m (12 ft. 9 in.)
Dump Body	3.46 m (11 ft. 4 in.)
O Orange	76-mm (3 in.) retractable O Electric horn V Tailgate
Deluxe	178-mm (7 in.) color LCD tip cylinders
radial earthmover tires, full fuel tank, and	79-kg (175 lb.) operator. Capacity and loaded weights are based on 1640-kg/m (2,759 lb./cu. yd.) material.
