John Deere

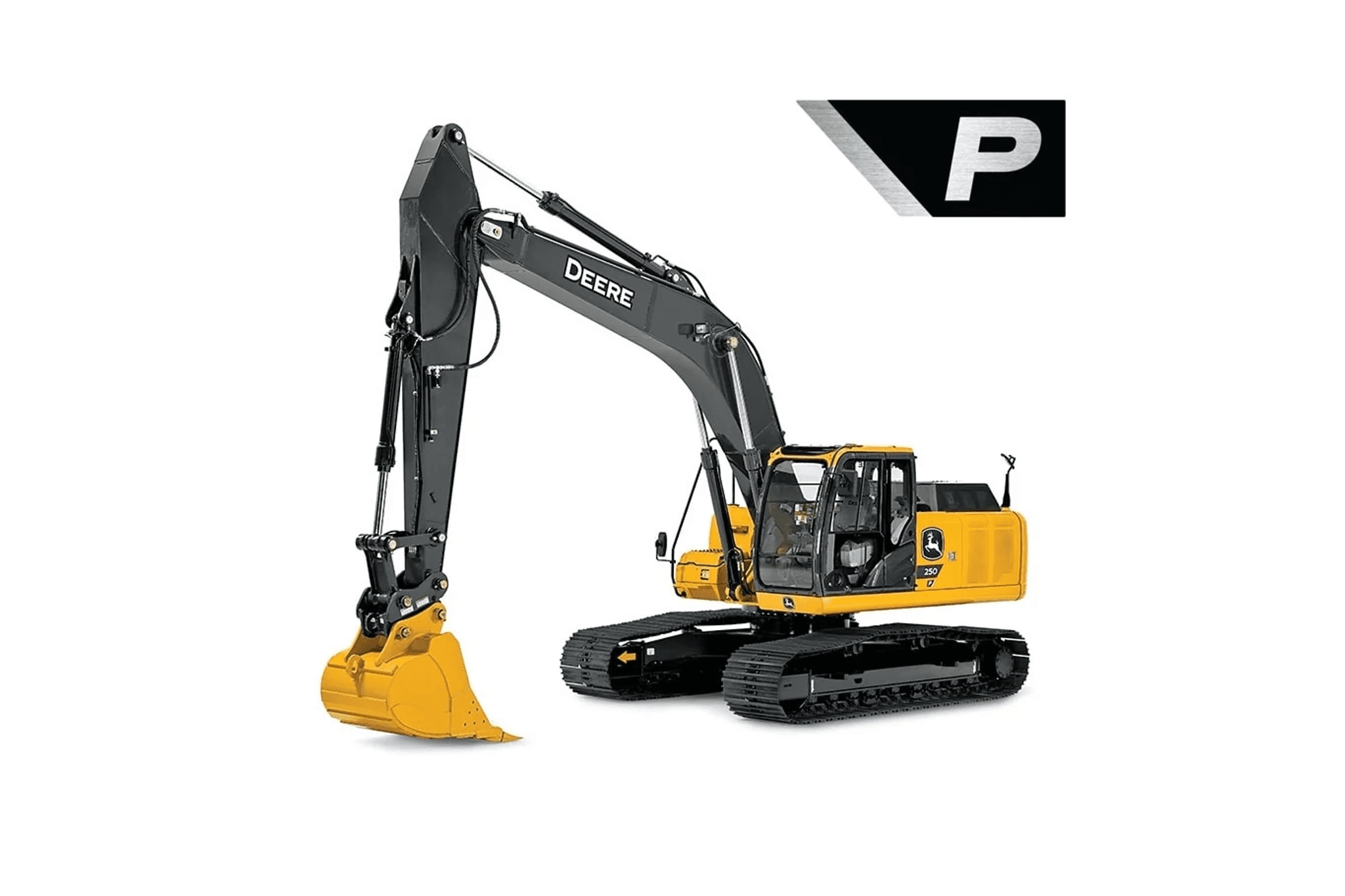

250 P-Tier Mid-Size Excavator

Name: 250 P-Tier Mid-Size Excavator
Brand: John Deere
SKU: JOHNDEERE-04F0FF

رقم القطعة: JOHNDEERE-04F0FF

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

250 P-Tier Mid-Size Excavator

المواصفات

Displacement	6.8 L (415 cu. in.)
Fuel Tank	500 L (132 gal.) Hydraulic System 240 L (63 gal.)
Diesel Exhaust Fluid (DEF) Tank	35 L (9.3 gal.) Swing Drive 7 L (7.5 qt.)
Engine Oil With Filter	19.5 L (5.2 gal.) Propel (each) 6.2 L (6.5 qt.)
No derating is required up to	3050-m (10,000 ft.) altitude. Specifications and design subject to change without notice. Wherever applicable, specifications
Model	250 P-Tier
Base Code	04F0FF
Division	construction-equipment
Product Family	excavators
(8 ft.	0 in.) Flat Bottom
Net Rated Power (ISO 9249)	140 kW (188 hp) at 2,100 rpm
Off-Level Capacity	70% (35 deg.)
Low	3.3 km/h (2.1 mph)
High	5.5 km/h (3.4 mph)
Drawbar Pull	21 900 kg (48,300 lb.)
Maximum Rated Flow	224 L/m (59.2 gpm) x 2
Pressure Setting	3900 kPa (566 psi)
Implement	34 300 kPa (4,975 psi)
Travel	35 000 kPa (5,076 psi)
Swing	32 400 kPa (4,830 psi)
Power Boost	38 000 kPa (5,511 psi)
Boom (2)	125 mm (4.9 in.) 90 mm (3.5 in.) 1390 mm (54.7 in.)
Arm (1)	140 mm (5.5 in.) 100 mm (3.9 in.) 1610 mm (63.4 in.)
Bucket (1)	130 mm (5.1 in.) 90 mm (3.5 in.) 1075 mm (42.3 in.)
700 mm (28 in.)	46.7 kPa (6.78 psi)
Speed	13.5 rpm
Torque	77 500 Nm (57,150 lb.-ft.)
Cooling System	23 L (6 gal.) Gearbox
Hydraulic Tank	147.6 L (39 gal.) Pump Drive 1.1 L (1.2 qt.)
With full fuel tank;	79-kg (175 lb.) operator; 1.06-m (1.38 cu. yd.), 1219-mm (48 in.), 1107-kg (2,440 lb.) bucket; 3.61-m (11 ft. 10 in.) arm; 5112-kg (11,270 lb.) counterweight;
1-Piece Boom (with arm cylinder)	2210 kg (4,872 lb.)
Boom-Lift Cylinders (2), Total Weight	434 kg (958 lb.)
Arm Length	2.96 m (9 ft. 9 in.) 3.61 m (11 ft. 10 in.)
A Maximum Reach	10.29 m (33 ft. 9 in.) 10.91 m (35 ft. 10 in.)
B Maximum Digging Depth	6.96 m (22 ft. 10 in.) 7.61 m (25 ft. 0 in.)
B Maximum Digging Depth at	2.44-m 6.75 m (22 ft. 2 in.) 7.44 m (24 ft. 5 in.)
C Maximum Cutting Height	10.16 m (33 ft. 4 in.) 10.56 m (34 ft. 8 in.)
D Maximum Dumping Height	7.20 m (23 ft. 7 in.) 7.58 m (24 ft. 10 in.)
E Minimum Swing Radius	3.44 m (11 ft. 3 in.) 3.43 m (11 ft. 3 in.)
F Maximum Vertical Wall	6.03 m (19 ft. 9 in.) 6.74 m (22 ft. 1 in.)
A Overall Length	10.35 m (33 ft. 11 in.) 10.41 m (34 ft. 2 in.)
B Overall Height	3.07 m (10 ft. 1 in.) 3.14 m (10 ft. 4 in.)
D Distance Between Idler/Sprocket Centerline	3.84 m (12 ft. 7 in.) 3.84 m (12 ft. 7 in.)
E Undercarriage Length	4.64 m (15 ft. 3 in.) 4.64 m (15 ft. 3 in.)
F Counterweight Clearance	1.09 m (3 ft. 7 in.) 1.09 m (3 ft. 7 in.)
G Upperstructure Width	2.89 m (9 ft. 6 in.) 2.89 m (9 ft. 6 in.)
H Cab Height	3.01 m (9 ft. 11 in.) 3.01 m (9 ft. 11 in.)
I Track Width With Triple Semi-Grouser Shoes	700 mm (28 in.) / 800 mm (32 in.) 700 mm (28 in.) / 800 mm (32 in.)
J Gauge Width	2.59 m (8 ft. 6 in.) 2.59 m (8 ft. 6 in.)
K Ground Clearance	0.46 m (18 in.) 0.46 m (18 in.)
1.5 m (5 ft.)	3.0 m (10 ft.) 4.5 m (15 ft.) 6.0 m (20 ft.) 7.5 m (25 ft.) 9.0 m (30 ft.)
With	2.96-m (9 ft. 9 in.) arm and 700-mm (28 in.) shoes, less bucket
Deere	2.96-m (9 ft. 9 in.) Arm
l Seat belt,	76 mm (3 in.), non-retractable
s Arm,	2.96 m (9 ft. 9 in.)
s Triple semi-grouser shoes,	700 mm (28 in.)
triple semi-grouser shoes;	800 mm (32 in.)
Operating Weight	27 500 kg (60,600 lb.)
2,000	2,200 2,600 3,200 lb./cu. yd. 1,600 3,400 1,200 1,400 1,800 2,400 2,800 3,000 3,600
Arm,	3.61 m (11 ft. 10 in.)
800 mm (32 in.)	40.9 kPa (5.93 psi)
Manufacturer and Model John Deere PowerTech™ PVS	6.8 L
CONSERVE FUEL BY UP TO	5%
and	800-mm (32 in.) triple semi-grouser shoes
2.96 m (9 ft.	9 in.) 1296 kg (2,858 lb.)
3.61 m (11 ft.	10 in.)
1.06-m³ (1.38 cu. yd.),	1065-mm (42 in.) 997 kg (2,197 lb.)
Counterweight, Standard	5112 kg (11,270 lb.)
Lifting Capacity Over Front at Ground Level	8455 kg (18,639 lb.) 8381 kg (18,478 lb.)
6.1-m (20 ft.	0 in. ) Reach (with power boost)
10.11 m (33 ft.	2 in.) 10.75 m (35 ft. 3 in.)
C Tail-Swing Radius	3.14 m (10 ft. 4 in.) 3.14 m (10 ft. 4 in.)
Deluxe suspension cloth seat with	100-mm (4 in.) for details)
(11,270 lb.) counterweight,	800-mm (32 in.) triple semi-grouser shoes, full fuel tank, and 79-kg (175 lb.) operator.
