John Deere

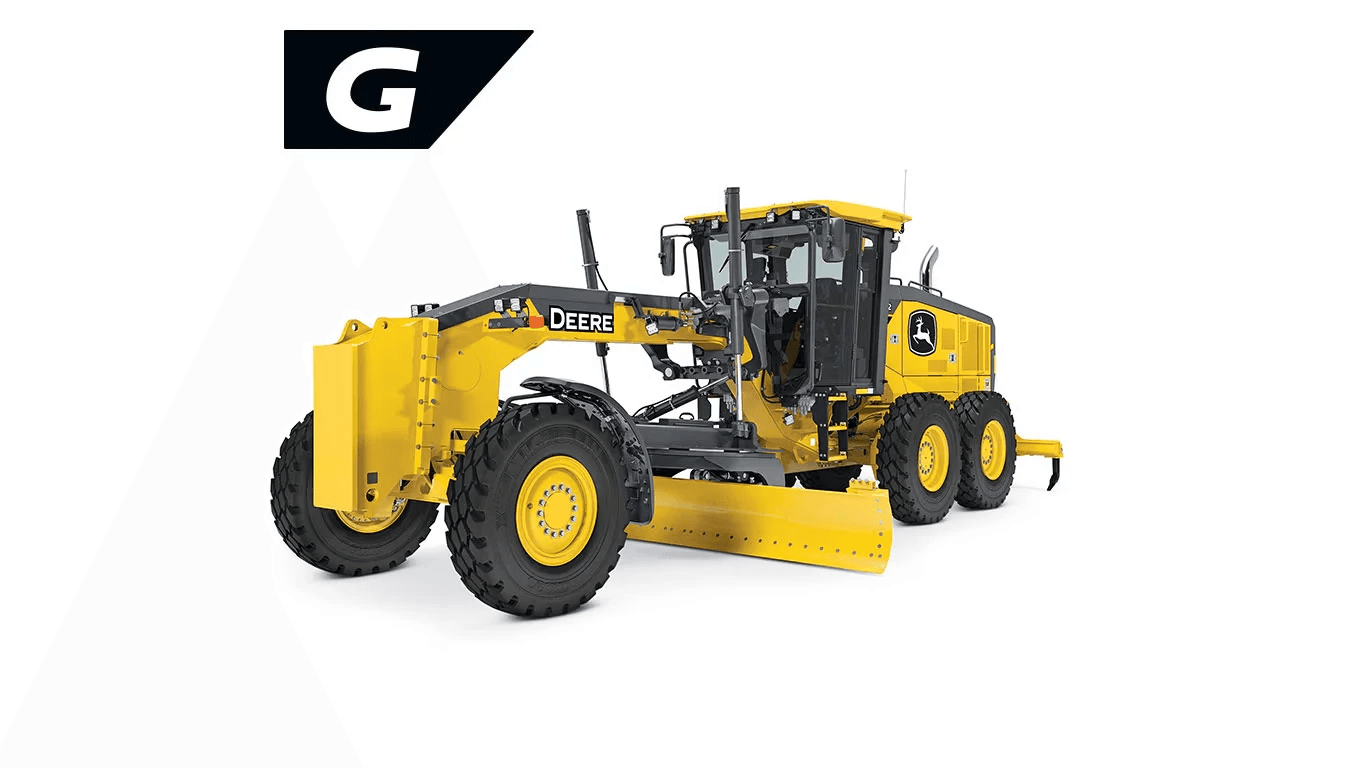

622 G-Tier Motor Grader

Name: 622 G-Tier Motor Grader
Brand: John Deere
SKU: JOHNDEERE-8510BZ

رقم القطعة: JOHNDEERE-8510BZ

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

622 G-Tier Motor Grader

المواصفات

Displacement	6.8L (414 cu. in.) 6.8L (414 cu. in.) 6.8L (414 cu. in.)
Gear	1 127 kW (170 hp) 127 kW (170 hp) 127 kW (170 hp)
Fuel Tank	397.0 L (105 gal.) 303.0 L (80 gal.)
Diesel Exhaust Fluid (DEF) Tank	22.5 L (6 gal.) —
Engine Oil With Filter	31.5 L (8.3 gal.) 26.0 L (6.9 gal.)
Transmission Fluid	28.4 L (7.5 gal.) 28.4 L (7.5 gal.)
Hydraulic Reservoir	60.5 L (16 gal.) 53.0 L (14 gal.)
Front	4802 kg (10,587 lb.) 4886 kg (10,771 lb.)*
Rear	11 999 kg (26,453 lb.) 11 270 kg (24,846 lb.)*
Total	16 801 kg (37,040 lb.) 16 156 kg (35,617 lb.)*
Model	622 G-Tier
Base Code	8510BZ
Division	construction-equipment
Product Family	motor-graders
Net Peak Torque	1035 Nm (763 lb.-ft.) 915 Nm (675 lb.-ft.) 831 Nm (613 lb.-ft.)
Pump Displacement	90 cm (5.5 cu. in.)
Cooling System	51.0 L (13.5 gal.) 44.0 L (11.6 gal.)
With full fuel tank;	3.66-m x 610-mm x 22-mm (12 ft. x 24 in. x 7/8 in.) Moldboard With
With	152-mm x 16-mm (6 in. x 5/8 in.) Cutting Edge Front Lift Group (Balderson-style) 763 kg (1,682 lb.)
Width	152 mm (6 in.)
Manufacturer and Model John Deere PowerTech™ PSS	6.8L John Deere PowerTech™ Plus 6.8L John Deere PowerTech™ 6.8L
Standard	0 kg (0 lb.) Coolant Heater 4 kg (9 lb.)
and	16-mm (5/8 in.) Hardware Tires
Net Torque Rise	38% 30% 44%
Maximum Travel Speeds No tire slip at	2,180 rpm, 14.0-R24 tires Maximum Travel Speeds (continued) No tire slip at 2,180 rpm, 14.0-R24 tires
Oscillation (total)	32 deg.
Wheel Lean Angle (each direction)	20 deg.
Turning Radius (front steer and	7.21 m (284 in.) (23 ft. 8 in.)
Articulation (both right and left)	22 deg.
Maximum Pump Flow	212 L/min. (56 gpm)
Maximum System Pressure	18 961 kPa (2,750 psi)
(24 in.) 16 PR G2, Bias tires; and	3.66-m x 610-mm x 22-mm (12 ft. x 24 in. x 7/8 in.) high-strength, wear-resistant moldboard with 152-mm x 16-mm (6 in. x 5/8 in.) Dura-Max
Lift Above Ground	490 mm (19.3 in.)
Blade Side Shift (right or left)	683 mm (26.9 in.)
Forward	42 deg.
Back	5 deg.
Shoulder Reach Outside Wheels (frame	2083 mm (82.0 in.) (6 ft. 10 in.)
Bank Cut Angle (right or left)	90 deg.
At Maximum Operating Weight	20 412 kg (45,000 lb.)
Width (minimum)	307 mm (12.1 in.)
Height (minimum)	307 mm (12.1 in.)
Side	16 mm (0.63 in.)
Top and Bottom Plate	23 mm (0.89 in.)
Circle Diameter	1524 mm (60 in.) 1524 mm (60 in.)
Rotation	360 deg. 360 deg.
Circle Side Shift (right and left)	787 mm (31 in.) 787 mm (31 in.)
Base Length	3.66 m (144 in.) (12 ft. 0 in.) 4.27 m (168 in.) (14 ft. 0 in.)
Height (measured along arc, including	610 mm (24 in.) 610 mm (24 in.)
Thickness	22 mm (0.88 in.) 22 mm (0.88 in.)
Width of Cut	1.20 m (48 in.) (4 ft. 0 in.) 1.19 m (46.7 in.) (3 ft. 11 in.)
Maximum Depth	335 mm (13.2 in.) 325 mm (12.8 in.)
Spacing	146 mm (5.75 in.) 117 mm (4.6 in.)
Size	25 x 76 mm (1 x 3 in.) 25 x 76 mm (1 x 3 in.)
Above Ground (top of tube)	1864 mm (73.4 in.)
Range	988 mm (38.9 in.)
Shank Size	61.5 x 133 mm (2.42 x 5.25 in.) 25 x 76 mm (1 x 3 in.)
14R24 on	254-mm (10 in.) Rim 17.5R25 on 356-mm (14 in.) Rim
Wheel Tread on Ground	2.08 m (82.0 in.) 2.16 m (85.0 in.)
Ground Clearance (front axle)	587 mm (23.1 in.) 587 mm (23.1 in.)
Differential Housing	38.0 L (10 gal.) 38.0 L (10 gal.)
Tandem Housings (each)	74.0 L (19.5 gal.) 74.0 L (19.5 gal.)
Circle Gearbox	5.7 L (1.5 gal.) 5.7 L (1.5 gal.)
152-mm x	16-mm (6 in. x 5/8 in.) Cutting Edge, 14-24 Bias L2 Tires, and 79-kg 175 lb.) Operator
Maximum Operating Weight	22 680 kg (50,000 lb.) 22 680 kg (50,000 lb.)
3.66 m x	610 mm x 22 mm (12 ft. x 24 in. x 7/8 in.) 0 kg (0 lb.) Mid-Mount With Teeth (11) 1481 kg (3,265 lb.)
4.27 m x	610 mm x 22 mm (14 ft. x 24 in. x 7/8 in.) 105 kg (231 lb.) 14.00-R24, Radial, G2/L2 Snow 40.8 kg (90 lb.)
Extensions,	610 mm (2 ft.) (right or left) 356 mm x 635 mm (14 in. x 25 in.) 85.3 kg (188 lb.)
For Use With	610-mm (24 in.) Moldboards 116 kg (255 lb.)
For	152-mm (6 in.) Cutting Edge 19.5 kg (43 lb.) Rear 158 kg (348 lb.)
Circle-Drive Slip Clutch	9 kg (20 lb.)
Premium	289 kg (638 lb.) Quick Service 11 kg (24 lb.)
Moldboard Impact-Absorption System	43 kg (95 lb.) Secondary Steering 26 kg (58 lb.)
Ripper/S carifier, Rear Mounted With Hitch and Ripper	1139 kg (2,510 lb.) Fire Extinguisher 14.5 kg (32 lb.)
Scarifier Shanks With Teeth (9 for rear ripper/scarifier)	68 kg (150 lb.) 10 Halogen Lights 4.5 kg (10 lb.)
Rear Counterweight With Integral Rear Hitch	727 kg (1,603 lb.) 18 Halogen Lights 8 kg (18 lb.)
Rear Hitch	54.4 kg (120 lb.) 18 LED Lights 7 kg (16 lb.)
Push Block, Front	907 kg (2,000 lb.) High-Front Light Bar for Snowplowing 20 kg (44 lb.)
Front Mount With Teeth (5)	831 kg (1,833 lb.) Hydraulics for Front-Mounted Equipment 9 kg (19 lb.)
A Height to Top of Cab	3.18 m (10 ft. 5 in.) H Overall Length With Scarifier 9.69 m (31 ft. 9 in.)
B Height to Top of Exhaust	3.10 m (10 ft. 2 in.) I Overall Length With Push Block and Ripper 9.99 m (32 ft. 9 in.)
C Height to Top of Blade-Lift Cylinders	3.05 m (10 ft. 0 in.) I Overall Length With Scarifier and Ripper 10.59 m (34 ft. 9 in.)
D Tandem Axle Spacing	1.54 m (5 ft. 1 in.) Overall Length With Front-Mounted Blade and Ripper 10.60 m (34 ft. 9 in.)
E Blade Base	2.57 m (8 ft. 5 in.) J Overall Width With 14.00-R24 Tires* 2.49 m (8 ft. 2 in.)
F Wheelbase	6.16 m (20 ft. 3 in.) J Overall Width With 17.5-R25 Tires* 2.64 m (8 ft. 8 in.)
G Overall Length	8.89 m (29 ft. 2 in.) *Also see Tires/Wheels on page 6.
17.5-R25, Radial, G3/L3 General Purpose	141.5 kg (312 lb.)
Operating Speeds	0.4–8.0 km/h (0.25–5.0 mph)
Hydrostatic Pumps (2 each)	53 cm (3.2 cu. in.)
Wheel Motors	57 cm (3.5 cu. in.)
Overlay End Bits, Reversible (one pair) Front	99 kg (218 lb.)
Premium Air-Suspension, Heated Seat With Adjustable	13 kg (28 lb.)
Scarifier Auxiliary Hydraulic Control Valve Section and Controls	7 kg (15 lb.)
