John Deere

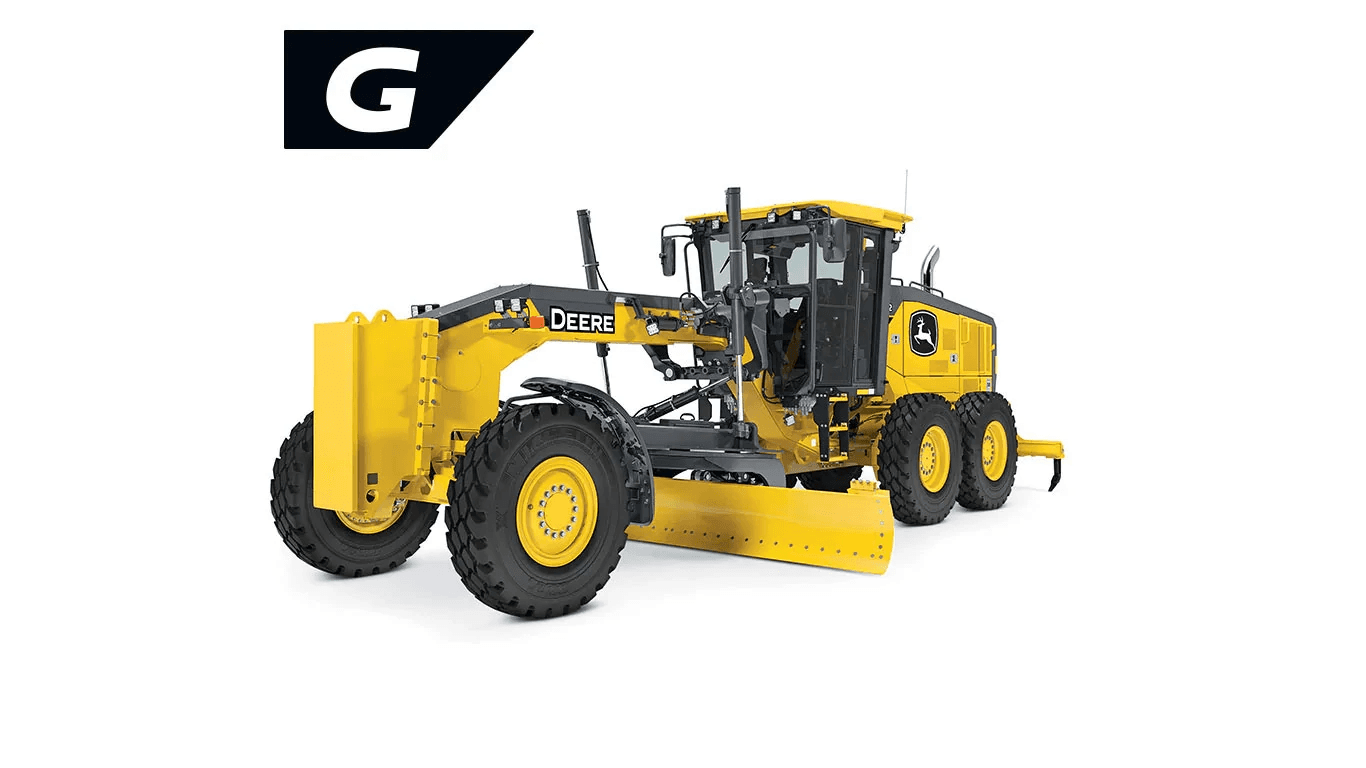

672 G-Tier Motor Grader

Name: 672 G-Tier Motor Grader
Brand: John Deere
SKU: JOHNDEERE-8410BZ

رقم القطعة: JOHNDEERE-8410BZ

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

672 G-Tier Motor Grader

المواصفات

Displacement	9.0L (548 cu. in.) 9.0L (548 cu. in.) 9.0L (548 cu. in.)
Gear	1 149 kW (200 hp) 149 kW (200 hp) 149 kW (200 hp)
Fuel Tank	397.0 L (105 gal.) 416.5 L (110 gal.)
Diesel Exhaust Fluid (DEF) Tank	22.5 L (6 gal.) —
Engine Oil With Filter	28.4 L (7.5 gal.) 28.0 L (7.4 gal.)
Transmission Fluid	28.4 L (7.5 gal.) 28.4 L (7.5 gal.)
Hydraulic Reservoir	60.5 L (16 gal.) 53.0 L (14 gal.)
Front	4842 kg (10,675 lb.) 4840 kg (10,670 lb.)
Rear	12 296 kg (27,108 lb.) 11 864 kg (26,156 lb.)
Total	17 138 kg (37,783 lb.) 16 704 kg (36,826 lb.)
Model	672 G-Tier
Base Code	8410BZ
Division	construction-equipment
Product Family	motor-graders
Net Peak Torque	1292 Nm (953 lb.-ft.) 1250 Nm (922 lb.-ft.) 1250 Nm (922 lb.-ft.)
Pump Displacement	90 cm (5.5 cu. in.)
Cooling System	55.0 L (14.5 gal.) 48.5 L (12.8 gal.)
With full fuel tank;	3.66-m x 610-mm x 22-mm (12 ft. x 24 in. x 7/8 in.) Moldboard With
With	152-mm x 16-mm (6 in. x 5/8 in.) Cutting Edge Front Mount With Teeth (5) 831 kg (1,833 lb.)
Width	152 mm (6 in.)
Manufacturer and Model John Deere PowerTech™ PSS	9.0L John Deere PowerTech™ Plus 9.0L John Deere PowerTech™ 9.0L
Standard	0 kg (0 lb.)
and	16-mm (5/8 in.) Hardware Mid-Mount With Teeth (11) 1481 kg (3,265 lb.)
Net Torque Rise	50% 51% 51%
Maximum Travel Speeds No tire slip at	2,180 rpm, 14.0-R24 tires Maximum Travel Speeds (continued) No tire slip at 2,180 rpm, 14.0-R24 tires
Oscillation (total)	32 deg.
Wheel Lean Angle (each direction)	20 deg.
Turning Radius (front steer and	7.21 m (284 in.) (23 ft. 8 in.)
Articulation (both right and left)	22 deg.
Maximum Pump Flow	212 L/min. (56 gpm)
Maximum System Pressure	18 961 kPa (2,750 psi)
(24 in.) 16 PR G2, Bias tires; and	3.66-m x 610-mm x 22-mm (12 ft. x 24 in. x 7/8 in.) high-strength, wear-resistant moldboard with 152-mm x 16-mm (6 in. x 5/8 in.) Dura-Max
Lift Above Ground	490 mm (19.3 in.)
Blade Side Shift (right or left)	683 mm (26.9 in.)
Forward	42 deg.
Back	5 deg.
Shoulder Reach Outside Wheels (frame	2083 mm (82.0 in.) (6 ft. 10 in.)
Bank Cut Angle (right or left)	90 deg.
At Maximum Operating Weight	22 453 kg (49,500 lb.)
Width (minimum)	307 mm (12.1 in.)
Height (minimum)	307 mm (12.1 in.)
Side	16 mm (0.63 in.)
Top and Bottom Plate	23 mm (0.89 in.)
Circle Diameter	1524 mm (60 in.) 1524 mm (60 in.)
Rotation	360 deg. 360 deg.
Circle Side Shift (right and left)	787 mm (31 in.) 787 mm (31 in.)
Base Length	3.66 m (144 in.) (12 ft. 0 in.) / 4.27 m (168 in.) (14 ft. 0 in.) 4.27 m (168 in.) (14 ft. 0 in.)
Height (measured along arc, including	610 mm (24 in.) 686 mm (27 in.)
Thickness	22 mm (0.88 in.) 25 mm (1 in.)
Width of Cut	1.20 m (48 in.) (4 ft. 0 in.) 1.19 m (46.7 in.) (3 ft. 11 in.)
Maximum Depth	335 mm (13.2 in.) 325 mm (12.8 in.)
Spacing	146 mm (5.75 in.) 117 mm (4.6 in.)
Size	25 x 76 mm (1 x 3 in.) 25 x 76 mm (1 x 3 in.)
Above Ground (top of tube)	1864 mm (73.4 in.)
Range	988 mm (38.9 in.)
Shank Size	61.5 x 133 mm (2.42 x 5.25 in.) 25 x 76 mm (1 x 3 in.)
14R24 on	254-mm (10 in.) Rim 17.5R25 on 356-mm (14 in.) Rim
Wheel Tread on Ground	2.08 m (82.0 in.) 2.16 m (85.0 in.)
Ground Clearance (front axle)	587 mm (23.1 in.) 587 mm (23.1 in.)
Differential Housing	38.0 L (10 gal.) 38.0 L (10 gal.)
Tandem Housings (each)	74.0 L (19.5 gal.) 74.0 L (19.5 gal.)
Circle Gearbox	5.7 L (1.5 gal.) 5.7 L (1.5 gal.)
152-mm x	16-mm (6 in. x 5/8 in.) Cutting Edges, 14R24 L2 Tires, and 79-kg (175 lb.) Operator
Maximum Operating Weight	24 948 kg (55,000 lb.) 24 948 kg (55,000 lb.)
3.66 m x	610 mm x 22 mm (12 ft. x 24 in. x 7/8 in.) 0 kg (0 lb.) Scarifier
4.27 m x	610 mm x 22 mm (14 ft. x 24 in. x 7/8 in.) 105 kg (231 lb.)
Extensions,	610 mm (2 ft.) (right or left)
For Use With	610-mm (24 in.) Moldboards 116 kg (255 lb.)
356 mm x	635 mm (14 in. x 25 in.) 85.3 kg (188 lb.)
For	152-mm (6 in.) Cutting Edge 19.5 kg (43 lb.)
Circle-Drive Slip Clutch	9 kg (20 lb.)
Opening Front and Side Windows	14.5 kg (32 lb.)
Premium	289 kg (638 lb.)
Moldboard Impact-Absorption System	43 kg (95 lb.)
Scarifier Shanks With Teeth (9 for rear ripper/scarifier)	68 kg (150 lb.) 18 LED Lights 7 kg (16 lb.)
Rear Counterweight With Integral Rear Hitch	727 kg (1,603 lb.) Auxiliary Hydraulic Control Valve Section and Controls 7 kg (15 lb.)
Rear Hitch	54.4 kg (120 lb.)
A Height to Top of Cab	3.18 m (10 ft. 5 in.) H Overall Length With Scarifier 9.69 m (31 ft. 9 in.)
B Height to Top of Exhaust	3.10 m (10 ft. 2 in.) I Overall Length With Push Block and Ripper 9.99 m (32 ft. 9 in.)
C Height to Top of Blade-Lift Cylinders	3.05 m (10 ft. 0 in.) I Overall Length With Scarifier and Ripper 10.59 m (34 ft. 9 in.)
D Tandem Axle Spacing	1.54 m (5 ft. 1 in.)
E Blade Base	2.57 m (8 ft. 5 in.) J Overall Width With 14.00-R24 Tires* 2.49 m (8 ft. 2 in.)
F Wheelbase	6.16 m (20 ft. 3 in.) J Overall Width With 17.5-R25 Tires* 2.64 m (8 ft. 8 in.)
G Overall Length	8.89 m (29 ft. 2 in.) *Also see Tires/Wheels on page 6.
14.00-R24, Radial, G2/L2 General Purpose	0 kg (0 lb.)
17.5-R25, Radial, L2 General Purpose	51.7 kg (114 lb.)
17.5-R25, Radial, G3/L3 General Purpose	141.5 kg (312 lb.)
254 mm x	610 mm (10 in. x 24 in.) 0 kg (0 lb.)
Coolant Heater	4 kg (9 lb.)
Secondary Steering	26 kg (58 lb.)
Fire Extinguisher	14.5 kg (32 lb.)
10 Halogen Lights	4.5 kg (10 lb.)
18 Halogen Lights	8 kg (18 lb.)
Front Lift Group (Balderson-style)	763 kg (1,682 lb.)
Hydraulics for Front-Mounted Equipment	9 kg (19 lb.)
Operating Speeds	0.4–8.0 km/h (0.25–5.0 mph)
Hydrostatic Pumps (2 each)	53 cm (3.2 cu. in.)
Wheel Motors	57 cm (3.5 cu. in.)
Premium Air-Suspension, Heated Seat With Adjustable	13 kg (28 lb.)
14.00-R24, Radial, G2/L2 Snow	40.8 kg (90 lb.)
17.5-R25, Radial, G2/L2 Snow	95.3 kg (210 lb.)
Heavy-Duty Dual-Input Circle-Drive Gearbox	14 kg (31 lb.)
Ripper Shanks and Teeth (2)	63 kg (139 lb.) High-Front Light Bar for Snowplowing 20 kg (44 lb.)
Quick Service	11 kg (24 lb.)
Ripper/Scarifier, Rear Mounted With Hitch and Ripper	1139 kg (2,510 lb.)
I Overall Length With Front-Mounted Blade and Ripper	10.60 m (34 ft. 9 in.)
