John Deere

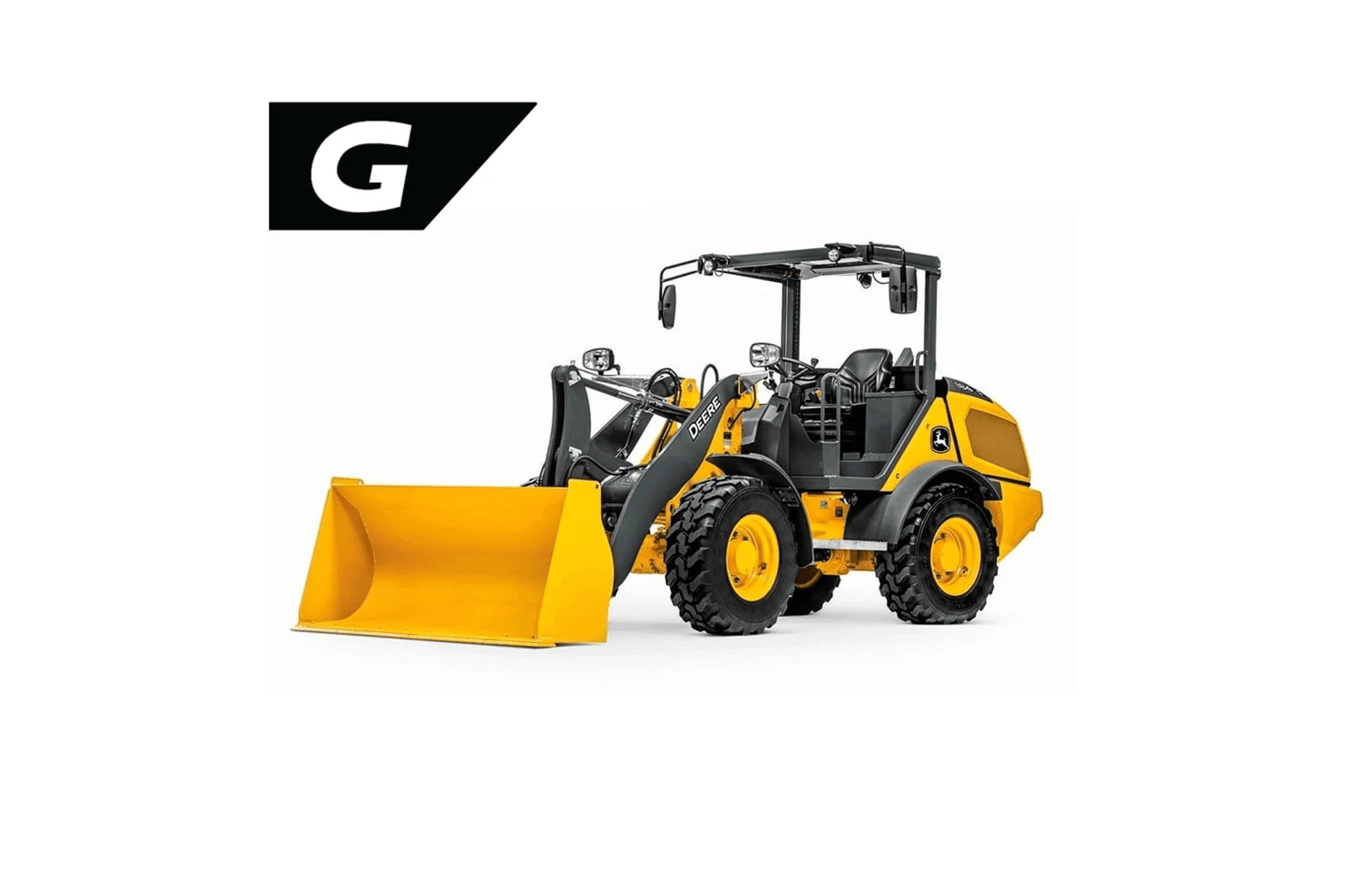

184 G-Tier Compact Wheel Loader

Name: 184 G-Tier Compact Wheel Loader
Brand: John Deere
SKU: JOHNDEERE-01A0T

رقم القطعة: JOHNDEERE-01A0T

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

184 G-Tier Compact Wheel Loader

المواصفات

Displacement	2.2 L (134 cu. in.)
Gear	1 6.0 km/h (3.7 mph)
Engine Oil With Filter	7.4 L (7.8 qt.)
Front	5.5 L (5.8 qt.) With Filter
Rear	5.5 L (5.8 qt.) HST Motor Gearbox 0.5 L (0.5 qt.)
No derating is required up to	3000-m (10,000 ft.) altitude. Specifications and design subject to change without notice. Wherever applicable, specifications
Model	184 G-Tier
Base Code	01A0T
Division	construction-equipment
Product Family	wheel-loaders
K Ground Clearance	292 mm (12 in.) 292 mm (12 in.) 292 mm (12 in.)
With	0.7-m (0.9 cu. yd.) General-Purpose Bucket 4840 kg (10,670 lb.) 4820 kg (10,626 lb.)
A Height to Top of Cab	2455 mm (8 ft. 1 in.) 2455 mm (8 ft. 1 in.) 2455 mm (8 ft. 1 in.)
B Height to Top of Exhaust	1850 mm (6 ft. 1 in.) 1850 mm (6 ft. 1 in.) 1850 mm (6 ft. 1 in.)
Net Peak Power at	2,200 rpm (SAE J1349 /ISO 9249) 33 kW (44 hp)
Gross Rated Power at	2,200 rpm (ISO 14396) 36 kW (48 hp)
Peak Torque at	1,950 rpm (SAE J1349 /ISO 9249) 146 Nm (198 lb.-ft.)
Engine Bore and Stroke	88 x 90 mm (3.46 x 3.54 in.)
Axles Rigid-mount front and rear axles with	10-deg. frame oscillation
Rear-Axle Versus Front-Axle Oscillation	20 deg. total, stop to stop
Differentials	45% locking front and rear differentials
Maximum Rise and Fall, Single Wheel	254 mm (10 in.)
Articulation Angle	80-deg. arc (40 deg. each direction)
Maximum Rated Flow at	6895 kPa (1,000 psi) 61 L/m (16 gpm)
Maximum Pressure at Couplings	23 000 kPa (3,336 psi)
Loader	23 000 kPa (3,336 psi)
Steering	18 000 kPa (2,611 psi)
365/70R18 Mitas EM-01 (standard)	1370 mm (4 ft. 6 in.) 1780 mm (5 ft. 10 in.) —
405/70R18 Firestone Duraforce (optional)	1360 mm (4 ft. 6 in.) 1820 mm (6 ft. 0 in.) 23 mm (0.9 in.)
Cooling System (engine and radiator)	10.0 L (10.6 qt.) Fuel Tank 62.0 L (16.4 gal.)
Differential and Planetary Axle Hydraulic/HST Reservoir	45.0 L (11.9 gal.)
With standard equipment, 365/70R18 tires, standard counterweight,	79-kg (175 lb.) operator, and full fuel tank
With Fork	4760 kg (10,494 lb.) 4710 kg (10,384 lb.)
With Fork and Tines	328 kg (723 lb.) 328 kg (723 lb.)
With General-Purpose (GP) Bucket With Bolt-On Edge	0.7 m (0.9 cu. yd.) 0.8 m (1.0 cu. yd.) 1.1 m (1.4 cu. yd.)
A Height to Top of Canopy	2430 mm (8 ft. 0 in.) 2430 mm (8 ft. 0 in.) 2430 mm (8 ft. 0 in.)
C Length From Centerline to Front Axle	1070 mm (3 ft. 6 in.) 1070 mm (3 ft. 6 in.) 1070 mm (3 ft. 6 in.)
D Wheelbase	2150 mm (7 ft. 1 in.) 2150 mm (7 ft. 1 in.) 2150 mm (7 ft. 1 in.)
E Height to Hinge Pin, Fully Raised	3160 mm (10 ft. 4 in.) 3160 mm (10 ft. 4 in.) 3160 mm (10 ft. 4 in.)
F Maximum Digging Depth	80 mm (3.0 in.) 80 mm (3.0 in.) 80 mm (3.0 in.)
G Maximum Rollback at Ground Level	42 deg. 42 deg. 42 deg.
H Maximum Rollback at Full Height	65 deg. 65 deg. 65 deg.
I Tread Width (standard)	1370 mm (4 ft. 6 in.) 1370 mm (4 ft. 6 in.) 1370 mm (4 ft. 6 in.)
J Width Over Tires (standard)	1780 mm (5 ft. 10 in.) 1780 mm (5 ft. 10 in.) 1780 mm (5 ft. 10 in.)
L Overall Length, Bucket on Ground	5420 mm (17 ft. 9 in.) 5450 mm (17 ft. 11 in.) 5520 mm (18 ft. 1 in.)
M Dump Clearance,	40-deg. Full Height 2420 mm (7 ft. 11 in.) 2390 mm (7 ft. 10 in.) 2350 mm (7 ft. 9 in.)
N Reach,	40-deg. Dump, Full Height 859 mm (34 in.) 888 mm (35 in.) 930 mm (3 ft. 1 in.)
O Maximum Reach,	42-deg. Dump 1580 mm (5 ft. 2 in.) 1600 mm (5 ft. 3 in.) 1650 mm (5 ft. 5 in.)
P Bucket Dump at Full Height	40 deg. 40 deg. 40 deg.
Q Turning Circle Radius Over Outside of Bucket Edge	4330 mm (14 ft. 2 in.) 4340 mm (14 ft. 3 in.) 4500 mm (14 ft. 9 in.)
R Bucket Width	1.90 m (6 ft. 3 in.) 1.90 m (6 ft. 3 in.) 2.20 m (7 ft. 3 in.)
Capacity, Heaped, SAE	0.7 m (0.9 cu. yd.) 0.8 m (1.1 cu. yd.) 1.1 m (1.4 cu. yd.)
Capacity, Struck, SAE	0.6 m (0.8 cu. yd.) 0.7 m (0.9 cu. yd.) 0.9 m (1.2 cu. yd.)
Breakout Force, SAE J732C	3250 kg (7,165 lb.) 3060 kg (6,746 lb.) 2750 kg (6,063 lb.)
Tipping Load, Straight	2950 kg (6,504 lb.) 2930 kg (6,460 lb.) 2800 kg (6,173 lb.)
Tipping Load, Full Turn, SAE	2600 kg (5,732 lb.) 2580 kg (5,688 lb.) 2470 kg (5,445 lb.)
Rated Operating Load,	50% of Full-Turn Tipping Load (conforms to ISO 14397-1)* 1300 kg (2,866 lb.) 1290 kg (2,844 lb.) 1235 kg (2,723 lb.)
Quik-Tatch Coupler and Quik-Tatch Coupler and and	1.2-m (48 in.) tine
Dimensions With Fork	1.2-m (48 in.) tine length 1.52-m (60 in.) tine length length
C Ground Clearance	292 mm (12 in.) 292 mm (12 in.) 292 mm (12 in.)
D Length From Centerline to Front Axle	1070 mm (3 ft. 6 in.) 1070 mm (3 ft. 6 in.) 1070 mm (3 ft. 6 in.)
E Wheelbase	2150 mm (7 ft. 1 in.) 2150 mm (7 ft. 1 in.) 2150 mm (7 ft. 1 in.)
F Overall Length, Forks on Ground	6040 mm (19 ft. 10 in.) 6350 mm (20 ft. 10 in.) 5920 mm (19 ft. 5 in.)
G Height to Hinge Pin, Fully Raised	3160 mm (10 ft. 4 in.) 3160 mm (10 ft. 4 in.) 3160 mm (10 ft. 4 in.)
H Reach, Fully Raised	564 mm (22 in.) 564 mm (22 in.) 478 mm (19 in.)
I Fork Height, Fully Raised	2970 mm (9 ft. 9 in.) 2970 mm (9 ft. 9 in.) 2990 mm (9 ft. 10 in.)
J Maximum Reach, Fork Level	1325 mm (4 ft. 4 in.) 1325 mm (4 ft. 4 in.) 1240 mm (4 ft. 1 in.)
K Fork Height, Maximum Reach	1310 mm (4 ft. 4 in.) 1310 mm (4 ft. 4 in.) 1330 mm (4 ft. 4 in.)
L Reach, Ground Level	933 mm (3 ft. 1 in.) 933 mm (3 ft. 1 in.) 828 mm (33 in.)
M Tine Length	1219 mm (48 in.) 1524 mm (60 in.) 1200 mm (48 in.)
N Load Position,	50% Tine Length 610 mm (24 in.) 760 mm (30 in.) 600 mm (24 in.)
Rated Operating Load, Rough Terrain,	60% Full-Turn Tipping Load (conforms to EN474-3)* 1235 kg (2,723 lb.) 1235 kg (2,723 lb.) 1390 kg (3,064 lb.)
Rated Operating Load, Firm and Level Ground,	80% Full-Turn Tipping Load (conforms 1630 kg (3,594 lb.) 1630 kg (3,594 lb.) 1850 kg (4,079 lb.)
Bucket Fill Factors LOOSE MATERIALS LOOSE MATERIALS kg/m	3 lb./cu. yd. kg/m 3 lb./cu. yd.
115%	110% 105% 100% 95% Cinders (coal, ashes, clinkers) 1,134 673 Limestone, mixed sizes 2,835 1682
0.76 m³	0.92 m³ Coal, anthracite, broken, loose 1,458 865 Sandstone, quarried 2,214 1314
Granite, broken 2,592 1538 (1.5 to	3.5 in.) size 2,430 1442
Gypsum 3,834 2275 Stone or gravel,	18.75-mm (0.75 in.) size 2,700 1602
standard rear counterweight, 365/70R18 tires, full fuel tank, and	79-kg (175 lb.) operator.
