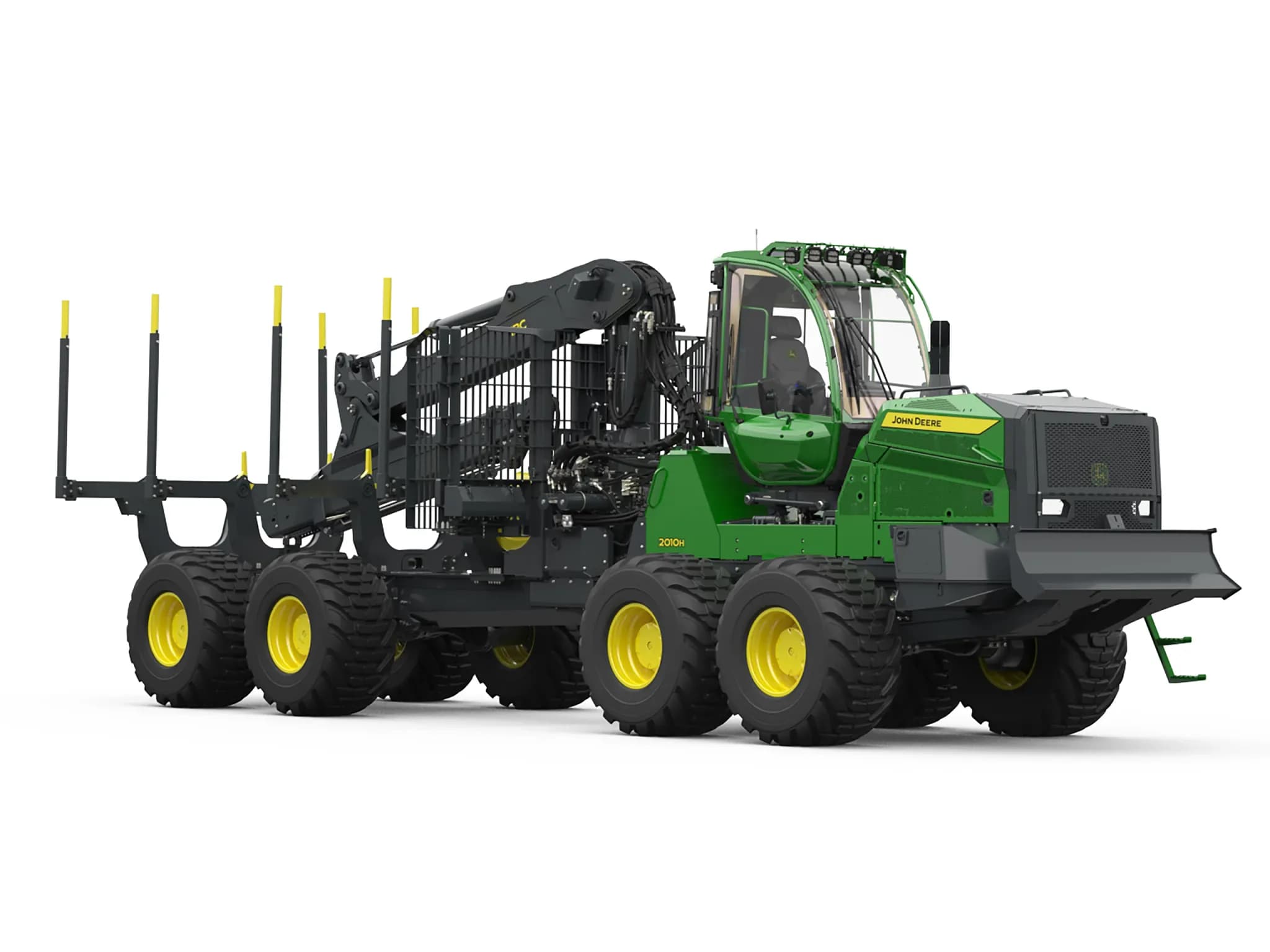

2010H Forwarder

Name: 2010H Forwarder
Brand: John Deere
SKU: JOHNDEERE-0930WJ

رقم القطعة: JOHNDEERE-0930WJ

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

2010H Forwarder

Displacement	9 L (549 cu. in.)
Fuel Tank	380 L (100 gal.)
Front	863 mm (34 in.) 673 mm (26.5 in.) / 723 mm (28.5 in.)
Rear	673 mm (26.5 in.) / 723 mm (28.5 in.) 673 mm (26.5 in.) / 723 mm (28.5 in.)
Model	2010H
Base Code	0930WJ
Division	forestry-equipment
Product Family	forwarders
Torque	1400 Nm (1,032 ft.-lb.) at 1,200–1,400 rpm
Rotation	290 deg.
Transport height	3.95 m (13.0 ft.) 3.95 m (13.0 ft.)
Alternator	150 A
Slewing Angle	380 deg. 380 deg.
Cross-Sectional Area	6.5 m² (70 sq. ft.) / 7.5 m² (80 sq. ft.)
Power	220 kW (295 hp) 220 kW (295 hp)
1st/2nd-Gear Speed	10/20 km/h (6/12 mph) / 6/20 km/h (4/12 mph) with single-motor gearbox
Maximum Reach	8.7 m (28.5 ft.) / 10.7 m (35.1 ft.) 8.7 m (28.5 ft. ) / 10.2 m (33.5 ft.)
Length	4.5 m (14.7 ft.) / 5.5 m (18.0 ft.) / 6.0 m (19.7 ft.) / 6.5 m (21.3 ft.)
Voltage	24 V
Work Pump	210 cc
Work Pressure	26.5 MPa (3,843 psi)
Tank	225 L (59 gal.)
Leveling	10-deg. sideways / 6-deg. front/back
Diesel Exhaust Fluid (DEF) Liquid Tank	28.5 L (7.5 gal.)
Hydraulic Oil Tank	225 L (59 gal.)
A Machine Length	10.7 m (35.1 ft.) 12.7 m (41.6 ft.)
B + C Wheelbase	5.9 m (19.3 ft.) / 6.4 m (21.0 ft.) / 6.9 m (22.6 ft.) 5.9 m (19.3 ft.) / 6.4 m (21.0 ft.) / 6.9 m (22.6 ft.)
D Machine Width	2.99–3.40 m (9.80–11.15 ft.) 2.99–3.40 m (9.80–11.15 ft.)
E Ground Clearance	78 cm (30.71 in.) 78 cm (30.71 in.)
