John Deere

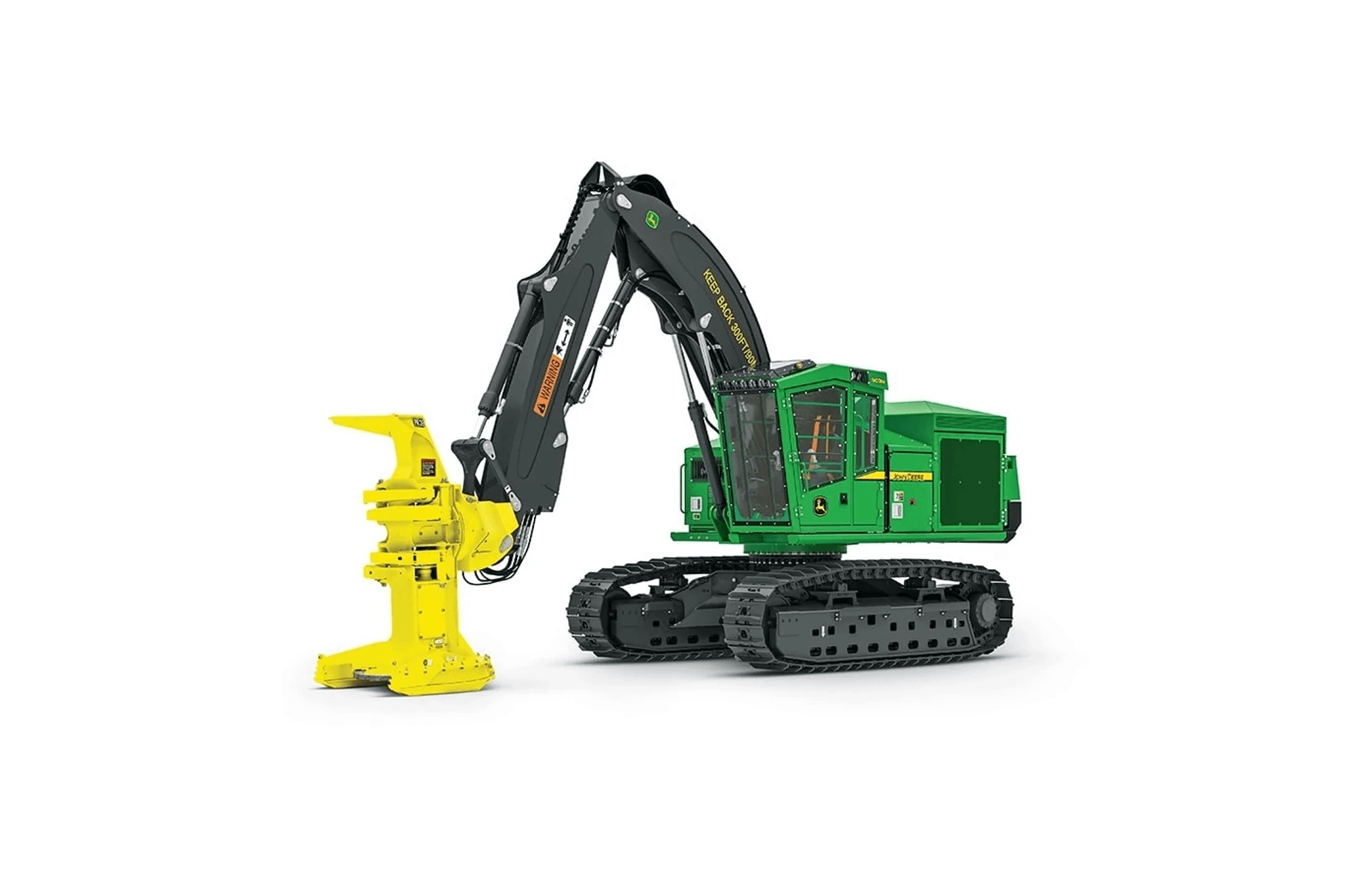

903M Tracked Feller Buncher

Name: 903M Tracked Feller Buncher
Brand: John Deere
SKU: JOHNDEERE-89M0JF

رقم القطعة: JOHNDEERE-89M0JF

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

903M Tracked Feller Buncher

المواصفات

Displacement	9.0 L (549 cu. in.) 9.0 L (549 cu. in.)
Fuel Tank	1080 L (285 gal.) 1080 L (285 gal.)
Diesel Exhaust Fluid (DEF) Tank	42 L (11 gal.) N/A
Model	903M
Base Code	89M0JF
Division	forestry-equipment
Product Family	tracked-bunchers
610 mm (24 in.)	59.8 kPa (8.7 psi) 59.1 kPa (8.6 psi)
Low	2.3 km/h (1.4 mph) 2.3 km/h (1.4 mph)
High	4.5 km/h (2.8 mph) 4.5 km/h (2.8 mph)
Maximum Rated Flow	532 L/min. (141 gpm) 532 L/min. (141 gpm)
Minimum	3.00 m (9 ft. 10 in.)
Maximum	7.01 m (23 ft. 0 in.)
Counterweight	610-mm (24 in.) single-grouser tracks,
Height	2820 mm (111.0 in.) 3068 mm (120.8 in.) 3068 mm (120.8 in.) 2850 mm (112.0 in.) 2850 mm (112.0 in.)
Swing Torque	80 170 Nm (59,130 lb.-ft.)
works with the powerful	246-kW that require longer reach with
Peak Power at	1,900 rpm 246 kW (330 hp) 246 kW (330 hp)
Net Peak Torque at	1,500 rpm 1392 Nm (1,027 lb.-ft.) 1527 Nm (1,126 lb.-ft.)
Track Chain	215.9 mm (8.5 in.)
Swing Speed (maximum)	6.7 rpm
Approximate Weight — Base Machine	31 330 kg (69,080 lb.) 30 971 kg (68,290 lb.)
Top of Cab With Flat Skylight	3.55 m (11 ft. 8 in.)
Top of Cab With Peaked Skylight	3.77 m (12 ft. 4 in.)
Top of Boom, Extended, Attachment Vertical	3.86 m (12 ft. 8 in.)
B Overall Track Length	4.90 m (16 ft. 1 in.)
C Track Length (idler to sprocket center)	3.83 m (12 ft. 7 in.)
D Tail Swing (from swing center)	3.18 m (10 ft. 5 in.)
Cutting Swath	4.01 m (13 ft. 2 in.)
Single Grouser	779 mm (31 in.)
H Track Gauge	2.69 m (8 ft. 10 in.)
610-mm (24 in.) Track Shoes	3.30 m (10 ft. 10 in.)
711-mm (28 in.) Track Shoes	3.40 m (11 ft. 2 in.)
711 mm (28 in.)	52.0 kPa (7.5 psi) 51.4 kPa (7.5 psi)
914 mm (36 in.)	42.8 kPa (6.2 psi) 42.3 kPa (6.1 psi)
Maximum Reach (to tip of saw blade)	8.88 m (29 ft. 1 in.)
Minimum Reach (to tip of saw blade)	4.87 m (15 ft. 11 in.)
Maximum Cutting Capacity	545 mm (21.5 in.) 559 mm (22.0 in.) 559 mm (22.0 in.) 508 mm (20.0 in.) 508 mm (20.0 in.)
Maximum Accumulation Capacity	0.46 m (5.0 sq. ft.) 0.48 m (5.2 sq. ft.) 0.48 m (5.2 sq. ft.) 0.64 m (6.9 sq. ft.) 0.64 m (6.9 sq. ft.)
Opening at Front of Housing	1180 mm (46.5 in.) 1280 mm (50.4 in.) 1280 mm (50.4 in.) 870 mm (34.0 in.) 870 mm (34.0 in.)
Blade Diameter	1372 mm (54.0 in.) 1422 mm (56.0 in.) 1422 mm (56.0 in.) 1346 mm (53.0 in.) 1346 mm (53.0 in.)
Saw rpm	1,150 rpm 1,150 rpm 1,150 rpm 1,250 rpm 1,250 rpm
Wrist Rotation	302 deg. 30 deg. 312 deg. 30 deg. 310 deg.
Width at Saw Housing	1550 mm (61.0 in.) 1620 mm (63.8 in.) 1620 mm (63.8 in.) 1660 mm (65.0 in.) 1660 mm (65.0 in.)
Weight (including adapter and wrist)	3140 kg (6,920 lb.) 3550 kg (7,830 lb.) 3840 kg (8,470 lb.) 3370 kg (7,430 lb.) 3660 kg (8,070 lb.)
Triple Grouser	738 mm (29 in.)
With Optional Walkway	3.20 m (10 ft. 6 in.)
914-mm (36 in.) Track Shoes	3.61 m (11 ft. 10 in.)
— longer. And a heavy-duty John Deere PowerTech™ Plus	9.0L diesel engine that delivers low total fluid
Maximum Rated Flow (x2) N/A	209 L/min. (55 gpm)
Bare Pin at Full Reach	5890 kg (12,990 lb.) 7260 kg (16,010 lb.)
Bare Pin at	6.1 m (20 ft.) 7680 kg (16,930 lb.) 9370 kg (20,660 lb.)
Without Optional Walkway	3.05 m (10 ft. 0 in.)
