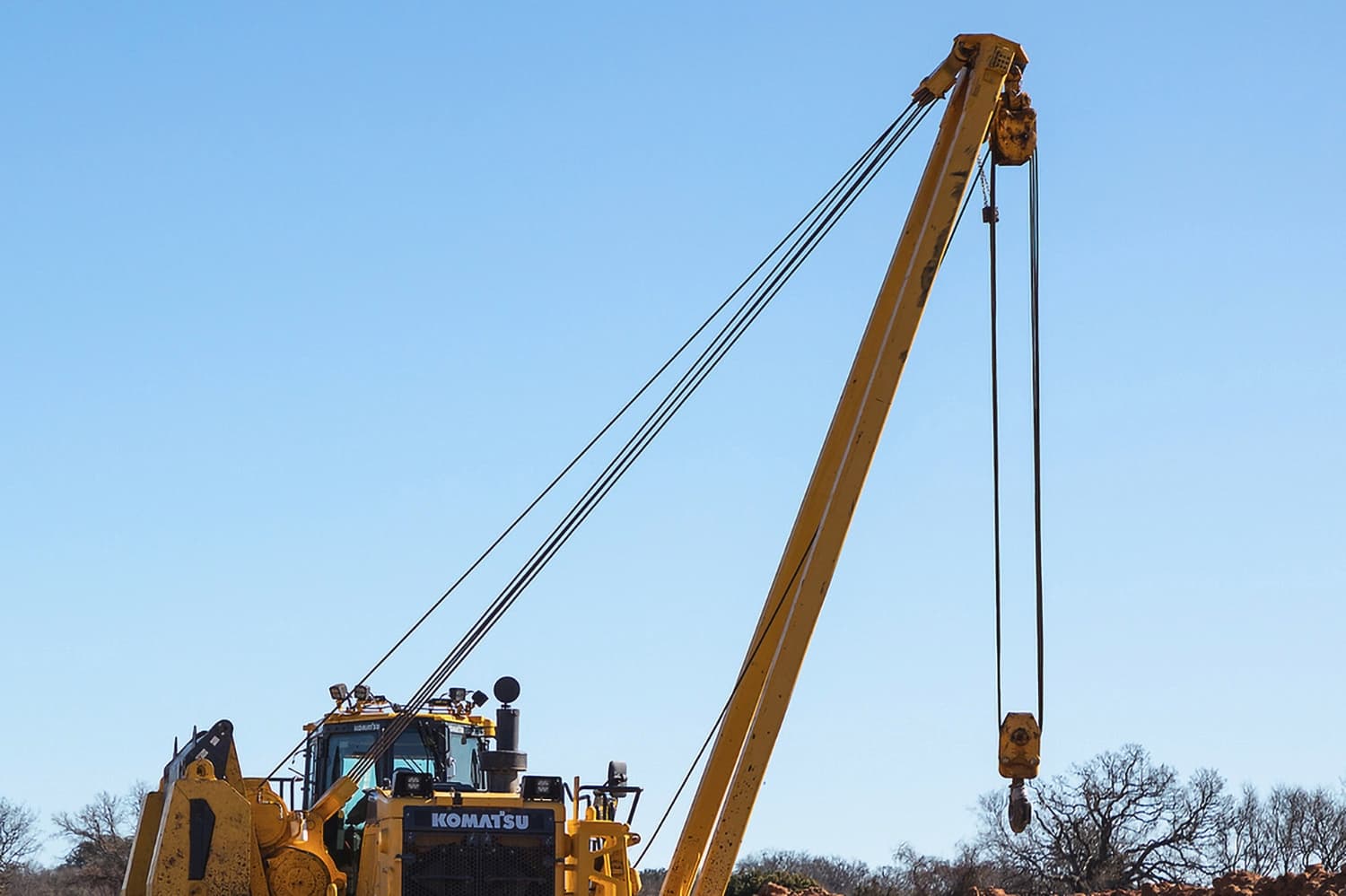

D155CX-8 K170
رقم القطعة: KOMATSU-D155CX-8-K170
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
D155CX-8 K170
المواصفات
| Horsepower (HP) | 354 HP @ 1,900 rpm |
|---|---|
| Horsepower (kW) | 264 kW @ 1 900 rpm |
| Operating weight (kg) | 54 870 |
| Operating weight (lbs) | 120,970 |
| Suspension | Fixed roller, non-oscillating track frame |
| Track roller frame | Monocoque, high-tensile strength steel construction |
| Type of shoes (standard) | Moderate service with clipped grouser |
| Number of track rollers (each side) | 9 |
| Number of shoes (each side) | 48 |
| Number of carrier rollers (each side) | 2 |
| Grouser height (mm) | 80 |
| Grouser height (in) | 3.1 |
| Shoe width (standard)(in) | 32 |
| Shoe width (standard)(mm) | 810 |
| Ground contact area (ft2) | 76.3 |
| Ground contact area (cm^2) | 71 000 |
| Ground pressure (with standard shoe)(ISO 16754)(psi) | 11 |
| Ground pressure (with standard shoe)(ISO 16754)(kg/cm^2) | .77 |
| Ground pressure (with standard shoe)(ISO 16754)(kpa) | 77 |
| Track gauge (mm) | 2 400 |
| Track gauge (ft) | 7 ft. 10 1/2 in |
| Length of track on ground (ft) | 144 ft. 10 in |
| Length of track on ground (mm) | 3 925 |
| Engine model | Komatsu SAA6D140E-7** |
| Dozers type | 4-cycle, water-cooled, direct injection |
| Aspiration | Komatsu Variable Geometry Turbocharged, air-to-air aftercooled, cooled EGR |
| Number of cylinders | 6 |
| Bore x stroke (in) | 5.51 x 6.50 |
| Bore x stroke (mm) | 140 x 165 |
| Piston displacement (L) | 15.24 |
| Piston displacement (in^3) | 930 |
| Governor | Mid-range, electronic |
| Footnote | *EPA Tier 4 Final emissions certified |
| SAEJ1995 - Gross (kW) | 268 |
| SAEJ1995 - Gross (HP) | 360 |
| ISO 9249 / SAE J1349 - Net (HP) | 354 |
| ISO 9249 / SAE J1349 - Gross (kW) | 264 |
| Rated rpm | 1,900 |
| Fan drive type | Hydraulic |
| Filter | Full-flow |
| Method | Gear pump, force lubrication |
| Final drive features | Double-reduction, spur and planetary final drives increase tractive effort. Segmented sprockets are bolt-on for easy in-the-field replacement. |
| Fuel tank (US gal) | 165 |
| Fuel tank (L) | 625 |
| Diesel Exhaust Fluid (DEF) tank (L) | 39 |
| Diesel Exhaust Fluid (DEF) tank (US gal) | 10.3 |
| Coolant (US gal) | 27.5 |
| Coolant (L) | 104 |
| Engine oil (L) | 37 |
| Engine oil (US gal) | 9.8 |
| Final drive (US gal) | 8.2 |
| Final drive (L) | 31 |
| Hydraulic tank (L) | 95 |
| Hydraulic tank (US gal) | 25.1 |
| Steering system features | PCCS lever controls for all directional movements. Pushing the PCCS lever forward results in forward machine travel, while pulling it rearward reverses the machine. Simply tilt the PCCS lever to the left to make a left turn. Tilt it to the right for a right turn. Hydrostatic steering system (HSS) is powered by steering planetary units and an independent hydraulic pump and motor. Counter-rotation turns are also available. Wet, multiple-disc, pedal-controlled service brakes are spring-actuated and hydraulically released. Gearshift lock lever also applies parking brakes. |
| Hydraulic system features | Closed-center load sensing system (CLSS) designed for precise and responsive control, and for efficient simultaneous operation. |
| Hydraulic control unit (U.S. gal/min) | All spool control valves externally mounted beside the hydraulic tank. Variable piston pump with capacity (discharge flow) of 85.9 US gal for steering and 47.6 US gal for implement at rated engine rpm. |
| Hydraulic control unit (ltr/min) | All spool control valves externally mounted beside the hydraulic tank. Variable piston pump with capacity (discharge flow) of 325 L/min for steering and 180 L/min for implement at rated engine rpm. |
| Relief valve setting (kg/cm^2) | 280 - 390 |
| Relief valve setting (psi) | 3,980 - 5,550 |
| Relief valve setting (MPa) | 27.5 - 38.2 |
| Torque converter, transmission, bevel gear, and steering system (US gal) | 23.8 |
| Torque converter, transmission, bevel gear, and steering system (L) | 90 |
| Transmission features | Komatsu's 3-speed TORQFLOW transmission consists of a water-cooled, 3-element, 1-stage, 1-phase, torque converter, and a planetary gear, multiple-disc clutch transmission which is hydraulically actuated and force-lubricated for optimum heat dissipation. Equipped with gearshift lock lever and neutral safety switch. |
| 1st torqflow forward (kph) | 3.8 |
| 1st torqflow forward (mph) | 2.4 |
| 2nd torqflow forward (kph) | 5.6 |
| 2nd torqflow forward (mph) | 3.5 |
| 3rd torqflow forward (kph) | 11.6 |
| 3rd torqflow forward (mph) | 7.2 |
| 1st torqflow reverse (kph) | 4.6 |
| 1st torqflow reverse (mph) | 2.9 |
| 2nd torqflow reverse (kph) | 6.8 |
| 2nd torqflow reverse (mph) | 4.2 |
| 3rd torqflow reverse (kph) | 14 |
| 3rd torqflow reverse (mph) | 8.7 |
| Damper case (L) | 1.5 |
| Damper case (US gal) | 0.4 |
| Lift capacity (kg) | 77 272 |
| Lift capacity (lbs) | 170,000 |
| Boom length standard (ft) | 24 |
| Boom length optional (ft) | 28 |
| Boom parting lines | 5 |
| Hook line partings | 6 |
| Hook low speed raise (m/min) | 8.5 - 13.0 |
| Hook low speed raise (FPM) | 28 - 42.8 |
| Hook high speed raise (FPM) | 63.3 - 76.6 |
| Hook high speed raise (m/min) | 19.3 - 23.3 |
| Hook free fall | Yes |
| Boom winch drum diameter (in) | 10 |
| Boom winch drum diameter (mm) | 254 |
| Boom winch drum width (in) | 11 |
| Boom winch drum width (mm) | 279 |
| Boom winch drum cable capacity (ft) | 247 |
| Boom winch drum cable capacity (m) | 75.3 |
| Boom winch drum rope diamter (ft) | 0.75 |
| Boom winch drum rope diamter (mm) | 19 |
| Hook winch drum rope diameter (in) | 0.75 |
| Hook winch drum diameter (mm) | 254 |
| Hook winch drum width (mm) | 432 |
| Hook winch drum width (in) | 17 |
| Hook winch drum cable capacity (m) | 152 |
| Hook winch drum cable capacity (ft) | 499 |
| Hook winch drum diameter (in) | 10 |
| Hook winch drum cable capacity (mm) | 19 |
| Counterweight total weight (kg) | 6 070 |
| Counterweight total weight (lbs) | 13,380 |
| Counterweight section quantity | 11 |
| Weight per section | 11 @ 552 kg |
| Weight per section (lbs) | 11 @ 1,217 lbs. |
| Boom 24' standard (lbs) | 3,781 |
| Boom 28' optional (lbs) | 4,249 |
| Boom 7.3 m standard (kg) | 1 715 |
| Boom 8.5 m optional (kg) | 1 927 |
| Counterweight frame (lbs) | 4,146 |
| Counterweight frame (kg) | 1 881 |
| Counterweight yoke (lbs) | 1,400 |
| Counterweight yoke (kg) | 636 |
| Boom block and load block (lbs) | 1,556 |
| Boom block and load block (kg) | 706 |
| Track type | Sealed and lubricated |
| Boom winch case (gearbox)(L) | 23.8 |
| Boom winch case (gearbox)(US gal) | 6.3 |
| Hook winch case (gearbox)(US gal) | 4.1 |
| Hook winch case (gearbox)(L) | 15.5 |
