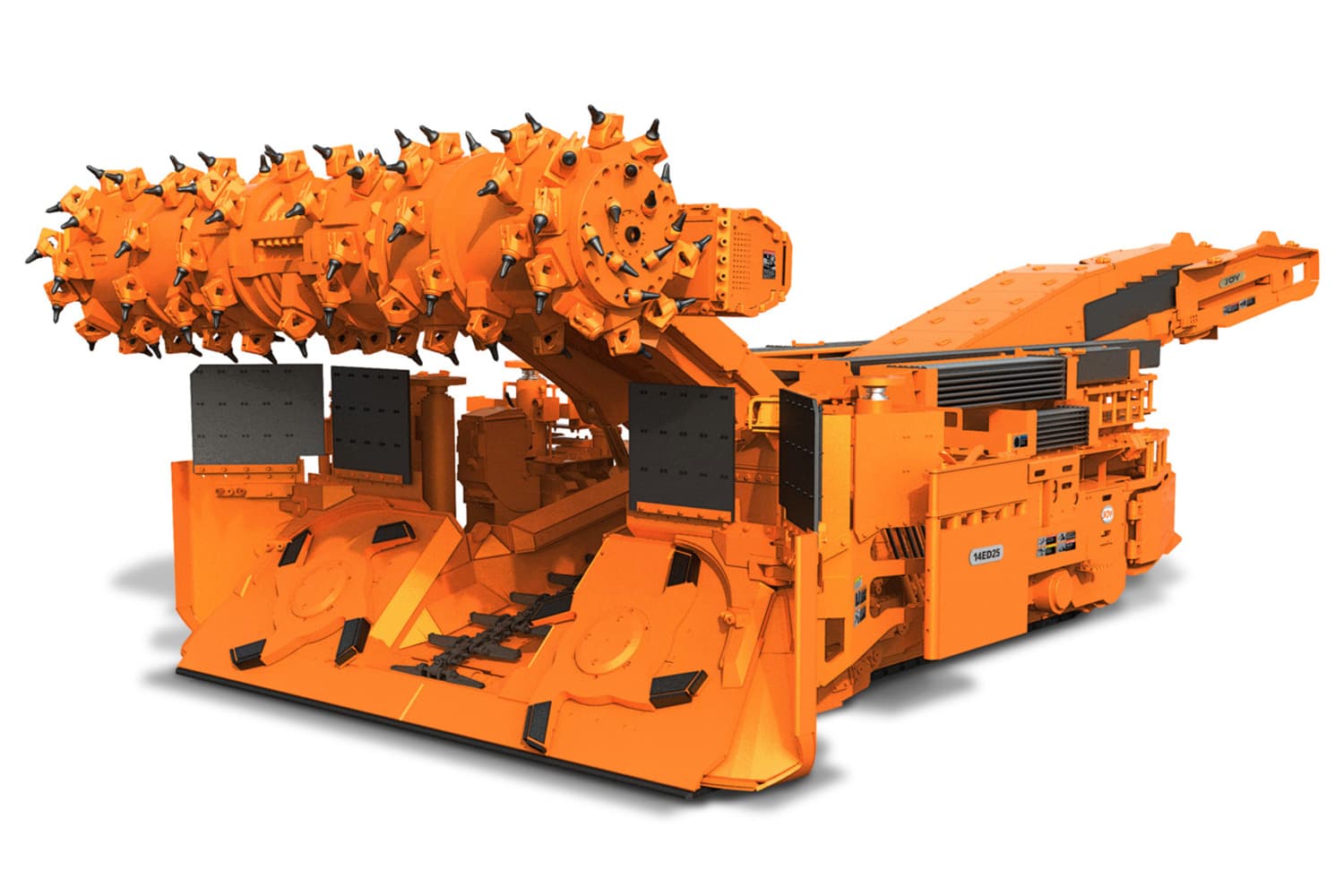

14ED25
رقم القطعة: KOMATSU-14ED25
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
14ED25
المواصفات
| Ground clearance (in) | 11 |
|---|---|
| Hydraulic tank capacity (US gal) | 300 |
| Conveyor width (in) | 30 |
| Ground pressure (psi) | 33 - 37 |
| Minimum cut height (ft) | 6 ft. 6 in |
| Number of roof bolters | 2 |
| Number of rib bolters | 2 |
| Maximum cut height (ft) | 11 ft. 5 in |
| Root drill to pick tip distance (in) | 137 |
| Machine length (ft) | 42 ft. 11 |
| Machine weight (lbs) | 180,000 - 196,000 |
| Chassis height (in) | 48 |
| Chassis width (in) | 120 |
| Traction speed (fpm max) | 65 |
| Crawler chain width (in) | 22 |
| Roof drills with integral timber cylinder | Two AFX210 drills |
| Optional rib drills | 2 |
| Drilling features | Wet or dry drilling |
| Roof drill to face distance (ft) | 9 ft. 4 in |
| Cutter head diameter (in) | 44 |
| Rib drill to face distance (ft) | 13 ft. 7 in |
| Cutter width (ft) | 15 ft. 6 in minimum |
| Rib guards (ft) | 6 ft. 0 in or 8.5 in |
| Bit tip speed (fpm) | 690 |
| TRS reach (ft) | 12 ft. 9 in |
| Cutter speed (rpm) | 60 |
| Bit tip speed (rpm) | 690 |
| Drum extensions (in) | 9 |
| Sump distance (in) | 52 |
| Cutter motors (HP) | 328 |
| Gathering head motors (HP) | 67 |
| Traction motors (HP) | 80 |
| Pump motors (HP) | 160 |
| Conveyor motor (HP) | 54 |
| Total horsepower (HP) | 1165 |
| Conveyor sideboard height (in) | 12 |
| Conveyor speed (fpm) | 402 |
| CLA diameter (in) | 51 |
| Machine voltage (V) | 950 V 60 Hz |
| Machine cable | 4/0 - 3 conductor |
| Hydraulic pump (tandem)(gpm) | 120 |
