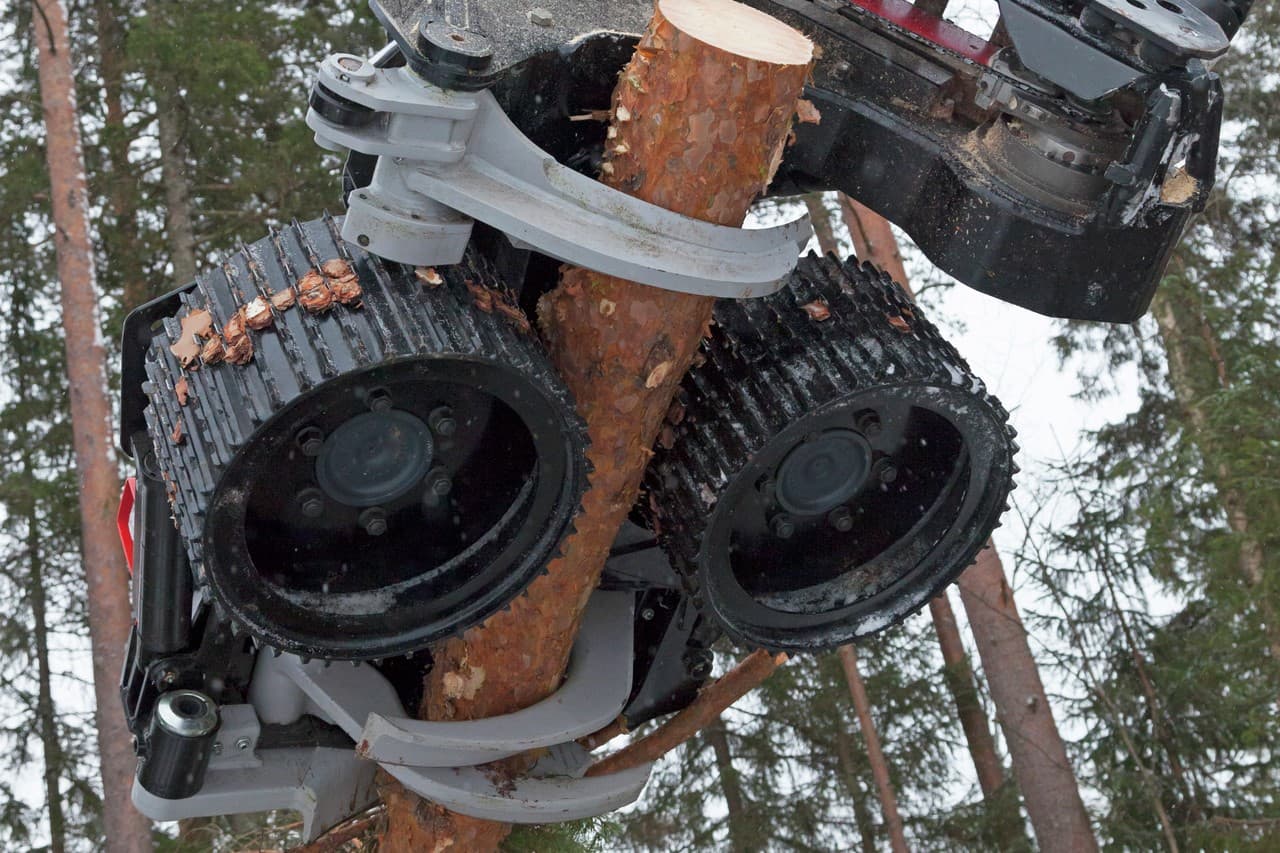

S132
رقم القطعة: KOMATSU-S132
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
S132
المواصفات
| Weight (kg) | 1 364 |
|---|---|
| Weight (lbs) | 3,042 |
| Maximum cutting diameter (in) | 27.9 |
| Maximum cutting diameter (mm) | 720 |
| Maximum delimbing diameter (in) | 16.9 |
| Maximum delimbing diameter (mm) | 428 |
| Fell/Cut diam. theor. max (in) | 27.95 |
| Fell/Cut diam. theor. max (mm) | 710 |
| Max width (in) | 66.5 |
| Max width (mm) | 1 689 |
| Height including rotator (mm) | 2 142 |
| Height including rotator (in) | 84.3 |
| Roller opening, max (in) | 20.9 |
| Roller opening, max (mm) | 532 |
| Opening knives, lower (in) | 24.6 |
| Opening knives, lower (mm) | 625 |
| Opening knives, upper (in) | 27.2 |
| Opening knives, upper (mm) | 690 |
| Weight (kg) (Specifications) | 1 380 |
| Feed speed (m/s) | 0 - 4.8, 0 - 5 |
| Feed speed (ft/s) | 0 - 15.7, 0 - 16.4 |
| Gross feed force (kN) | 21, 26.1, 28.7 |
| Gross feed force (lbf) | 4,720.9, 5,867.5 or 6,452 |
| Delimbing knives, number | 4 |
| Saw motor (in^3/rev) | 7.5 |
| Saw motor (cm^3/rev) | 19 |
| Max hydraulic flow (L/min) | 330 |
| Max hydraulic flow (gpm) | 87.17 |
| Max hydraulic pressure (psi) | 4,061 |
| Max hydraulic pressure (MPa) | 28 |
| Feed wheel type | Steel rollers |
| Delimbing knives, opening (mm) | 428 |
| Delimbing knives, opening (in) | 16.85 |
| Bar (option)(in) | 32.48 |
| Bar (option)(cm) | 82.5 |
| Notes | Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice. |
| Roller diameter (mm) | 641 |
| Roller diameter (in) | 25.2 |
