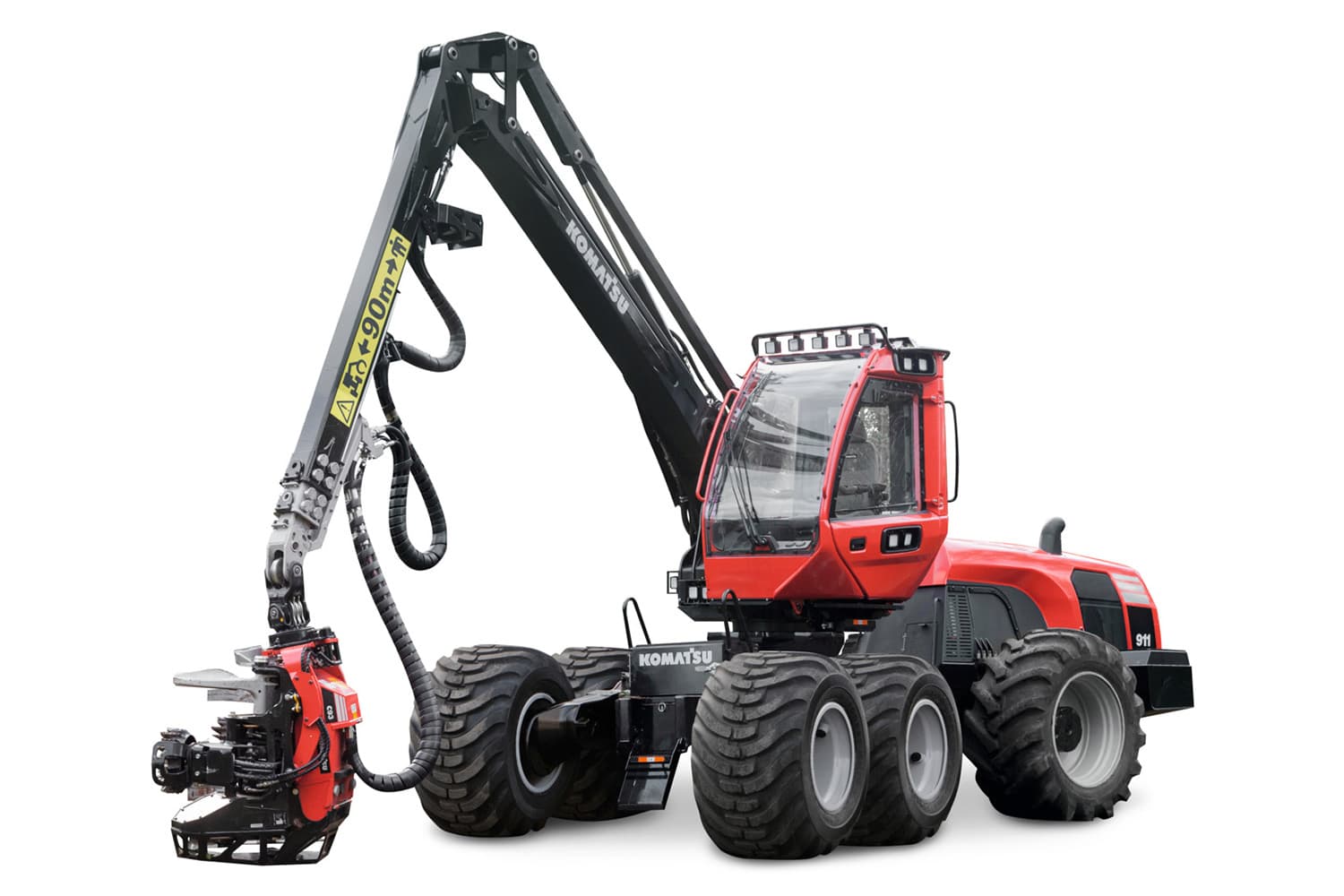

911-7
رقم القطعة: KOMATSU-911-7
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
911-7
المواصفات
| Horsepower (HP) | 228 net HP @ 1,900 rpm |
|---|---|
| Ground clearance (mm) | 660 (with 200H crane), 670 (with 230H crane) |
| Fuel tank (US gal) | 97.74 (with 200H crane), 107 (with 230H crane) |
| Fuel tank (L) | 370 (with 200H crane), 405 (with 230H crane) |
| Weight (kg) | From 17 850 |
| Weight (lbs) | From 39,353 |
| Voltage | 24 V |
| Tractive force (kN) | 167 (with 200H crane), 189 (with 230H crane) |
| Tractive force (lbf) | 37,543 (with 200H crane) or 42, 489 (with 230H crane) |
| Driving speed (kph) | 0 - approximately 24 (with 200H crane), 0 - approximately 21 (with 230H crane) |
| Driving speed (mph) | 0 - approximately 14.9 (with 200H crane), 0 - approximately 13.1 (with 230H crane) |
| Stroke volume (L) | 6.6 |
| Torque (Nm) | 950 Nm at 1 500 rpm |
| Torque (ft-lbs) | 701 lbf.-ft. at 1,500 rpm |
| Type, Europe and North America | AGCO POWER. 6-cylinder diesel engine with turbo and intercooler. Tier 4F. |
| Stroke volume (US gal) | 1.74 |
| Flow (L) | 400 at 1 600 rpm |
| Flow (US gal) | 106 at 1,600 rpm |
| Approximate weight (kg) | From 17 850 (with 200H crane), from 19 680 (with 230H crane) |
| System pressure (psi) | 4,061 |
| Approximate weight (lbs) | From 39,352 (with 200H crane), from 43,387 (with 230H crane) |
| System pressure (bar) | 280 |
| Width (mm) | With 600/55x26,5 tires: 2 726 mm |
| Width (ft) | With 600/55x26.5 tires: 8 ft. 11 in |
| Note on dimensions | Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment. |
| Battery capacity | 2 x 180 Ah |
| Gross slewing torque (lbf-ft) | 31715 (with 200H crane), 35,034 (with 230H crane) |
| Gross lifting torque (lbf-ft) | 14,603 (with 200H crane), 16,963 (with 230H crane) |
| Generator | 2 x 100 A |
| Length total (ft) | 24 ft. 1 in (with 200H crane), 24 ft. 8 in (with 230H crane) |
| Length total (mm) | 7 345 (with 200H crane), 7 525 (with 230H crane) |
| Length front axle to middle joint (ft) | 6 ft. 1 in (with 200H crane), 6 ft. 4 in (with 230H crane) |
| Length front axle to middle joint (mm) | 1 850 (with 200H crane), 1 930 (with 230H crane) |
| Length middle joint to rear axle (mm) | 1 700 (with 200H crane), 1 800 (with 230H crane) |
| Length middle joint to rear axle (ft) | 5 ft. 7 in (with 200H crane), 5 ft. 11 in (with 230H crane) |
| Notes | The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice. |
| Horsepower (kW DIN) | 170 kW DIN @ 1 900 rpm |
| Gross lifting torque (Nm) | 198 (with 200H crane), 230 (with 230H crane) |
| Model and reach (ft) | 32 ft. 10 in or 36 ft. 1 in (with 200H crane), 28 ft. 7 in, 32 ft. 10 in or 36 ft. 1 in (with 230H crane) |
| Model and reach (m) | 10 or 11 (with 200H crane), 8,7, 10 or 11 (with 230H crane) |
| Gross slewing torque (Nm) | 43 (with 200H crane), 47.5 (with 230H crane) |
| Transport height with tire compression (mm) | 3 820 (with 200H crane), 3 920 with 320H crane) |
| Transport height with tire compression (ft) | 12 ft. 6 in (with 200H crane), 12 ft. 10 in (with 230H crane) |
| Ground clearance (ft) | 2 ft. 2 in |
| Power_metric | 170 kW DIN at 1 900 rpm |
| Available heads | S82, S92, C93, C124 (with 200H crane); S92, C93, C124, S132, C144, V132E (with 230H crane) |
| Power_imperial | 228 HP at 1,900 rpm |
| Tractive force (lbf) (Transmission) | 37543 (with 200H crane), 42489 (with 230H crane) |
