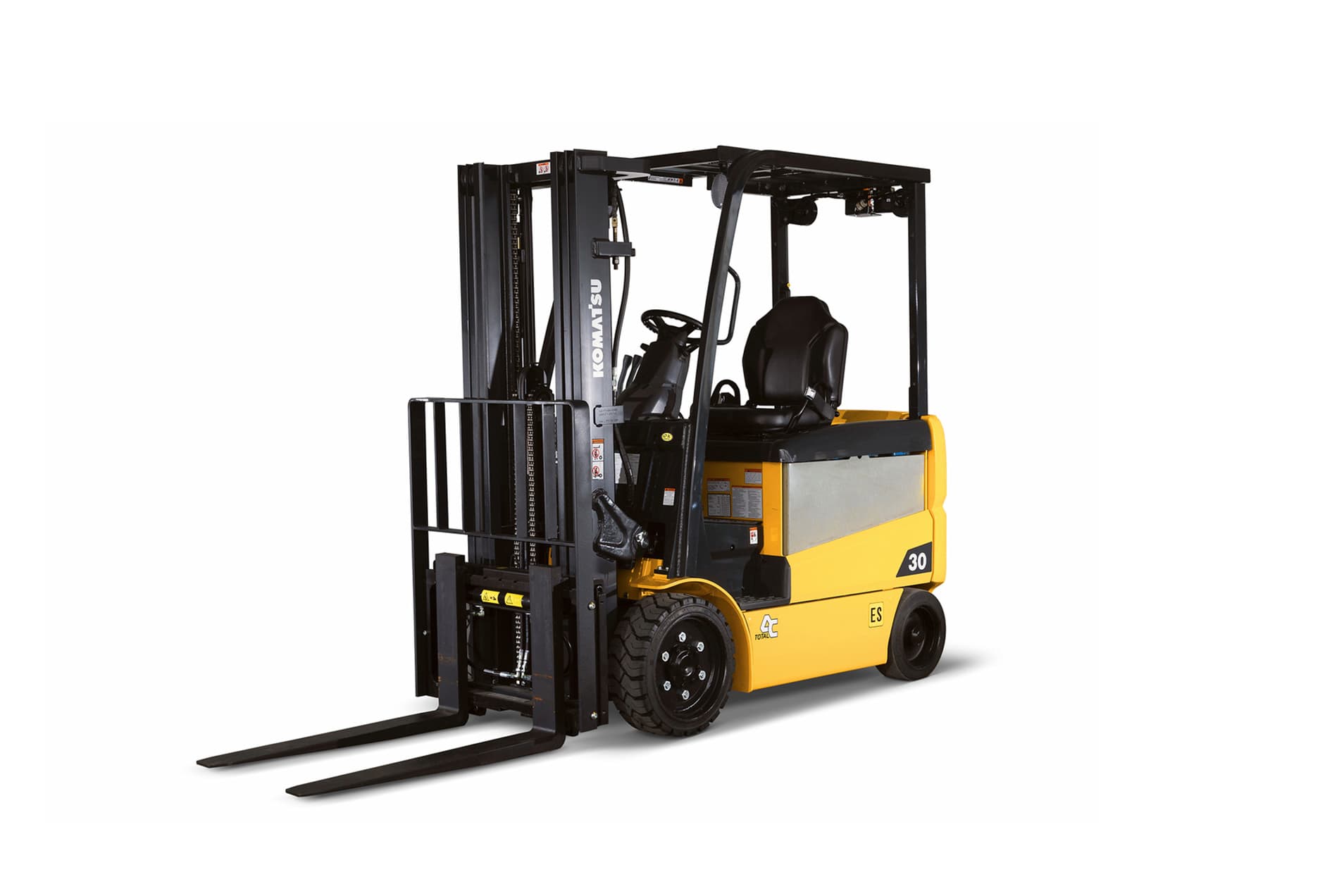

FB25SHU-6
رقم القطعة: KOMATSU-FB25SHU-6
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
FB25SHU-6
المواصفات
| Tire type | Cushion |
|---|---|
| Power type | Electric (36 V/48 V battery) |
| Capacity (kg) | 1 815 - 2 950 |
| Capacity (lbs) | 4,000 - 6,500 |
| Drive motor control | MOSFET AC Inverter |
| Hydraulic oil capacity (gal) | 7.1 |
| Hydraulic oil capacity (L) | 27 |
| Service weight (kg) | 4 420 |
| Service weight (lbs) | 9,610 |
| Travel speed, loaded/unloaded (mph) | 36 V: 8.4 / 9.0; 48 V: 9.9 / 10.9 |
| Travel speed, loaded/unloaded (kph) | 36 V: 14.0 / 15.0; 48 V: 17.1 / 17.5 |
| Lifting speed, loaded/unloaded (2 stage) (mm/s) | 36 V: 315 / 540; 48 V: 420 / 640 |
| Lifting speed, loaded/unloaded (2 stage) (fpm) | 36 V: 57.1 / 106.3; 48 V: 76.8 / 126.0 |
| Lowering speed, loaded/unloaded (2 stage) (fpm) | 98.0 |
| Lowering speed, loaded/unloaded (2 stage) (mm/s) | 498 |
| Maximum drawbar pull, loaded (lbs) | 3,370 |
| Maximum drawbar pull, loaded (kN) | 1 528 |
| Maximum gradeability (%) | 25 |
| Service brake, operation/control | Foot/hydraulic |
| Parking brake, operation/control | Hand/mechanical |
| Steering type | Hydraulic |
| Battery voltage (V) | 36 / 48 |
| Battery capacity, maximum (Ah/6hr) | 36 V: 1,210; 48 V: 880 |
| Power source type | Electric (36 V/48 V) |
| Operation type | Sit-Down |
| Capacity @ 600 mm load center (kg) | 2 270 |
| Capacity @ 24 in load center (lbs) | 5,000 |
| Load distance from center axle (2 stage)(in) | 17 |
| Load distance from center axle (2 stage)(mm) | 431 |
| Wheelbase (mm) | 1 300 |
| Wheelbase (in) | 51.2 |
| Height overhead guard (mm) | 2 200 |
| Height overhead guard (in) | 86.8 |
| Length to fork face (in) | 81.3 |
| Length to fork face (mm) | 2 045 |
| Overall width at drive tires (in) | 41.7 |
| Overall width at drive tires (mm) | 1 060 |
| Forks, thickness x width x length (mm) | 41 × 99 × 1 070 |
| Forks, thickness x width x length (in) | 1.6 x 3.9 x 42.1 |
| Carriage width/ITa class (in) | 37.0 in / II |
| Carriage width/ITa class (mm) | 940 / II |
| Ground clearance, center of wheelbase (mm) | 104 |
| Ground clearance, center of wheelbase (in) | 4.1 |
| Ground clearance under mast (mm) | 140 |
| Ground clearance under mast (in) | 5.5 |
| Right angle stacking aisle (mm) | 2 210 |
| Right angle stacking aisle (in) | 87.8 |
| Turning radius, outside (in) | 70.9 |
| Turning radius, outside (mm) | 1 780 |
| Free lift height (mm) | 140 |
| Free lift height (in) | 5.5 |
| Mast height - extended (mm) | 4 470 |
| Mast height - extended (in) | 176 |
| Mast height - lowered (in) | 85.5 |
| Mast height - lowered (mm) | 2 170 |
| Maximum fork height (in) | 128 |
| Maximum fork height (mm) | 3 250 |
| Tilting angle, forward/backward (2 stage) (deg) | 6 / 8 |
| Tire type details | Cushion |
| Number of wheels, front/rear | 2x / 2 |
| Tire size - front | 21 x 7 x 15 |
| Tire size - rear | 16 x 6 x 10.5 |
| Tread - front (in) | 34.8 |
| Tread - front (mm) | 885 |
| Tread - rear (mm) | 890 |
| Tread - rear (in) | 35 |
| Relief pressure, maximum (bar) | 186 |
| Relief pressure, maximum (psi) | 2698 |
| Lifting speed, loaded/unloaded (3 stage) (fpm) | 36 V: 56.1 / 102.4; 48 V: 75.8 / 122.0 |
| Lifting peed, loaded/unloaded (3 stage) (mm/s) | 36 V: 285.0 / 520.0 mm/s; 48 V: 385.0 / 620.0 mm/s |
| Lowering speed, loaded/unloaded (3 stage mast) (fpm) | 94.5 |
| Lowering speed, loaded/unloaded (3 stage mast) (mm/s) | 36 V: 480 / 480 mm/s; 48 V: 480 / 480 mm/s |
| Drive motor, 60 minute rating (HP) | 36 V: 13.5; 48 V: 18.0 |
| Drive motor, 60 minute rating (kW) | 36 V: 10.1; 48 V: 13.4 |
| Pump motor, 5 minute rating (kW) | 36 V: 10.9; 48 V: 14.6 |
| Pump motor, 5 minute rating (HP) | 36 V: 14.6; 48 V: 19.6 |
| Battery capacity, minimum (Ah/6hr) | 36 V: 935; 48 V: 600 |
| Load distance from center axle (3 stage)(mm) | 431 |
| Load distance from center axle (3 stage)(in) | 17 |
| Battery compartment: width x length x height (mm) | 985 × 740 × 605 |
| Battery compartment: width x length x height (in) | 38.8 x 29.1 x 23.8 |
| Tilting angle, forward/fackward (3 stage) (deg) | 6 / 5 |
| Battery weight, maximum (lbs) | 36 V: 2,820; 48 V: 2,820 |
| Battery weight, maximum (kg) | 36 V: 1 280; 48 V: 1 280 |
| Battery weight, minumum (lbs) | 36 V: 2,430; 48 V: 2,430 |
| Battery weight, minumum (kg) | 36 V: 1 100; 48 V: 1 100 |
