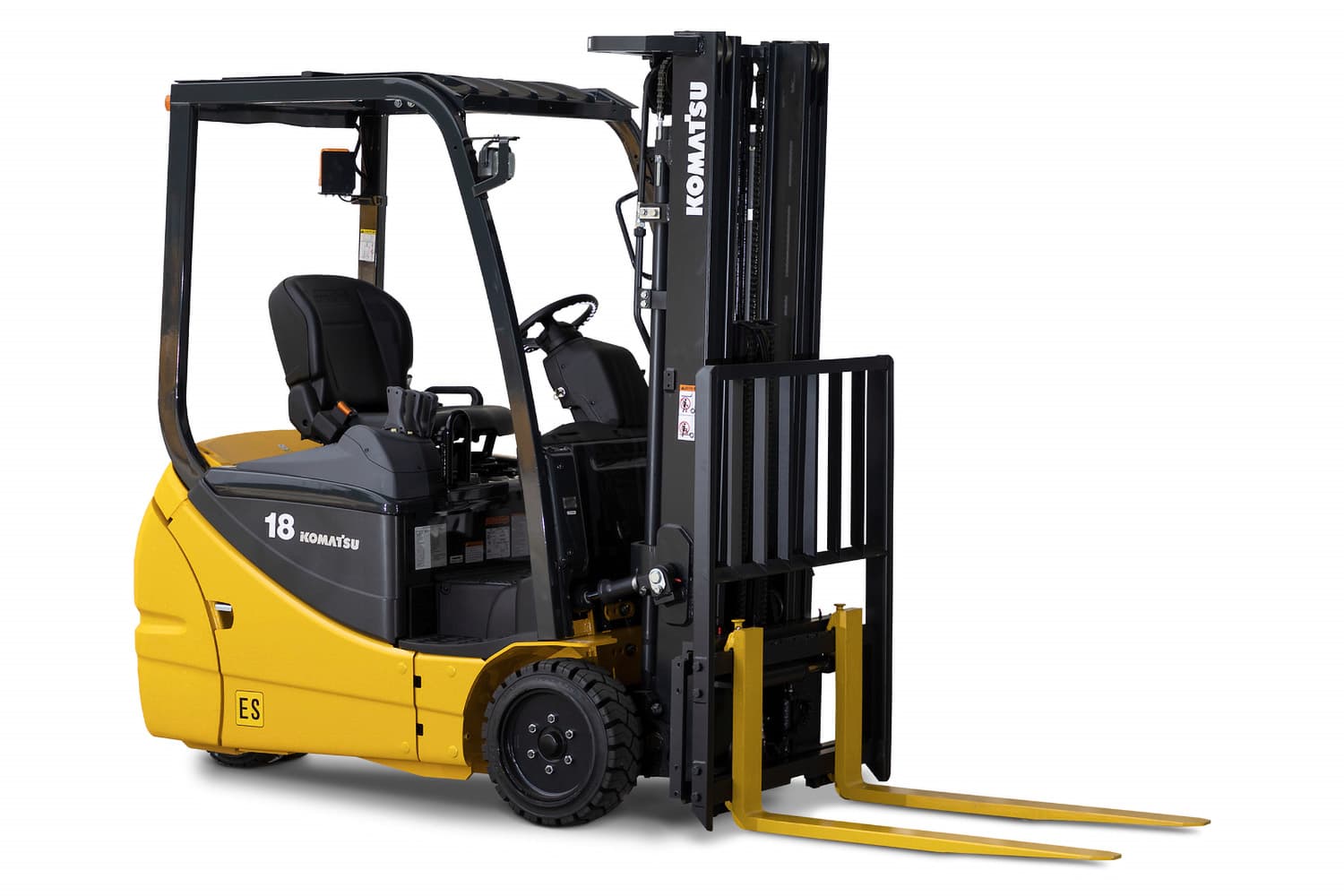

AM50 - FB18MU-12
رقم القطعة: KOMATSU-AM50-FB18MU-12
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
AM50 - FB18MU-12
المواصفات
| Tire type | Cushion/solid pneumatic |
|---|---|
| Power type | Electric (48 V battery) |
| Capacity (kg) | 1 361 - 1 800 |
| Capacity (lbs) | 3,000 - 4,000 |
| Drive motor control | AC Inverter |
| Relief Pressure - attachment (bar) | 158.6 |
| Hydraulic oil capacity (gal) | 6.1 |
| Hydraulic oil capacity (L) | 23 |
| Relief Pressure - attachment (psi) | 2300 |
| Service weight (kg) | 3 465 |
| Service weight (lbs) | 7640 |
| Axle loading - loaded front (lbs) | 9700 |
| Axle loading - loaded front (kg) | 4 400 |
| Axle loading - loaded rear (kg) | 653 |
| Axle loading - loaded rear (lbs) | 1440 |
| Axle loading - unloaded front (lbs) | 3570 |
| Axle loading - unloaded front (kg) | 1 620 |
| Axle loading - unloaded rear (lbs) | 4070 |
| Axle loading - unloaded rear (kg) | 1 846 |
| Travel speed, loaded/unloaded (mph) | 10.0 / 11.0 |
| Travel speed, loaded/unloaded (kph) | 16.1 / 17.7 |
| Lifting speed, loaded/unloaded (2 stage) (mm/s) | 320 / 600 |
| Lifting speed, loaded/unloaded (2 stage) (fpm) | 63.0 / 118.1 |
| Lowering speed, loaded/unloaded (2 stage) (fpm) | 88.6 / 108.3 |
| Lowering speed, loaded/unloaded (2 stage) (mm/s) | 450 / 550 |
| Maximum drawbar pull, loaded (lbs) | 2150 |
| Maximum drawbar pull, loaded (kN) | 9.6 |
| Maximum gradeability (%) | 16 |
| Service brake, operation/control | Foot / Hydraulic |
| Parking brake, operation/control | Hand / Mechanical |
| Steering type | Fully Hydrostatic Power Steering |
| Drive motor (AC) (HP) | 6.0 x 2 |
| Drive motor (AC) (kW) | 4.5 x 2 |
| Pump motor (AC) (kW) | 9 |
| Pump motor (AC) (HP) | 12.1 |
| Battery voltage (V) | 48 |
| Battery capacity, maximum (Ah/6hr) | 600 |
| Minimum battery weight (kg) | 723 |
| Minimum battery weight (lbs) | 1590 |
| Maximum battery weight (kg) | 955 |
| Maximum battery weight (lbs) | 2100 |
| Power source type | Electric |
| Operation type | Sit-Down |
| Capacity @ 600 mm load center (kg) | 1 570 |
| Capacity @ 24 in load center (lbs) | 3500 |
| Load distance from center axle (2 stage)(in) | 15.9 |
| Load distance from center axle (2 stage)(mm) | 405 |
| Wheelbase (mm) | 1 390 |
| Wheelbase (in) | 54.7 |
| Height overhead guard (mm) | 2 070 |
| Height overhead guard (in) | 81.5 |
| Length to fork face (in) | 78.7 |
| Length to fork face (mm) | 2 000 |
| Overall width at drive tires (in) | 43.8 |
| Overall width at drive tires (mm) | 1 115 |
| Forks, thickness x width x length (mm) | 35 x 100 x 1 070 |
| Forks, thickness x width x length (in) | 1.4 x 3.9 x 42.1 |
| Carriage width/ITa class (in) | 38.2 in / II |
| Carriage width/ITa class (mm) | 970 mm / II |
| Ground clearance, center of wheelbase (mm) | 125 |
| Ground clearance, center of wheelbase (in) | 4.9 |
| Ground clearance under mast (mm) | 95 |
| Ground clearance under mast (in) | 3.7 |
| Right angle stacking aisle (mm) | 3 120 / 3 244 |
| Right angle stacking aisle (in) | 122.8 / 127.7 |
| Turning radius, outside (in) | 62.6 |
| Turning radius, outside (mm) | 1 590 |
| Free lift height (mm) | 150 |
| Free lift height (in) | 5.9 |
| Length, with standard forks (mm) | 3 070 |
| Length, with standard forks (in) | 120.9 |
| Mast height - extended (mm) | 4 255 |
| Mast height - extended (in) | 167.5 |
| Mast height - lowered (in) | 84.4 |
| Mast height - lowered (mm) | 2 144 |
| Maximum fork height (in) | 129.9 |
| Maximum fork height (mm) | 3 300 |
| Tilting angle, forward/backward (2 stage) (deg) | 2026-06-10 |
| Tire type details | Cushion/solid pneumatic |
| Number of wheels, front/rear | 2x / 2 (dual) |
| Tire size - front | 18 x 7 x 12.13 |
| Tire size - rear | 15 x 5 x 11.25 |
| Tread - front (in) | 37 |
| Tread - front (mm) | 940 |
| Tread - rear (in) | 6.7 |
