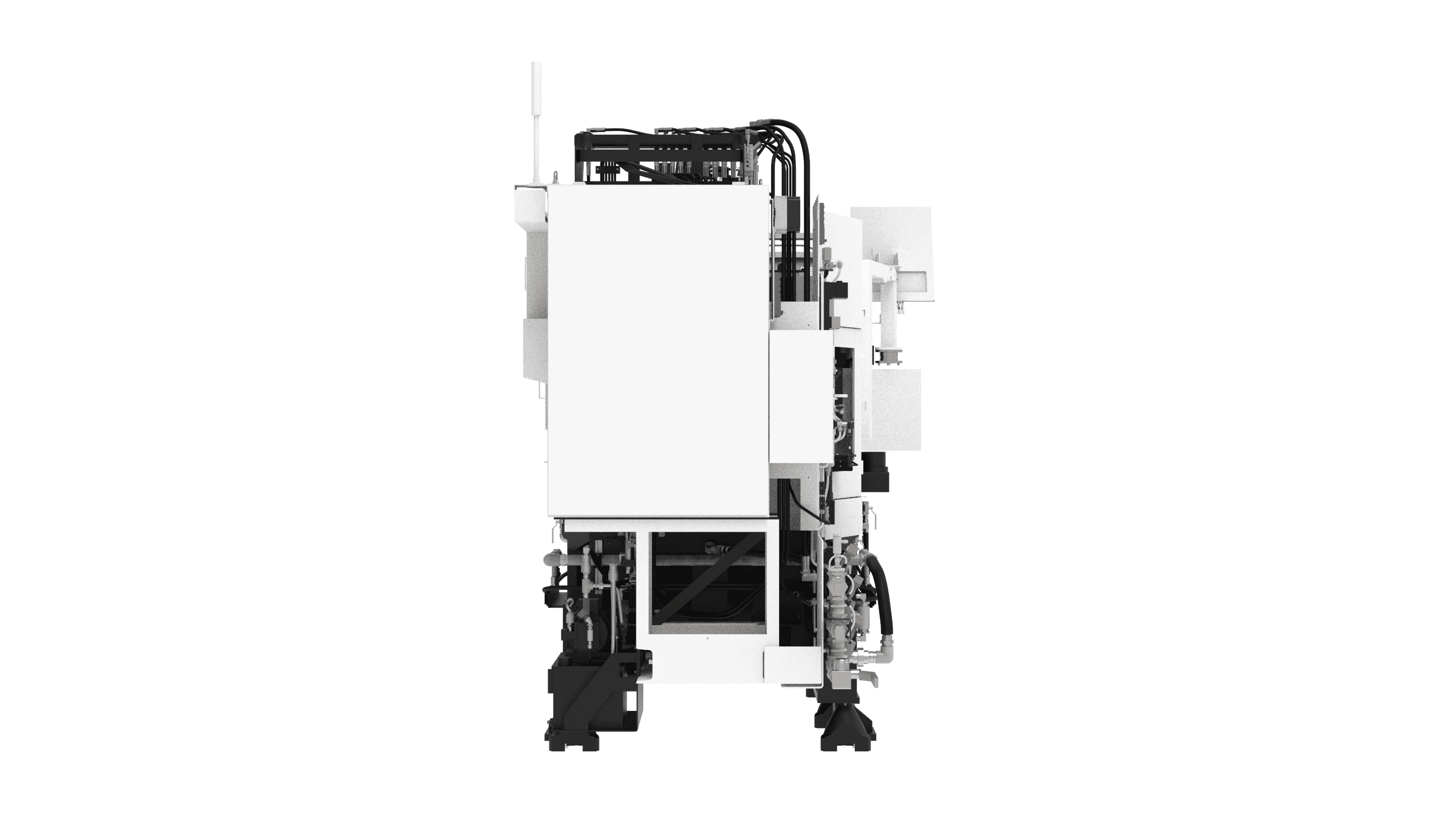

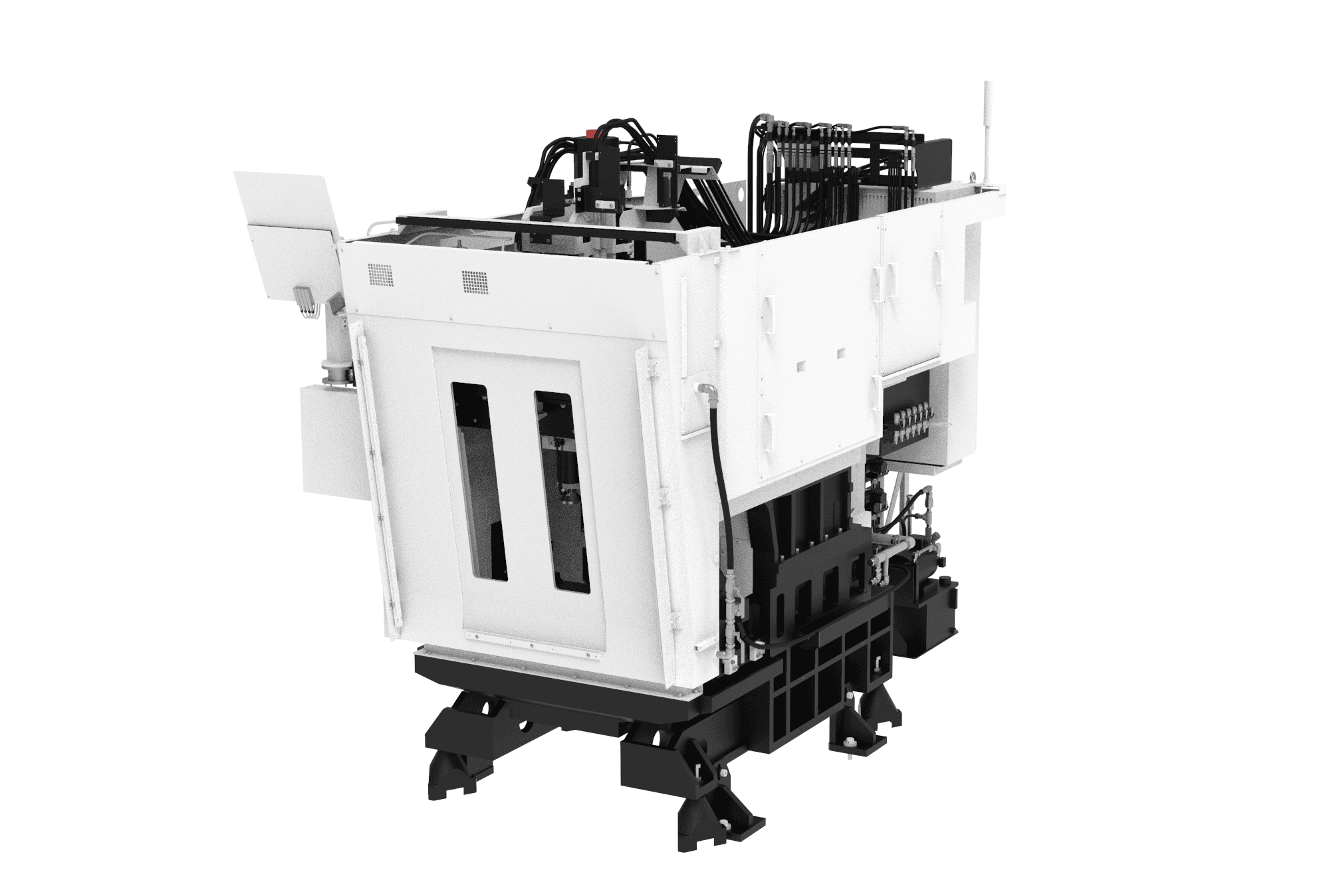

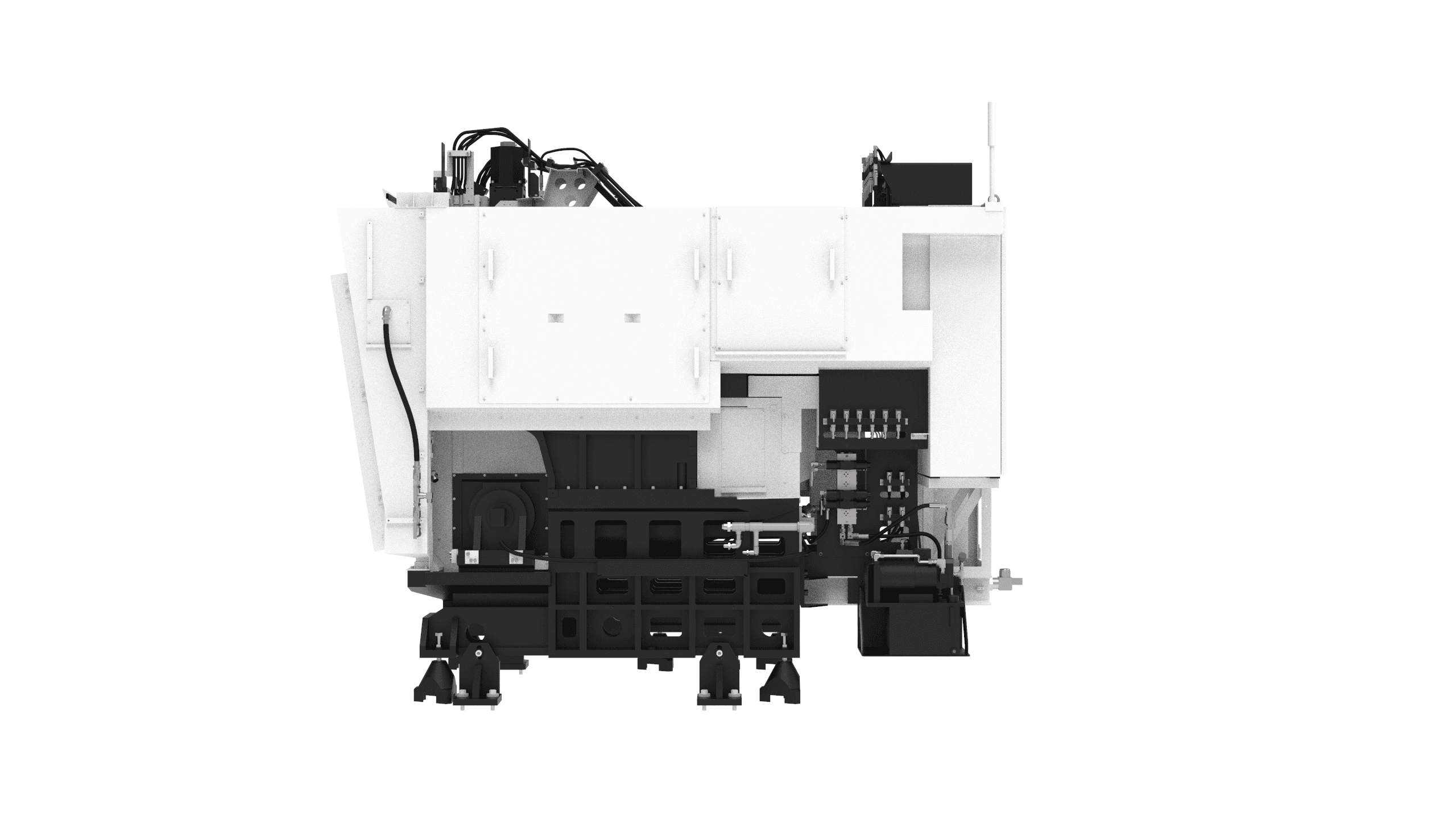

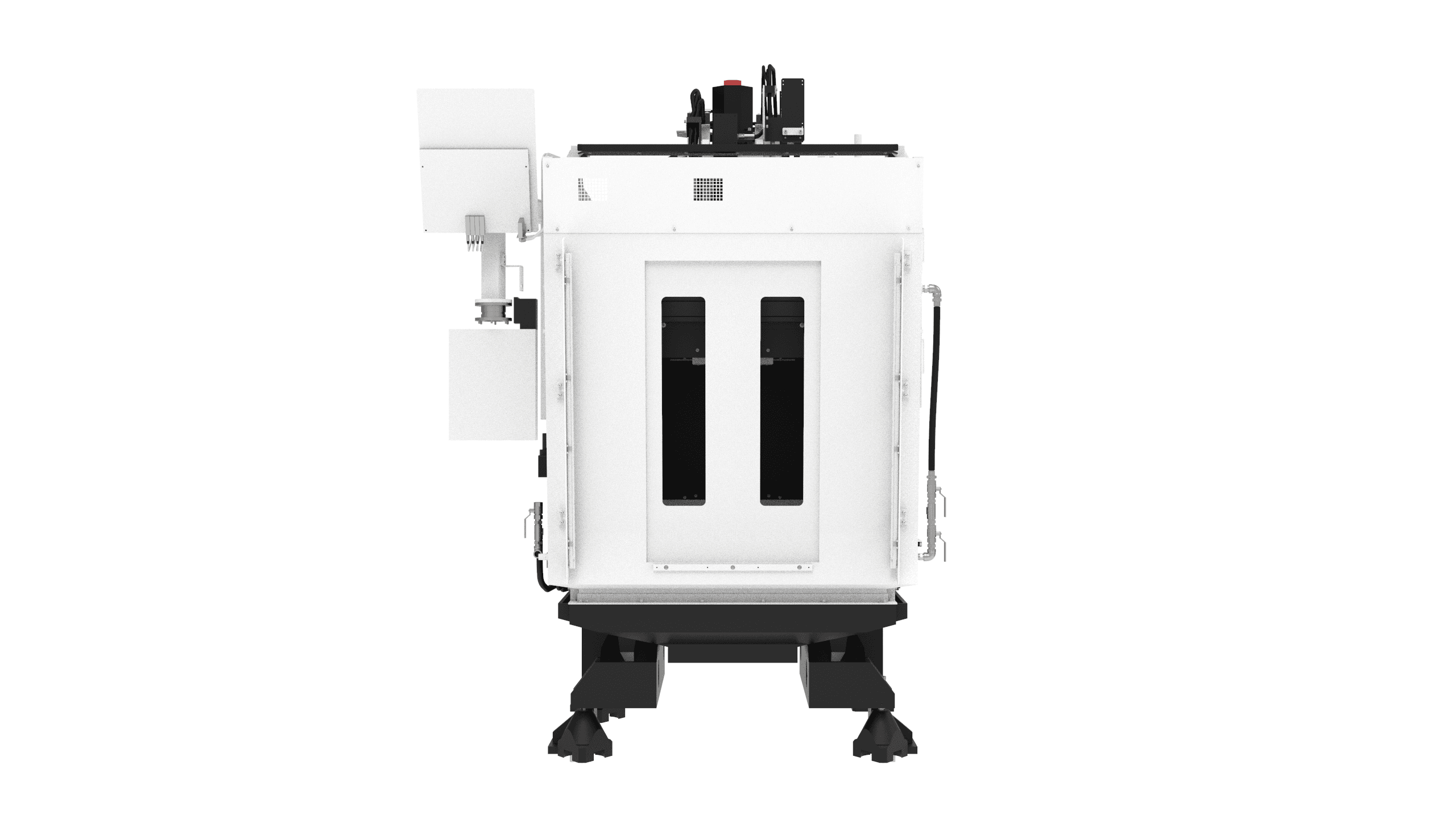

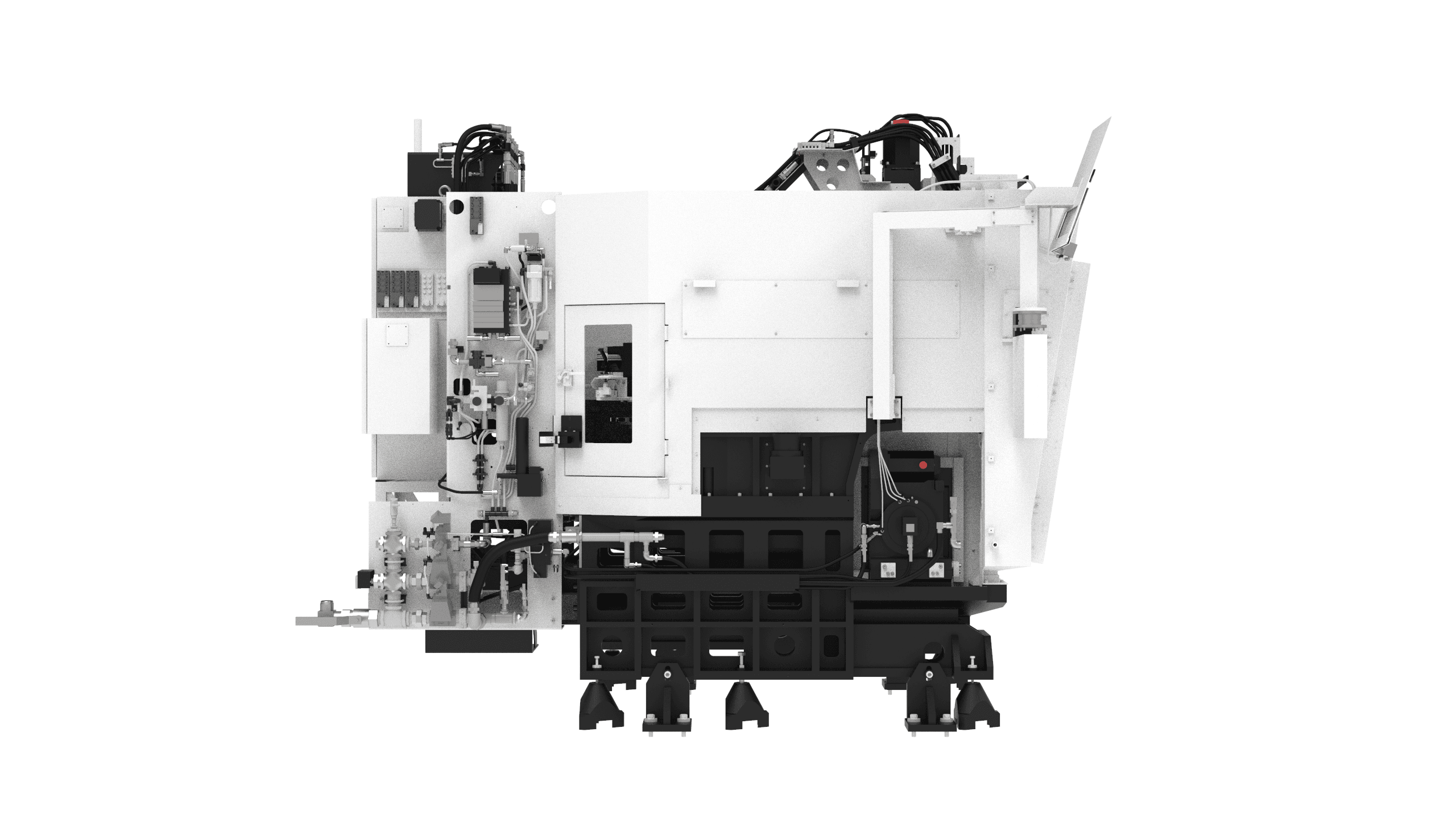

N300V
رقم القطعة: KOMATSU-N300V
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
N300V
المواصفات
| Machine weight (lbs) | 17857 |
|---|---|
| Machine weight (kg) | 8100 |
| Stroke X/Y/Z (in) | 19.7/19.7/15.7 |
| Stroke X/Y/Z (mm) | 500/500/400 |
| Spindle taper type | BT-30 |
| Spindle speed (min-1) | 200-12,000 |
| Spindle motor output (kW) | 11/7.5 |
| Fast forwarding speed (m/min) | 60 |
| Number of tools stored (pcs) | 25 |
| Max tool length (in) | 11.8 |
| Max tool length (mm) | 300 |
| Max tool diameter (in) | Φ5.9 |
| Max tool diameter (mm) | Φ150 |
| Control unit (maker) | FANUC |
| Machine size (W x D x H) (mm) | 1,600 x 3,130 x 3,050 |
| Machine size (W x D x H) (in) | 63.0 x 123.2 x 120.1 |
| Machine mass (kg) | 5500 |
| Machine mass (lbs) | 12125 |
| Spindle taper type (representative) | BT30 |
| Max spindle speed (min-1) | 12000 |
| Number of storage bottles (standard) (pcs) | 25 |
