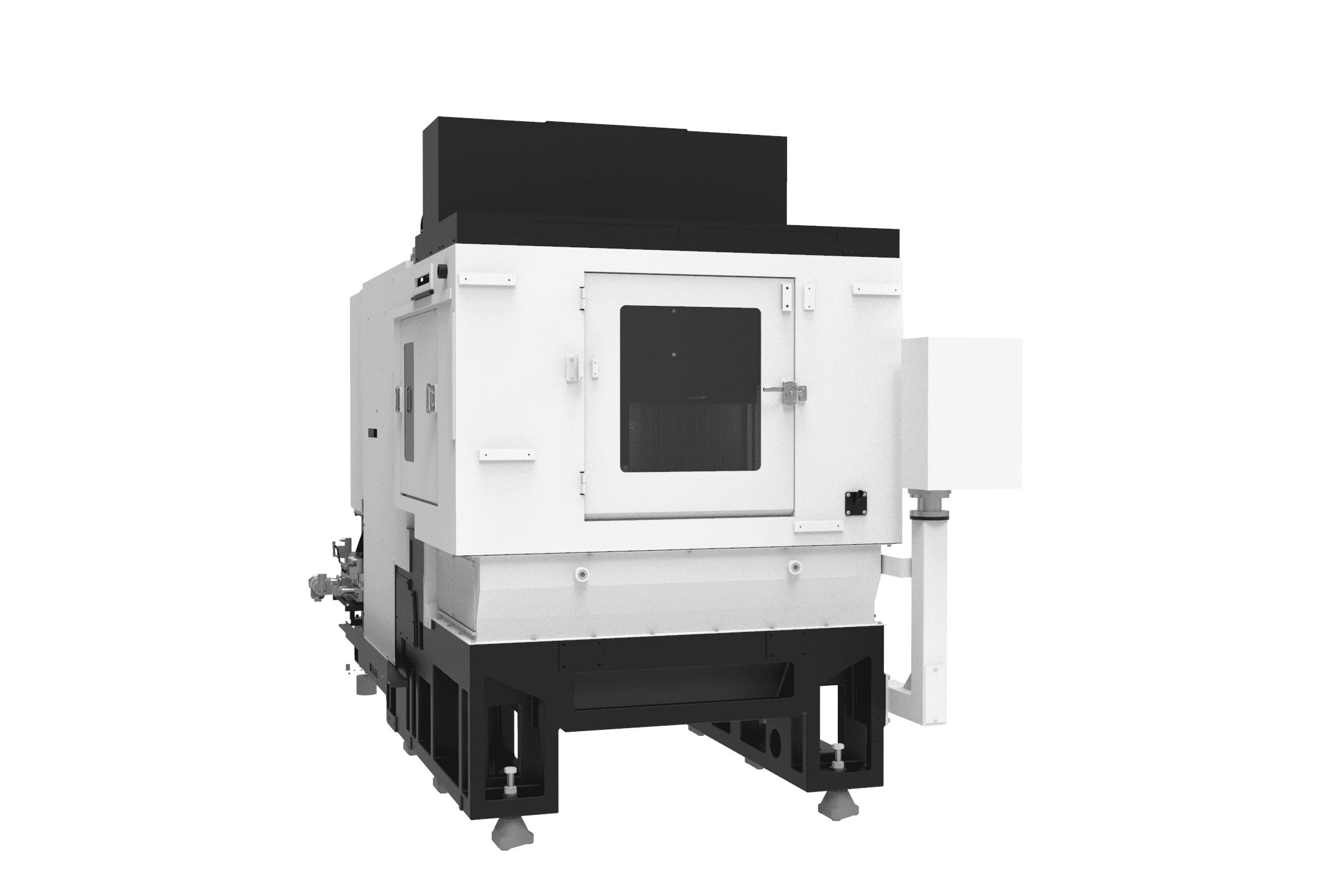

N40HC
رقم القطعة: KOMATSU-N40HC
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
N40HC
المواصفات
| Machine weight (lbs) | 14330 |
|---|---|
| Machine weight (kg) | 6500 |
| Stroke X/Y/Z (in) | 19.7/7.9/15.7 |
| Stroke X/Y/Z (mm) | 500/200/400 |
| Spindle taper type | HSK-A63 |
| Spindle speed (min-1) | 200-8,000 |
| Spindle motor output (kW) | 11/7.5 |
| Fast forwarding speed (m/min) | X/Z=48, Y=30 |
| Number of tools stored (pcs) | 20 |
| Max tool length (in) | 7.9 |
| Max tool length (mm) | 200 |
| Max tool diameter (in) | Φ3.9 |
| Max tool diameter (mm) | Φ100 |
| Control unit (maker) | FANUC |
| Machine size (W x D x H) (mm) | 1,350 x 3,200 x 2,415 |
| Machine size (W x D x H) (in) | 53.1 x 126.0 x 95.1 |
| Machine mass (kg) | 3800 |
| Machine mass (lbs) | 8378 |
| Spindle taper type (representative) | HSK-A63 |
| Max spindle speed (min-1) | 8000 |
| Number of storage bottles (standard) (pcs) | 20 |
