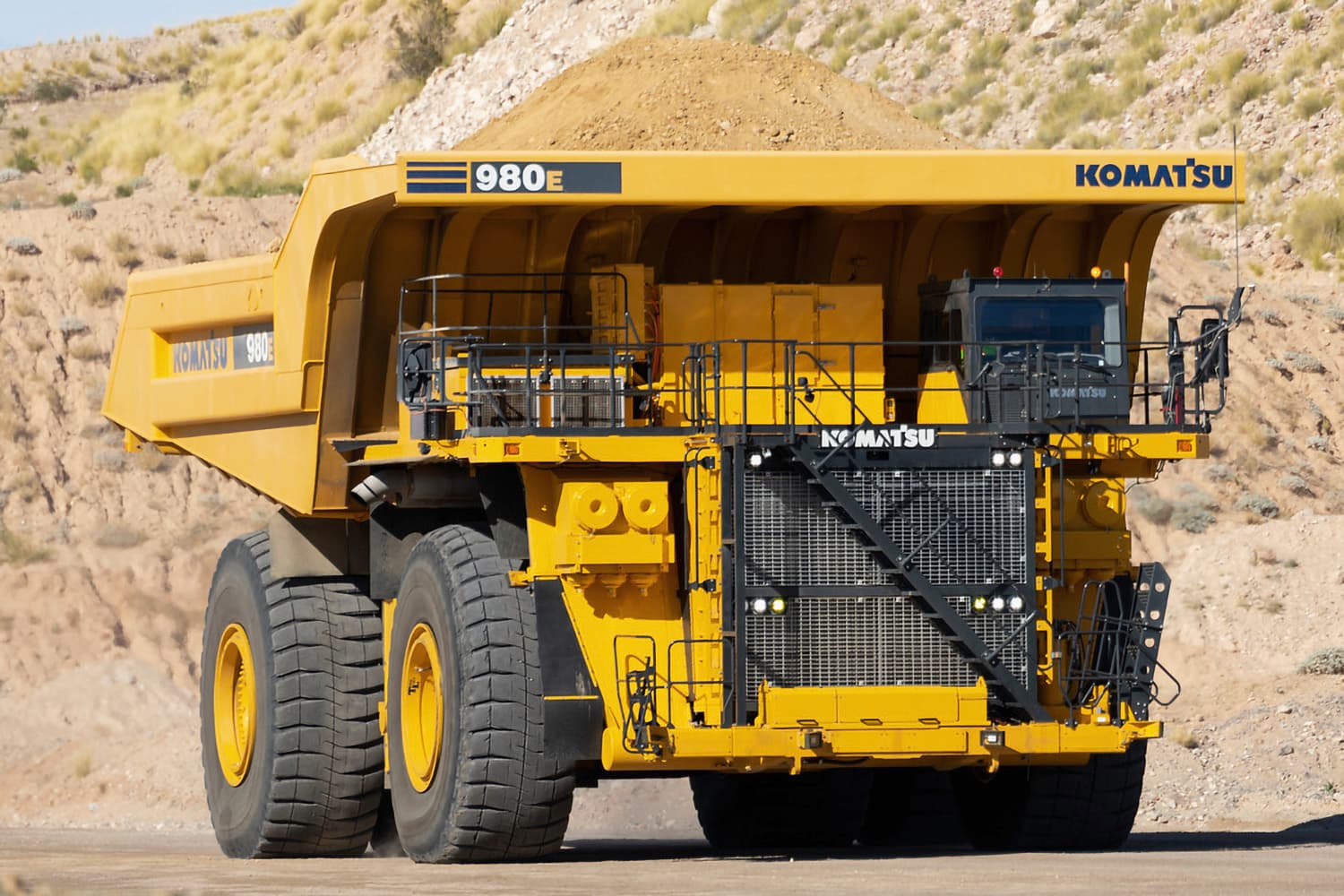

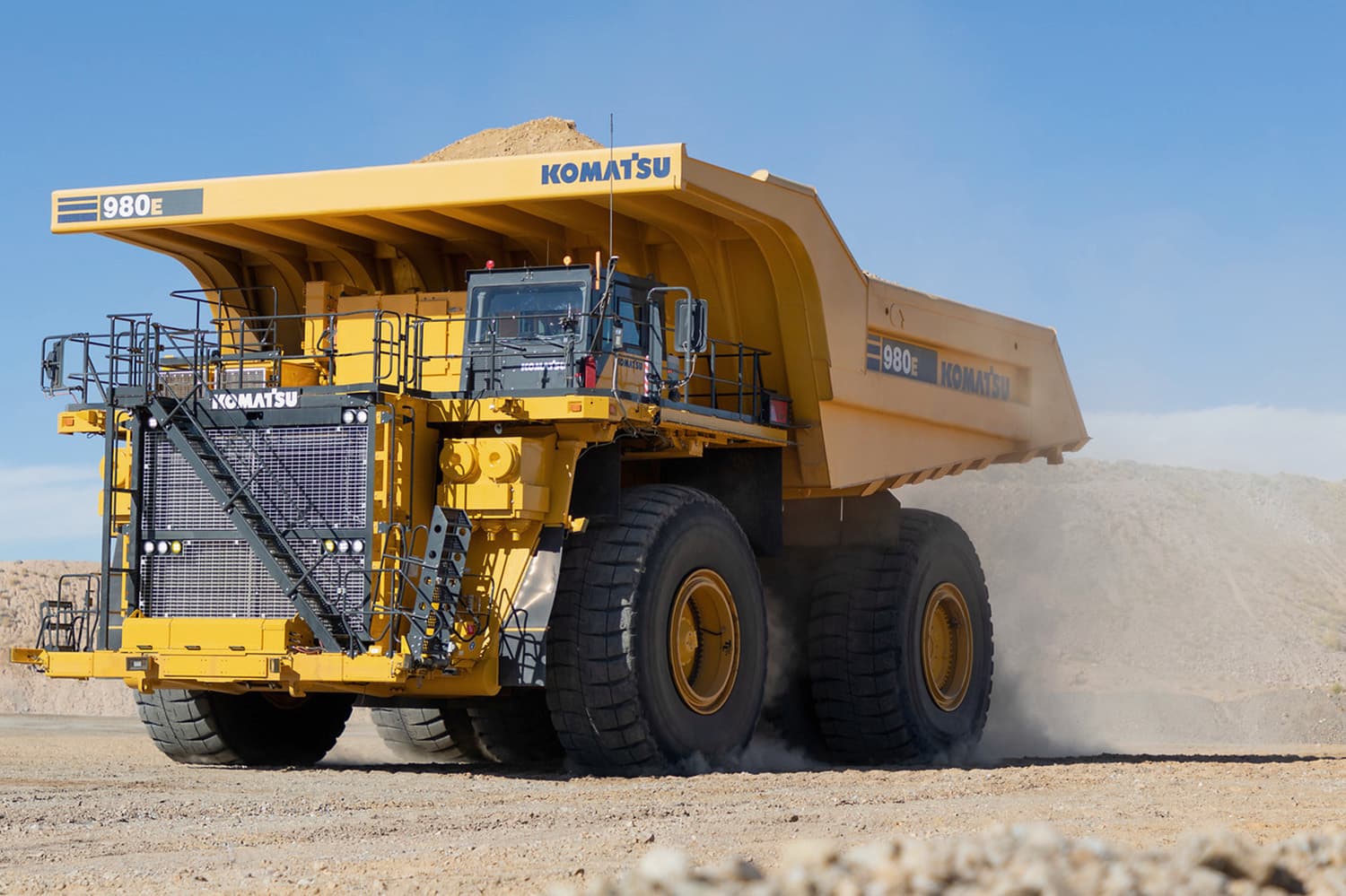

980E-5SE
رقم القطعة: KOMATSU-980E-5SE
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
980E-5SE
المواصفات
| Operating weight (kg) | 635 029 |
|---|---|
| Operating weight (lbs) | 1,400,000 |
| Engine model | Komatsu SDA16V190-1 |
| Number of cylinders | 16 |
| Fuel tank (US gal) | 1,400 |
| Fuel tank (L) | 5 300 |
| Hydraulic system (US gal) | 510 |
| Hydraulic system (L) | 1 930 |
| Service brake | Oil-cooled, hydraulic actuated, multiple disc brakes at each wheel |
| Alternator | GTA-63 |
| Cooling system (gal) | 262 |
| Cooling system (L) | 992 |
| Parking brake type | Multiple disc, spring-applied, hydraulically-released, dry brakes on inboard end of each wheel motor rotor shaft. Rated to hold on ±15% grade at maximum gross vehicle weight. |
| Gross horsepower (HP) | 4,400 @1,800 rpm |
| Gross horsepower (kW) | 3 281 @ 1 800 rpm |
| Capacity (mt) | 363 |
| Capacity (st) | 400 |
| Standard tire and rims | 59/80 R63 |
| Nominal payload (metric tons) | 363 |
| Nominal payload (short tons) | 400 |
| Number of operating cycles | 4 |
| Truck fuel type | Diesel |
| Gross horsepower (HP) @ 1,800 rpm | 4,400 |
| Gross horsepower (kW) @ 1,800 rpm | 3 281 |
| Dry weight (lbs) | 29,950 |
| Casting material and tensile strength steel (psi) | 90,000 |
| Dry weight (kg) | 13 585 |
| Casting material and tensile strength steel (MPa) | 620.5 |
| Net fly wheel power @ 1,800 rpm (kW) | 2 460 |
| Drive axle alignment | Swing link between frame and axle |
| Net fly wheel power @ 1,800 rpm (HP) | 3,346 |
| Drive axle mounting | Pin and spherical bushing |
| Plate material and tensile strength steel (psi) | 70,000 |
| Plate material and tensile strength steel (MPa) | 482.6 |
| Rail depth minimum (mm) | 864 |
| Rail depth minimum (in) | 34 |
| Rail width (mm) | 305 |
| Rail width (in) | 12 |
| Side plate thickness front (mm) | 32 |
| Side plate thickness front (in) | 1.26 |
| Top bottom plate thickness (mm) | 45 |
| Side plate thickness rear (mm) | 25 |
| Top bottom plate thickness (in) | 1.77 |
| Side plate thickness rear (in) | 0.98 |
| Lighting (volt) | 24 |
| Cranking motors (volt) | Three, 24 volt |
| Alternator (volt) | 24 |
| Crankcase (US gal) | 132 |
| Alternator (amps) | 250 |
| Crankcase (L) | 500 |
| Floor sheet tensile strength steel (mm) | 16 (outer), 21 (center) |
| Floor sheet tensile strength steel (in) | 0.63 (outer), .75 (center) |
| Front sheet tensile strength steel outer (mm) | 10 |
| Front sheet tensile strength steel outer (in) | 0.39 |
| Side sheet tensile strength steel (mm) | 8 |
| Side sheet tensile strength steel (in) | 0.39 |
| Canopoy sheet (in) | 0.24 |
| Canopy sheet (mm) | 6 |
| SAE heaped 2:1 (yd^3) | 327 |
| SAE heaped 2:1 (m^3) | 250 |
| Standard Komatsu bodyweight (kg) | 42 637 |
| Standard Komatsu bodweight (lbs) | 94,000 |
| Hoist steering | Dual, in-line, high pressure |
| Turning circle (ft) | 105 |
| Turning circle (m) | 32 |
| Reservoir (US gal) | 250 |
| Reservoir (L) | 947 |
| Filtration type | In-line replaceable elements |
| Suction type | Single, full-flow, 100 mesh |
| Brake component cabinet | Above deck, easily accessible with diagnostic test connections |
| Hoist type | Two 3-stage dual-acting outboard cylinders, internal cushion valve, over-center dampening |
| Float-down empty | 17 |
| Power-up loaded | 21 |
| Power-down | 16 |
| Pumps | Two pumps, single package, in-line |
| Hoist and brake cooling (psi) | Tandem gear pump with output of 240 gpm at 1,800 rpm and 2,750 psi |
| Hoist and brake cooling (kPa) | Tandem gear pump with output of 931 lpm at 1,800 rpm and 18 960 kPa |
| Steering and brake for system relief (kPa) | Variable displacement piston pump with output of 246 lpm at 1,800 rpm and 20 685 kPa |
| Steering and brake for hoist (psi) | Variable displacement piston pump with output of 64 gpm at 1,800 rpm and 3,000 psi |
| Steering and brake (psi) | 3,000 |
| Steering and brake (kPa) | 20,685 |
| Hoist (kPa) | 17,237 |
| Hoist (psi) | 2,500 |
| Auto apply system | Automatically applied prior to hydraulic system pressure dropping below level required to meet secondary stopping requirements |
| Electric dynamic retarder (HP) | 6,000 |
| Max service apply pressure (psi) | 2,750 |
| Electric dynamic retarder (kW) | 4 476 |
| Max service apply pressure (kPa) | 18,960 |
| Secondary braking system | Complies with ISO-3450 Standards |
| Total friction area per brake (in^2) | 16,078 |
| Wheel brake locks | Switch activated |
| Total friction area per brake (cm^2) | 103 729 |
| Traction system type | Wheel spin-slide control |
| Control | AC Torque Control System |
| Max speed (mph) | 40 |
| Max speed (km/h) | 64.5 |
| Ratio | 35.02:1 |
| Motorized wheels | GDY108D |
| Radiator frontal area (m^2) | 8.46 |
| Radiator frontal area (ft^2) | 91 |
| Max front stroke (mm) | 303 |
| Max front stroke (in) | 11.92 |
| Max rear axle osicillation (degrees) | 6.5 |
| Max rear stroke (in) | 9.4 |
| Max rear stroke (mm) | 239 |
| Flange mount, five piece rim (in) | 44 x 63 x 5.5 in Rims rated at 758 kPa 110 psi cold inflation pressure. |
| Empty vehicle weight - front axle distribution (kg) | 149 813 |
| Flange mount, five piece rim (mm) | 1 118 x 1 600 x 140 mm Rims rated at 758 kPa 110 psi cold inflation pressure |
| Empty vehicle weight - front axle distribution (lbs) | 330,282 |
| Standard tire weight (lbs) | 71,838 |
| Empty vehicle weight - rear axle distribution (kg) | 117 710 |
| Standard tire weight (kg) | 32 585 |
| Empty vehicle weight - rear axle distribution (lbs) | 259,506 |
| Total empty vehicle weight (kg) | 267 523 |
| Single impeller in line blower (m^3/min) cfm | (127.4) 4,500 |
| Total empty vehicle weight (lbs) | 589,788 |
| Empty vehicle weight - front axle (lbs) | 476,000 |
| Empty vehicle weight - front axle (kg) | 215 910 |
| Empty vehicle weight - rear axle (lbs) | 924,000 |
| Empty vehicle weight - rear axle (kg) | 419 119 |
| Nominal gross vehicle weight (lbs) | 1,400,000 |
| Nominal gross vehicle weight (kg) | 635 029 |
