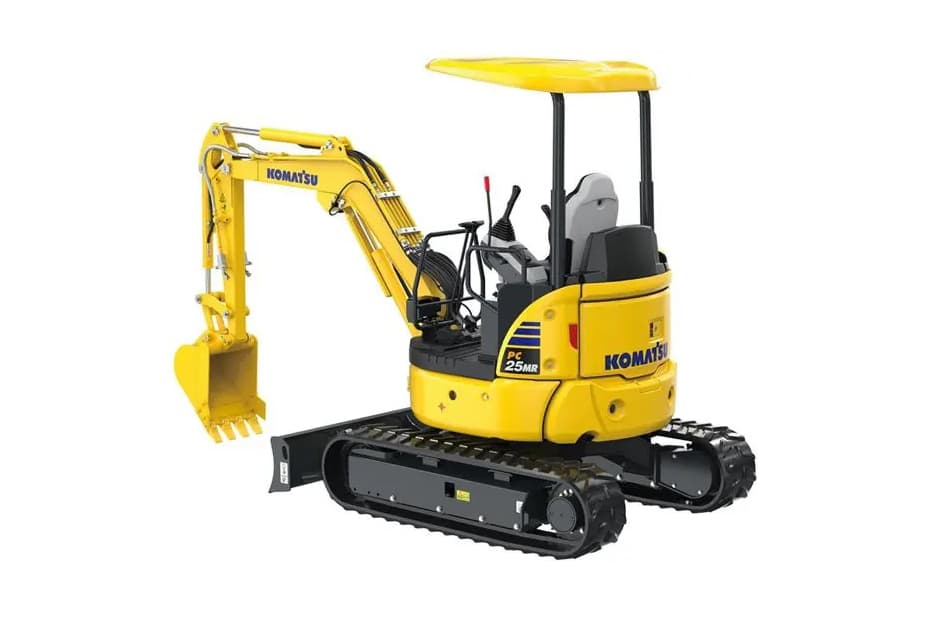

PC25MR-5
رقم القطعة: KOMATSU-PC25MR-5
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
PC25MR-5
المواصفات
| Gradeability | 58 % |
|---|---|
| Operating weight (kg) | 2,550 |
| Operating weight (lbs) | 5,622 |
| Number of track rollers (each side) | 3 |
| Number of shoes (each side) | 35 |
| Number of carrier rollers (each side) | 0 |
| Engine model | Komatsu 3D67E-2 |
| Piston displacement (L) | 0.78 |
| SAEJ1995 - Gross (kW) | 11.2 |
| SAEJ1995 - Gross (HP) | 15 |
| ISO 9249 / SAE J1349 - Net (HP) | 15 |
| Fuel tank (L) | 19 |
| Coolant (US gal) | 0.82 |
| Coolant (L) | 3.1 |
| Hydraulic tank (L) | 15.2 |
| Hydraulic tank (US gal) | 4.02 |
| Pumps for | Boom, arm, bucket, swing, and travel circuits |
| Maximum flow (US gpm) | 25.33 |
| Maximum flow (L/min) | 95.9 |
| HydrauMind Type | HydrauMind System |
| Travel | 2 x Variable capacity |
| Swing | 1 x Fixed capacity |
| Maximum drawbar pull (lbs) | 3,748 |
| Swing speed (rpm) | 8.9 |
| Fan drive method for radiator cooling | Mechanical |
| ISO 9249 / SAE J1349 - Net (kW) | 11.2 |
| Engine (L) | 3.3 |
| Engine (US gal) | 0.87 |
| Track adjuster | Grease |
| Bucket capacity (m³) | 0.033-0.09 |
| Bucket capacity (yd³) | 0.04-0.12 |
| Engine power (HP) | 21 |
| Engine power (kW) | 15.8 |
| Drive method | Fully hydrostatic |
| Service brake | Hydraulic lock |
| Driven by | Hydraulic motor |
| Piston displacement (in³) | 47.6 |
| DEF tank (US gal) | None |
| DEF tank (L) | None |
| Maximum drawbar pull (kg) | 1700 |
