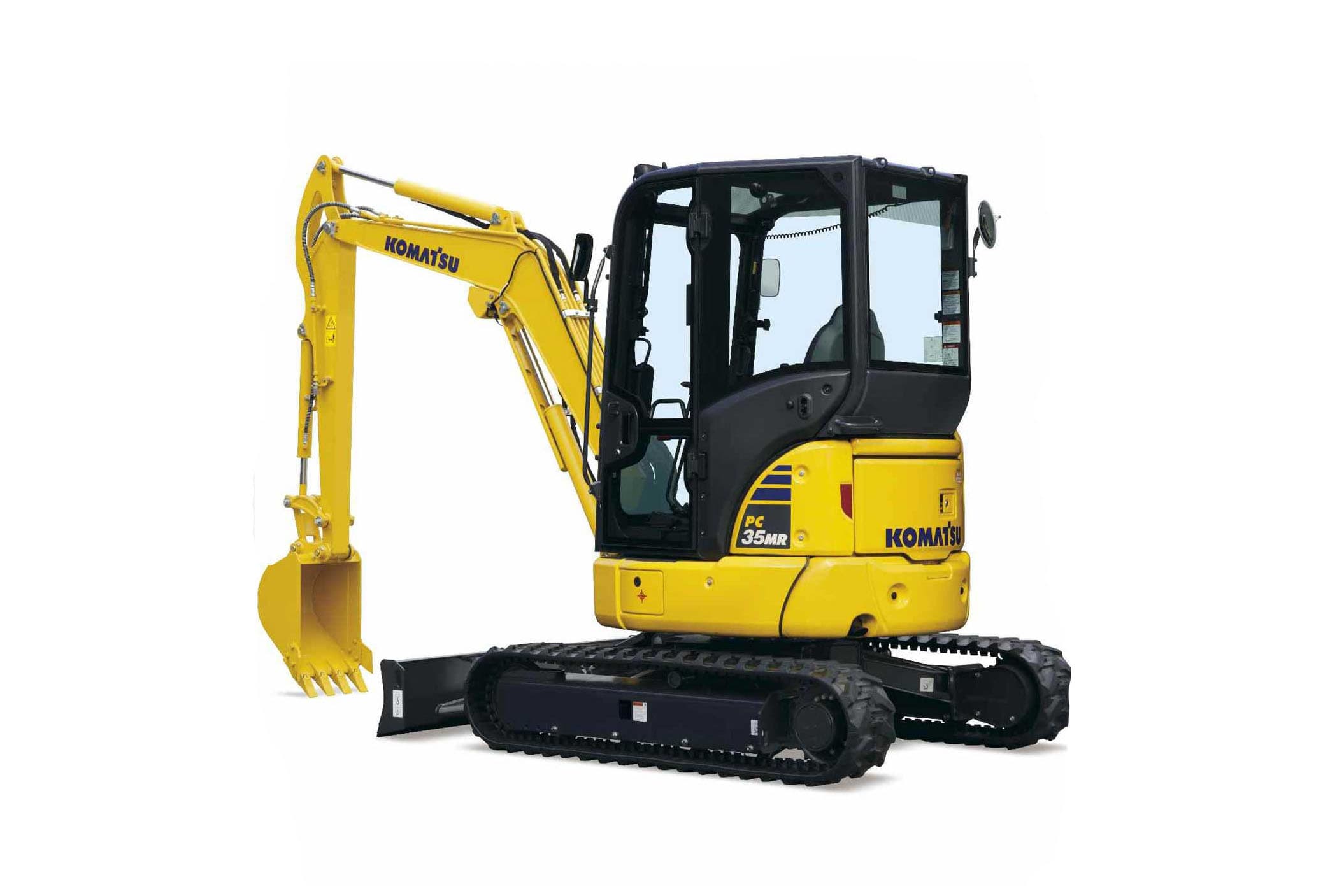

PC35MR-5
رقم القطعة: KOMATSU-PC35MR-5
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
PC35MR-5
المواصفات
| Gradeability | 30 % |
|---|---|
| Operating weight (kg) | 3620 |
| Operating weight (lbs) | 7983 |
| Number of track rollers (each side) | 4 |
| Number of shoes (each side) | 44 |
| Number of carrier rollers (each side) | 1 |
| Engine model | Komatsu 3D88E-7 |
| Aspiration | Cooled EGR |
| Piston displacement (L) | 1.642 |
| SAEJ1995 - Gross (kW) | 18.2 |
| SAEJ1995 - Gross (HP) | 24.4 |
| ISO 9249 / SAE J1349 - Net (HP) | 23.3 |
| Fuel tank (L) | 40.6 |
| Coolant (US gal) | 0.87 |
| Coolant (L) | 3.3 |
| Hydraulic tank (L) | 39 |
| Hydraulic tank (US gal) | 10.3 |
| Pumps for | Boom, arm, bucket, and travel circuits |
| Maximum flow (US gpm) | 18.43 |
| Maximum flow (L/min) | 69.8 |
| HydrauMind Type | HydrauMind System |
| Implement circuits (psi) | 3770.48 |
| Travel circuit (psi) | 3769 |
| Swing circuit (psi) | 3129 |
| Implement circuits (MPa) | 25.97 |
| Arm (Number of cylinders – bore x stroke x rod diameter)(mm) | 1-75 x 595 x 45 |
| Arm (Number of cylinders – bore x stroke x rod diameter)(in) | 2.95 x 23.43 x 1.97 |
| Swing circuit (MPa) | 21.57 |
| Travel circuit (MPa) | 26 |
| Travel | 2 x axial piston motors with parking brake |
| Swing | 1 x axial piston motor with swing holding brake |
| Maximum drawbar pull (kgf) | 3400 |
| Parking brake | Mechanical disc brake |
| Swing reduction | Planetary gear |
| Holding brake/Swing lock | Mechanical disc brake |
| Swing speed (rpm) | 9 |
| Fan drive method for radiator cooling | Mechanical |
| ISO 9249 / SAE J1349 - Net (kW) | 17.4 |
| Engine (L) | 6.7 |
| Engine (US gal) | 1.77 |
| Center frame | X-frame leg |
| Track frame | Box-section |
| Track adjuster | Hydraulic |
| Bucket capacity (m³) | 0.11 |
| Bucket capacity (yd³) | 0.14 |
| Engine power (HP) | 23 |
| Engine power (kW) | 17.4 |
| Drive method | Fully hydrostatic |
| Service brake | Hydraulic lock |
| Implement circuits (kgf/cm²) | 265 |
| Swing circle lubrication | Grease-bathed |
| Pilot circuit (kgf/cm²) | 32 |
| Driven by | Hydrostatic |
| Swing circuit (kgf/cm²) | 220 |
| Travel circuit (kgf/cm²) | 265 |
| Piston displacement (in³) | 100.16 |
| DEF tank (US gal) | None |
| DEF tank (L) | None |
