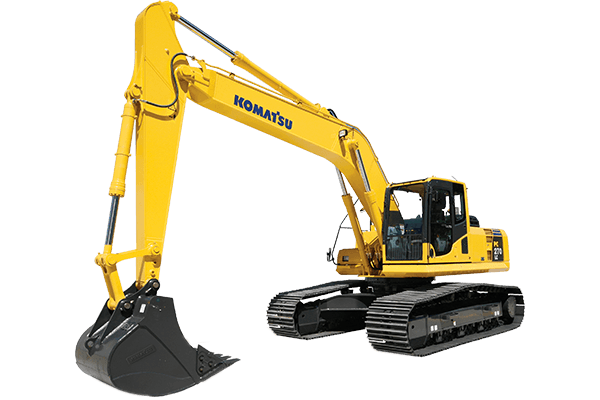

PC270LC-8
رقم القطعة: KOMATSU-PC270LC-8
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
PC270LC-8
المواصفات
| Gradeability | 70%, 35 degrees |
|---|---|
| Operating weight (kg) | 28040 |
| Operating weight (lbs) | 61818 |
| Number of track rollers (each side) | 7 - 8 |
| Number of shoes (each side) | 45 - 48 |
| Number of carrier rollers (each side) | 2 |
| Engine model | Komatsu SAA6D107E-1 |
| Aspiration | Turbocharged, aftercooled |
| Piston displacement (L) | 6.69 |
| SAEJ1995 - Gross (kW) | 149 |
| SAEJ1995 - Gross (HP) | 200 |
| ISO 9249 / SAE J1349 - Net (HP) | 187 |
| Fuel tank (US gal) | 105.7 |
| Fuel tank (L) | 400 |
| Coolant (US gal) | 5.44 |
| Coolant (L) | 20.6 |
| Final drive (US gal) | 2.2 |
| Final drive (L) | 8.5 |
| Hydraulic tank (L) | 132 |
| Hydraulic tank (US gal) | 34.9 |
| Number of selectable working modes | 4 |
| Pumps for | Boom, arm, attachment, swing and travel circuit |
| Maximum flow (US gpm) | 119 |
| Maximum flow (L/min) | 450 |
| HydrauMind Type | HydrauMind System |
| Implement circuits (psi) | 5404.85 |
| Travel circuit (psi) | 5405 |
| Swing circuit (psi) | 4196 |
| Implement circuits (MPa) | 37.27 |
| Arm (Number of cylinders – bore x stroke x rod diameter)(mm) | 1-150 x 1635 x 110 |
| Arm (Number of cylinders – bore x stroke x rod diameter)(in) | 5.91 x 64.37 x 4.33 |
| Swing circuit (MPa) | 28.94 |
| Travel circuit (MPa) | 37.3 |
| Travel | 2 x axial piston motors |
| Swing | 1 x axial piston motor |
| Maximum drawbar pull (kgf) | 25400 |
| Maximum drawbar pull (lbs) | 59330 |
| Parking brake | Mechanical disc brake |
| High (mph) | 3.4 |
| High (kph) | 5.5 |
| Swing reduction | Planetary gear |
| Holding brake/Swing lock | Mechanical disc brake |
| Swing speed (rpm) | 10.5 |
| Bore (mm) | 107 |
| Bore (in) | 4.21 |
| Stroke (in) | 4.88 |
| Stroke (mm) | 124 |
| Fan drive method for radiator cooling | Mechanical |
| ISO 9249 / SAE J1349 - Net (kW) | 140 |
| Engine (L) | 23.1 |
| Engine (US gal) | 6.1 |
| Center frame | X-frame leg |
| Track frame | Box-section |
| Track adjuster | Hydraulic |
| Bucket capacity (m³) | 1.39 |
| Bucket capacity (yd³) | 1.82 |
| Engine power (HP) | 187 |
| Engine power (kW) | 140 |
| Drive method | Fully hydrostatic |
| Service brake | Hydraulic lock |
| Implement circuits (kgf/cm²) | 380 |
| Swing circle lubrication | Grease-bathed |
| Pilot circuit (kgf/cm²) | 33 |
| Driven by | Hydrostatic |
| Swing circuit (kgf/cm²) | 295 |
| Travel circuit (kgf/cm²) | 380 |
| Piston displacement (in³) | 408.2 |
| Swing drive (L) | 8.2 |
| Swing drive (US gal) | 2.2 |
| DEF tank (US gal) | None |
| DEF tank (L) | None |
