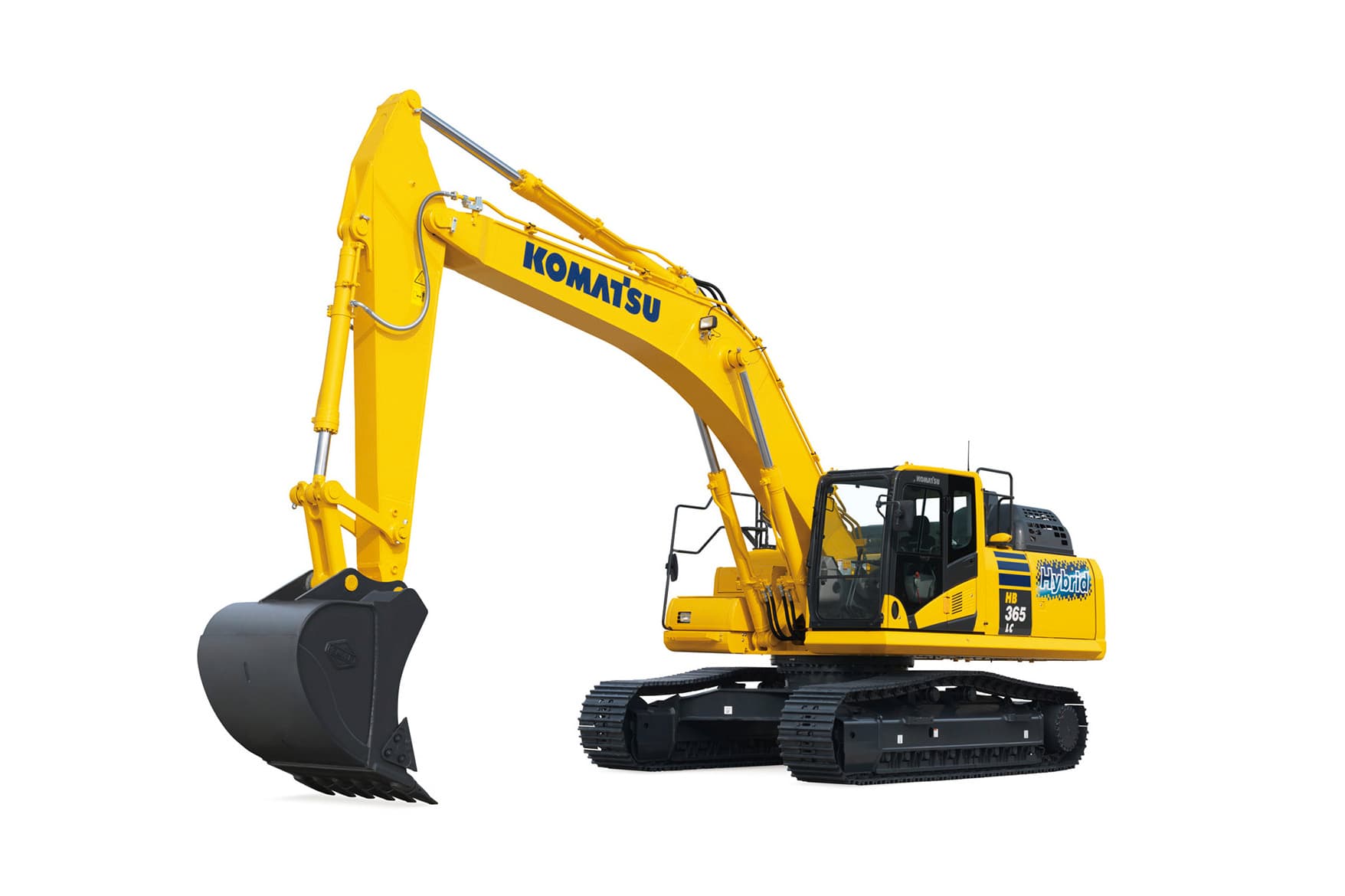

HB365LC-3
رقم القطعة: KOMATSU-HB365LC-3
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
HB365LC-3
المواصفات
| Gradeability | 70%, 35° |
|---|---|
| Operating weight (kg) | 38780 |
| Operating weight (lbs) | 85494 |
| Number of track rollers (each side) | 8 |
| Number of shoes (each side) | 48 |
| Number of carrier rollers (each side) | 2 |
| Engine model | Komatsu SAA6D114E-6* |
| Aspiration | Turbocharged, aftercooled, cooled EGR |
| Piston displacement (L) | 8.85 |
| Governor | All-speed control, electronic. |
| SAEJ1995 - Gross (kW) | 202 |
| SAEJ1995 - Gross (HP) | 271.89 |
| ISO 9249 / SAE J1349 - Net (HP) | 270 |
| Fuel tank (L) | 605 |
| Coolant (US gal) | 11.09 |
| Coolant (L) | 42 |
| Hydraulic tank (L) | 188 |
| Hydraulic tank (US gal) | 49.68 |
| Pumps for | Boom, arm, bucket, swing, and travel circuits |
| Maximum flow (US gpm) | 141.36 |
| Maximum flow (L/min) | 535 |
| Implement circuits (psi) | 5546.09 |
| Travel circuit (psi) | 5547 |
| Implement circuits (MPa) | 38.25 |
| Arm (Number of cylinders – bore x stroke x rod diameter)(mm) | 160 x 1825 x 110 |
| Arm (Number of cylinders – bore x stroke x rod diameter)(in) | 6.30 x 71.85 x 4.33 |
| Pilot circuit (MPa) | 3.2 |
| Travel circuit (MPa) | 38.2 |
| Travel | 2 x axial piston motors with parking brake |
| Swing | 1 x axial piston motor with swing holding brake |
| Maximum drawbar pull (kgf) | 29570 |
| Parking brake | Mechanical disc brake |
| High (mph) | 3.42 |
| High (kph) | 5.5 |
| Low (kph) | 3.2 |
| Low (mph) | 1.99 |
| Swing reduction | Planetary gear |
| Holding brake/Swing lock | Mechanical disc brake |
| Swing speed (rpm) | 9.5 |
| Bore (mm) | 114 |
| Bore (in) | 4.49 |
| Stroke (in) | 5.69 |
| Stroke (mm) | 144.5 |
| Fan drive method for radiator cooling | Mechanical with viscous fan clutch |
| ISO 9249 / SAE J1349 - Net (kW) | 201 |
| Engine (L) | 38.5 |
| Fan at maximum speed - Net (HP) | 264 |
| Engine (US gal) | 10.17 |
| Fan at maximum speed - Net (kW) | 197 |
| Center frame | X-frame |
| Track frame | Box-section |
| Track adjuster | Hydraulic |
| Bucket capacity (m³) | 1.96 |
| Bucket capacity (yd³) | 2.56 |
| Engine power (HP) | 269 |
| Engine power (kW) | 201 |
| Drive method | Fully hydrostatic, electric drive |
| Service brake | Electric brake |
| Implement circuits (kgf/cm²) | 390 |
| Swing circle lubrication | Grease-bathed |
| Swing torque (kg-m) | 11386 |
| Swing torque (ft-lbs) | 82413.9 |
| Pilot circuit (kgf/cm²) | 33 |
| Travel circuit (kgf/cm²) | 390 |
| Piston displacement (in³) | 540.05 |
| Swing drive (L) | 15.6 |
| Swing drive (US gal) | 4.12 |
| DEF tank (US gal) | 10.36 |
| DEF tank (L) | 39.2 |
| Exterior – ISO 6395 (dB(A)) | 101 |
| Supply for control circuit | Self-reducing valve |
| Operator – ISO 6396 (dB(A)) | 69 |
| Mid (kph) | 4.5 |
| Motor-generator (US gal) | 2.25 |
| Motor-generator (L) | 8.5 |
| Swing motor - generator (L) | 3.6 |
| Ultra capacitor cooling system (L) | 11.7 |
