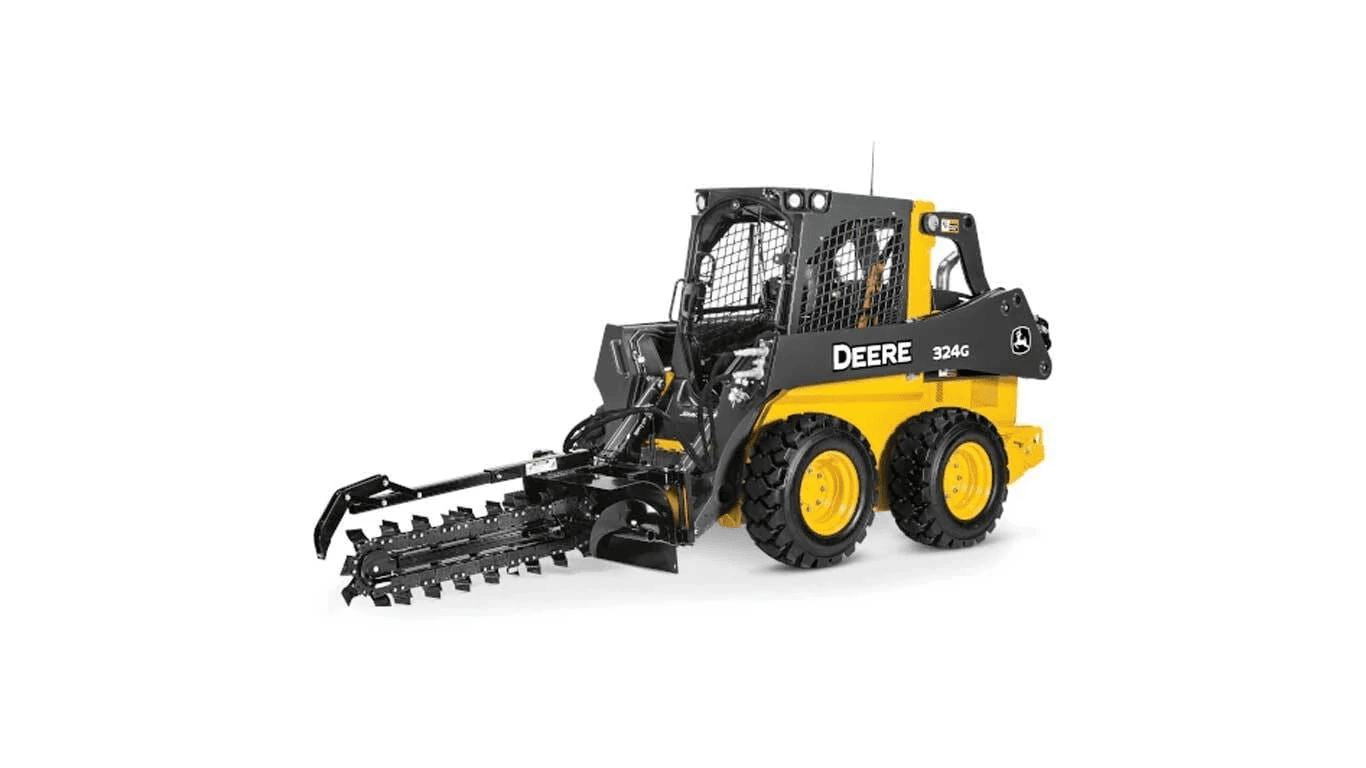

TR36B Trencher Compact Equipment Attachment

Name: TR36B Trencher Compact Equipment Attachment
Brand: John Deere
SKU: JOHNDEERE-0016KV

رقم القطعة: JOHNDEERE-0016KV

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

TR36B Trencher Compact Equipment Attachment

Model	TR36B Trencher
Base Code	0016KV
Division	construction-equipment
Product Family	construction-attachments
Weight	510 kg (1,130 lb.)
Width	1345 mm (53 in.)
Height	815 mm (32 in.)
Length	1855 mm (73 in.)
325G	
P-Tier Large Frames	
P-Tier Small Frames	
316 P-Tier 317 P-Tier 318 P-Tier 320G	
Hydraulic Connection / Standard Flow	12.7-mm (0.5 in.) quick- connect couplers
Hydraulic Connection / High Flow	12.7-mm (0.5 in.) quick-
Trench Depth at 65-deg. Angle	915 mm (36 in.)
Side Shift, Right of Center	430 mm (17 in.)
Spoil-Discharge Reach	455 mm (18 in.)
Digging Chain-Drive Type	Integrated planetary
Standard-Flow Motor Options / 53–83 L/min. (14–22 gpm)	N/A
Standard-Flow Motor Options / 61–76 L/min. (16–20 gpm)	Optional
Standard-Flow Motor Options / 79–95 L/min. (21–25 gpm)	Optional
High-Flow Motor Options / 102–132 L/min. (27–35 gpm)	Optional
High-Flow Motor Options / 136–167 L/min. (36–44 gpm)	Optional
High-Flow Motor Options / Maximum Operating Pressure	24 000 kPa (3,500 psi)
DIGGING CHAIN / Type	Double standard anti- back flex
DIGGING CHAIN / Rating	22 680 kg (50,000 lb.)
DIGGING CHAIN / Pitch	50 mm (2 in.)
Widths / Standard Cup Teeth	150 mm (6 in.) / 205 mm (8 in.) / 255 mm (10 in.) /
Widths / 70/30 Combo Shark Teeth (no electrical connection)	305 mm (12 in.) 150 mm (6 in.)
Hydraulic Connection / Vehicle Compatibility*	case-drain coupler 316 P-Tier, 318 P-Tier, 320G, 324G, 330 P-Tier, and 334 P-Tier SSLs; 317 P-Tier, 325G, 331 335 P-Tier CTLs
