John Deere

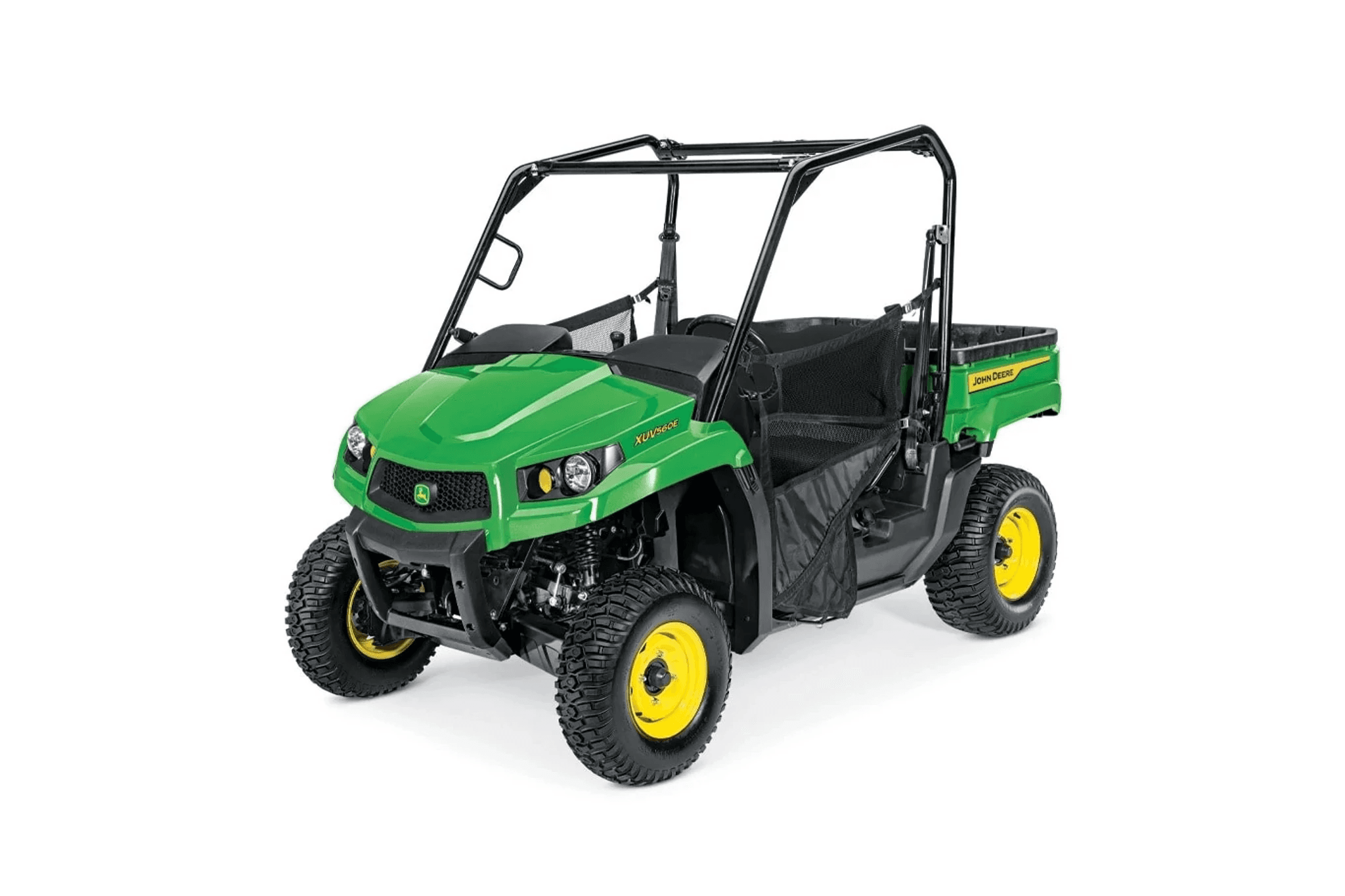

XUV560E Crossover Utility Vehicle

Name: XUV560E Crossover Utility Vehicle
Brand: John Deere
SKU: JOHNDEERE-578GM

رقم القطعة: JOHNDEERE-578GM

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

XUV560E Crossover Utility Vehicle

المواصفات

Model	XUV560E
Base Code	578GM
Division	gator-utility-vehicles
Product Family	mid-size-crossover-utvs
Engine power	11.9 † kW 16 hp
Cargo box dimensions	82 x 120.9 x 29.7 cm 32.3 x 47.6 x 11.7 in. 0.25m 8.9 cu ft
Towing capacity	680 kg 1500 lb
Front suspension	Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar
Rear suspension	Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel
Final drive	Park, high, low, neutral, reverse transaxle
Four wheel drive	Dash switch actuated four-wheel drive system with limited slip front differential, plus locking rear differential
Fuel capacity	18.5 L 4.9 U.S. gal.
ENGINE / Type	4-cycle gas, V-twin, dynamically tuned carb, overhead valves (OHV)
ENGINE / Displacement	570 cc
ENGINE / Cooling system	Air cooled
DRIVETRAIN / Traction assist	Positive locking, switch actuated rear differential lock
BRAKES / Type	196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 34.93 mm (1.375 in.) diameter twin-piston calipers
BRAKES / Park brake	Park in-transmission
TIRES / WHEELS / Front	rating yellow steel wheels Optional: 26x8-14 Maxxis ® Bighorn ® 2.0 6-ply rating aluminum Bighorn 2.0 6-ply rating yellow steel wheels
TIRES / WHEELS / Rear	yellow steel wheels Optional: 26x10-14 Maxxis 25x10-12 Terrahawk AT (All Terrain) 4-ply rating Bighorn 2.0 6-ply rating yellow aluminum alloy wheels or 26x10-14 Maxxis Bighorn 2.0 6-ply
CARGO HANDLING / Dump	2-sided – Manual release (optional factory installed power lift)
CARGO HANDLING / Tailgate	Center truck-style latch
CARGO HANDLING / Wheelbase	1.86 m 72.8 in.
CARGO HANDLING / Operating weight (includes fuel/fluids)	571 kg 1259 lb
CARGO HANDLING / Length	2870 mm 113 in.
CARGO HANDLING / Width	1435 mm 56.5 in.
CARGO HANDLING / Height	1867 mm 73.5 in.
CARGO HANDLING / Tread centers	Front: 1220 mm 48 in. Rear: 1168 mm 46 in.
CARGO HANDLING / Ground clearance	Minimum: 267 mm 10.5 in.
CARGO HANDLING / Hitch	Standard 50 mm (2 in.) rear receiver with optional 50 mm (2 in.) front receiver with recovery loops
CARGO HANDLING / COLOR OPTIONS	Green & Yellow
CARGO HANDLING / STORAGE	Oversized glovebox and underhood storage.
