John Deere

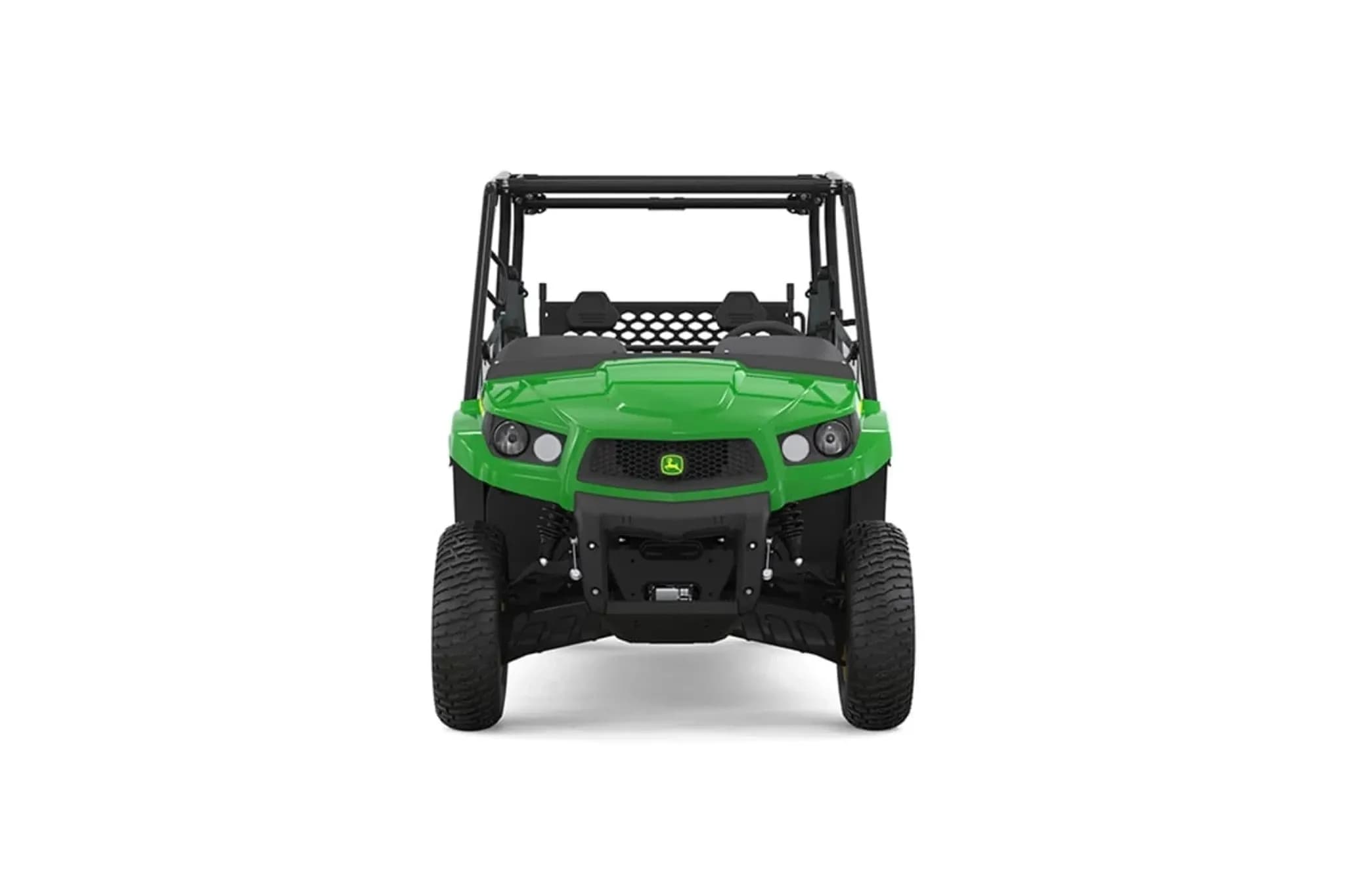

XUV560E S4 Crossover Utility Vehicle

Name: XUV560E S4 Crossover Utility Vehicle
Brand: John Deere
SKU: JOHNDEERE-579CM

رقم القطعة: JOHNDEERE-579CM

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

XUV560E S4 Crossover Utility Vehicle

المواصفات

Model	XUV560E S4
Base Code	579CM
Division	gator-utility-vehicles
Product Family	mid-size-crossover-utvs
Engine power	11.9 † kW 16 hp
Cargo box dimensions	82 x 120.9 x 29.7 cm 32.3 x 47.6 x 11.7 in. 0.25m 8.9 cu ft
Towing capacity	680 kg 1500 lb
Front suspension	Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar
Rear suspension	Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel
Final drive	Park, high, low, neutral, reverse transaxle
Four wheel drive	Dash switch actuated four-wheel drive system with limited slip front differential, plus locking rear differential
Fuel capacity	28 L 7.4 U.S. gal.
ENGINE / Type	4-cycle gas, V-twin, dynamically tuned carb, overhead valves (OHV)
ENGINE / Displacement	570 cc
ENGINE / Cooling system	Air cooled Continuously Variable Transmission (CVT)
DRIVETRAIN / Traction assist	Positive locking, switch actuated rear with clutch enclosure differential lock
BRAKES / Type	196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 34.93 mm (1.375 in.) diameter twin-piston calipers
BRAKES / Park brake	Park in-transmission
TIRES / WHEELS / Front	rating yellow steel wheels Optional: 26x8-14 Maxxis ® Bighorn ® 2.0 6-ply rating aluminum Bighorn 2.0 6-ply rating yellow steel wheels
TIRES / WHEELS / Rear	yellow steel wheels Optional: 26x10-14 Maxxis 25x10-12 Terrahawk AT (All Terrain) 4-ply rating Bighorn 2.0 6-ply rating yellow aluminum alloy wheels or 26x10-14 Maxxis Bighorn 2.0 6-ply
CARGO HANDLING / Dump	2-sided – Manual release (optional factory installed power lift)
CARGO HANDLING / Tailgate	Center truck-style latch
CARGO HANDLING / Wheelbase	2743 mm 108 in.
CARGO HANDLING / Operating weight (includes fuel/fluids)	683 kg 1507 lb
CARGO HANDLING / Length	3658 mm 144 in.
CARGO HANDLING / Width	1435 mm 56.5 in.
CARGO HANDLING / Height	1880 mm 74 in.
CARGO HANDLING / Tread centers	Front: 1220 mm 48 in. Rear: 1168 mm 46 in.
CARGO HANDLING / Ground clearance	Minimum: 236 mm 9.3 in.
CARGO HANDLING / Hitch	Standard 50 mm (2 in.) rear receiver with optional 50 mm (2 in.) front receiver with recovery loops
CARGO HANDLING / COLOR OPTIONS	Green & Yellow
CARGO HANDLING / STORAGE	Total volume of 12.8 gallons (48.7 l), with an additional 9 gallons available under seat
