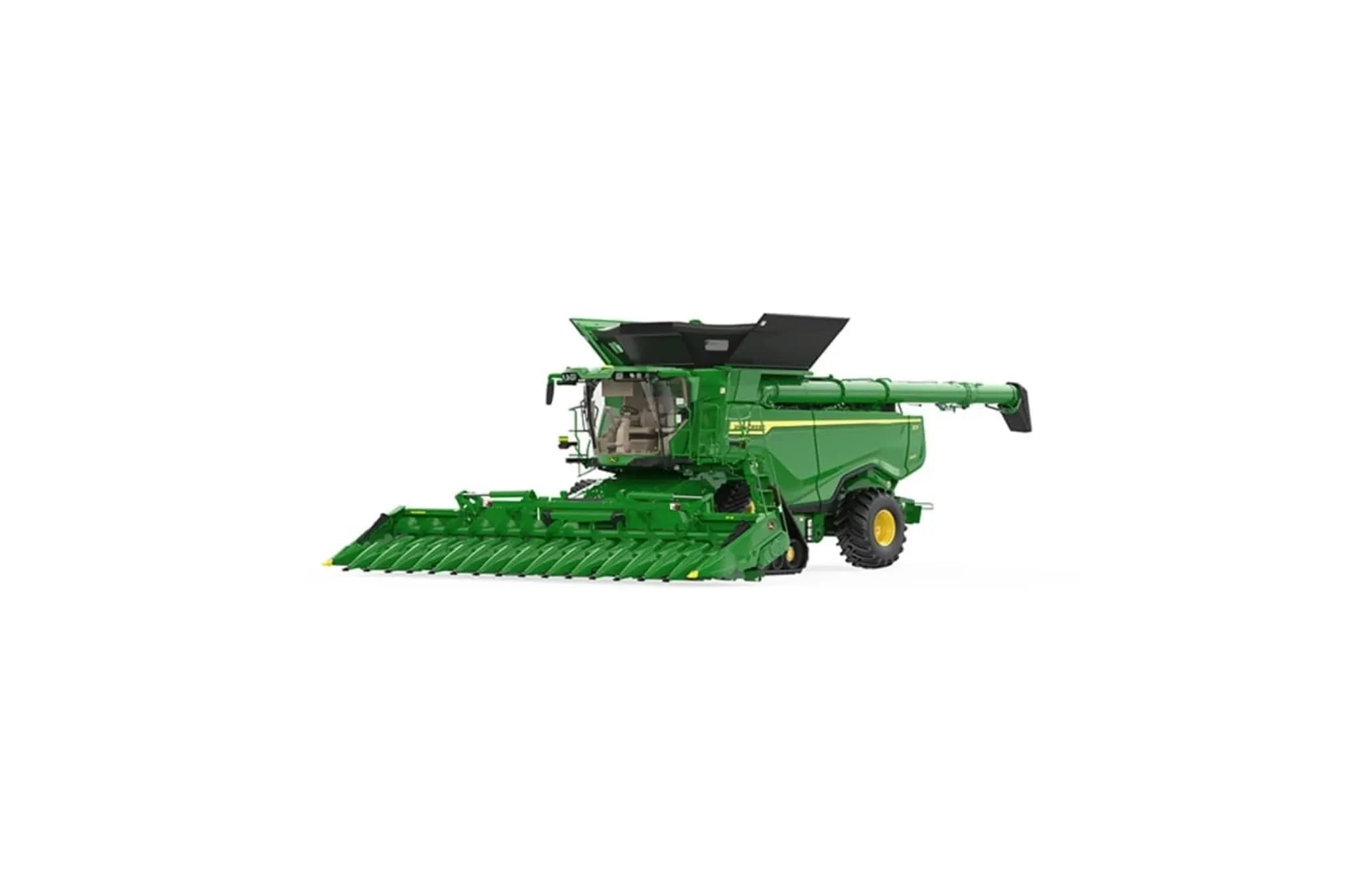

X9 1100 Combine

John Deere

X9 1100 Combine

رقم القطعة: JOHNDEERE-401GH

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

X9 1100 Combine

المواصفات

Displacement830 cu in (13.6 L)
ModelX9 1100
Base Code401GH
Divisionharvesting
Product Familycombines
Fuel capacity330 gal (1,249 L)
TypeJD14
Rated Speed1900 rpm
Rated Power603 hp (450kW) @ Rated Speed
Peak Power690 hp (515 kW) @ Rated Speed
FEEDING / Drive TypeFixed or Variable
FEEDING / Conveyor Chain Slat TypeFour-strand chain with formed steel slats
FEEDING / Width67.7 in (1720 mm)
FEEDING / Feed Accelerator, Stone Trap (FAST)Eight-wing chevron FAST
FEEDING / ReverserModulated feederhouse reverser
THRESHING/SEPARATING / Separator TypeDual rotor
THRESHING/SEPARATING / Rotor Length11.5 ft (3.5 m)
THRESHING/SEPARATING / Rotor Diameter24 in (60 cm)
THRESHING/SEPARATING / Rotor Speed Range300-1300 rpm
THRESHING/SEPARATING / Concave Area17.22 ft² (1.6 m²)
THRESHING/SEPARATING / Separating Area38.75 ft² (3.6 m²)
THRESHING/SEPARATING / Discharge Grate Area4.85 ft² (0.45 m²)
CLEANING / Front Chaffer10.4 ft² (0.97 m²)
CLEANING / Chaffer33.69 ft² (3.13 m²)
CLEANING / Sieve Area30.89 ft² (2.87 m²)
CLEANING / Total Cleaning Area75.02 ft² (6.97 m²)
CLEANING / Cleaning Fan Speed570-1430 rpm
GRAIN HANDLING / Grain Tank Size460 bu (16,210 L)
GRAIN HANDLING / Unloading Auger Length26, 28.5 or 31 ft (7.9, 8.7, 9.45 m)
GRAIN HANDLING / Unloading Rate5.3 bu/sec (186.7 L/sec)
CR16 StalkMaster (Can Add Stalk Deflectors)X
CF FOLDING CORN HEADSX
CF12X
CF16X
CF18X
CF27 20 1X
CF12 StalkMasterX
CF16 StalkMasterX
CF18 StalkMasterX
RDF RIGID DRAPERS / RDF35X
RDF RIGID DRAPERS / RDF40X
RDF RIGID DRAPERS / RDF45 1 Requires a 100 mm FH cylinderX
30 in (762 mm) Tracks – 3.8 m width and 3.0 m CTFX
30 in (762 mm ) Tracks (no width restriction)X
36 in (914.4 mm) Tracks (no width restriction)X
FRONT TIRES / IF 800/60R38 CFO+ 193A8 R-1WX
FRONT TIRES / VF 900/60R38 CFO+ 193A8 R-1WX
FRONT TIRES / IF 1100/50R42 CFO 197B R-1WX
FRONT TIRES / LSW 1100/45R46 CFO 195D R-1WX
FRONT TIRES / VF1100/45R46 CFO 201D R-1WX
FRONT TIRES / VF1250/35R46 CFO 202B R-2X
FRONT TIRES / VF 580/85R42 CFO 183B R-2 DualsX
FRONT TIRES / VF 580/85R42 CFO 183B R-1W DualsX
FRONT TIRES / IF 580/85R42 CFO 178A8 R-1W DualsX
FRONT TIRES / 650/85R38 173A8/B R-1W DualsX
FRONT TIRES / 650/85R38 173A8 R-1W DualsX
FRONT TIRES / 650/85R38 176A8 R-1W DualsX
FRONT TIRES / VF 710/70R42 CFO 184B R-1W DualsX
FRONT TIRES / VF 710/70R42 CFO 193B R-1W DualsX
REAR TIRES / 500/85R30 IMP 179A8/160A8X
REAR TIRES / VF 620/70R26 CFO+ 173A8X
REAR TIRES / VF 620/75R26 CFO 172BX
REAR TIRES / VF 620/75R26 CFO 178DX
REAR TIRES / VF 710/65R26 177D R-2X
REAR TIRES / VF 750/60R30 CFO 180DX
REAR TIRES / VF 750/65R26 CFO+ 180A8X
REAR TIRES / VF 750/65R26 CFO 180BX
