John Deere

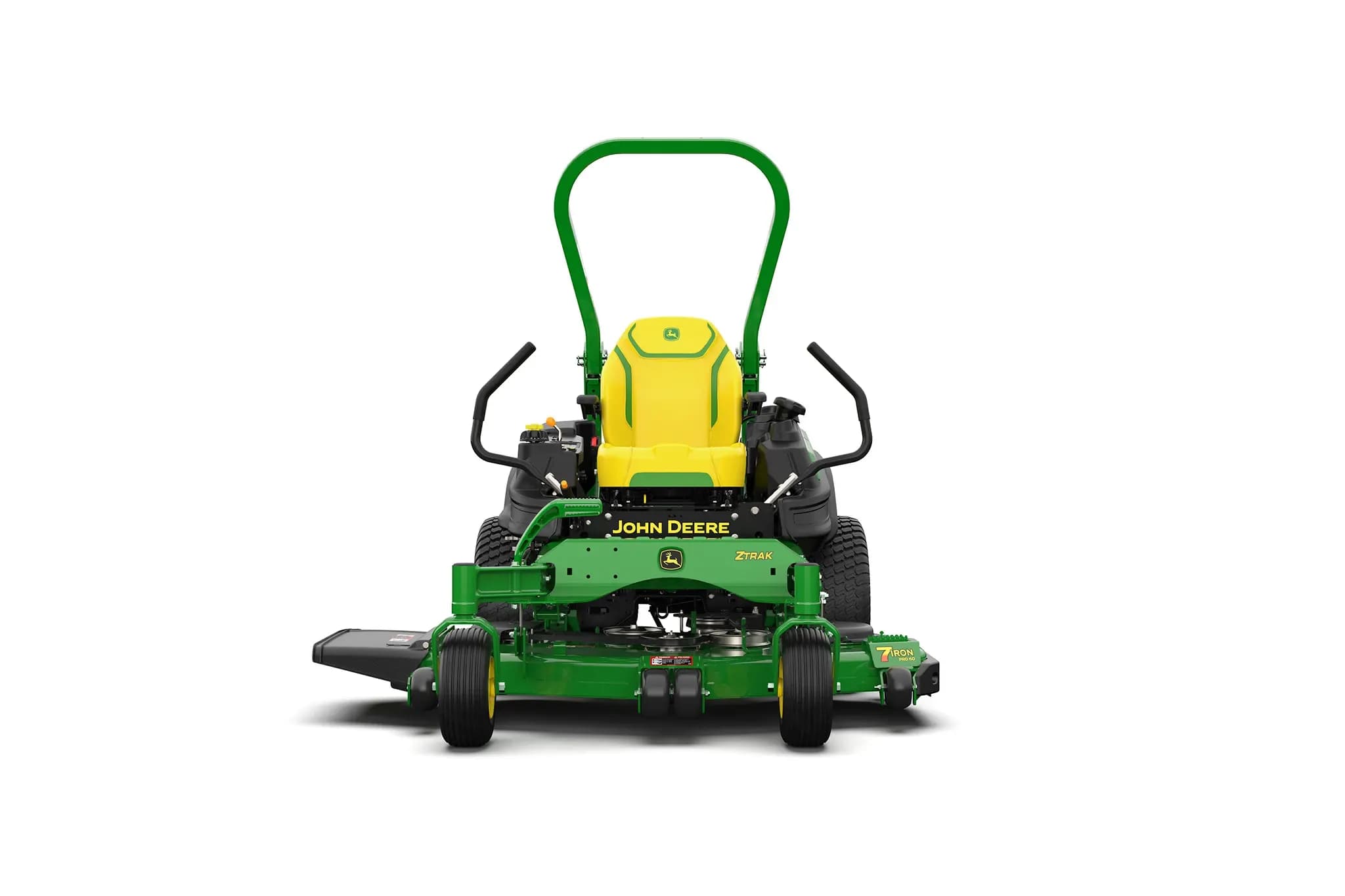

Z955M EFI ZTrak™ Zero-Turn Mower

Name: Z955M EFI ZTrak™ Zero-Turn Mower
Brand: John Deere
SKU: JOHNDEERE-2523TC

رقم القطعة: JOHNDEERE-2523TC

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Z955M EFI ZTrak™ Zero-Turn Mower

المواصفات

Model	Z955M EFI
Base Code	2523TC
Division	mowers
Product Family	commercial-zero-turn-mowers
Blades / Number	Three
ENGINE / Displacement	822 cc
BRAKES / Park brake	Internal wet disk integrated in the transmisson
Dimensions / Height	73 in. (185 cm) with ROPS up; 47 in. (119 cm) with ROPS down
ENGINE / Cylinders	Two
FUEL SYSTEM / Fuel type	Gasoline
FUEL SYSTEM / Fuel tank capacity	11.5 U.S. gal. (43.5 L)
ELECTRICAL SYSTEM / Battery voltage	12 Volt
PTO / Type	Electro-magnetic (225 lb. ft.)
PTO / Drive	V-belt
ENGINE / Engine Model	3,4 FX781V EVO EFI
ENGINE / Oil Filter	Full flow, replaceable
ENGINE / Lubrication	Full pressure
ENGINE / Cooling	Air
ENGINE / Air Cleaner	Heavy-duty canister type with safety element
ELECTRICAL SYSTEM / Charge System	30 amp
ELECTRICAL SYSTEM / Hour Meter	Advanced, digital
DRIVETRAIN / Hydraulic Pumps	Tuff Torq heavy-duty integrated piston pump
DRIVETRAIN / Wheel Motors	Tuff Torq heavy-duty integrated piston wheel motor
DRIVETRAIN / Hydraulic Capacity	5.9 U.S. qt (5.6 L)
DRIVETRAIN / Travel Speed Forward	0-12 mph (0-19.3 km/h)
DRIVETRAIN / Travel Speed Reverse	0-4.5 mph (0-7.2 km/h)
BRAKES / Park Brake Actuation	Hand brake
MOWER DECKS / (7-Gauge Stamped Steel Mower Deck)	54 in. (137 cm), 60 in. (152 cm)
MOWER DECKS / 7Iron™ PRO Mulch On Demand™ Deck (7-Gauge Stamped Steel Mower Deck)	54 in. (137 cm), 60 in. (152 cm)
MOWER DECKS / FastBack™ PRO Rear-Discharge Deck	60 in. (152 cm)
MOWER DECKS / (7-Gauge Fabricated Steel Mower Deck)	in. (183 cm)
MOWER DECKS / Spindle Housing	8-in. (20.32 cm) Cast Iron
MOWER DECKS / Height-of-Cut Range; Increment	1.0 in. to 5.5 in. (2.5 cm to 14 cm); 0.25 in. (0.6 cm)
BLADES / Tip Speed	60-in. (152-cm) FastBack: approx. 16,500 fpm
WHEELS AND TIRES / Drive (Rear) Tires	24x12-12 Turf; 24x12-12 X TWEEL Turf
WHEELS AND TIRES / Caster Wheel Type	13x6.5-6 flat free
DIMENSIONS / Overall Length	87 in. (221 cm)
DIMENSIONS / Overall Width (Chute Down)	68, 74 in. (173, 188 cm);
DIMENSIONS / Weight (with Fluids)	1383 to 1454 lb. (627 to 660kg)
ROLLOVER PROTECTIVE STRUCTURE (ROPS) / Folding ROPS (ISO 21299-2009)	Yes
SLOPE OPERATING LIMIT / Z900 Slope Operating Limit 7	20 degrees
WARRANTY 2 / Duration	36 months or 1200 hours, whichever comes first. No hour limitation for the first 24 months.
