John Deere

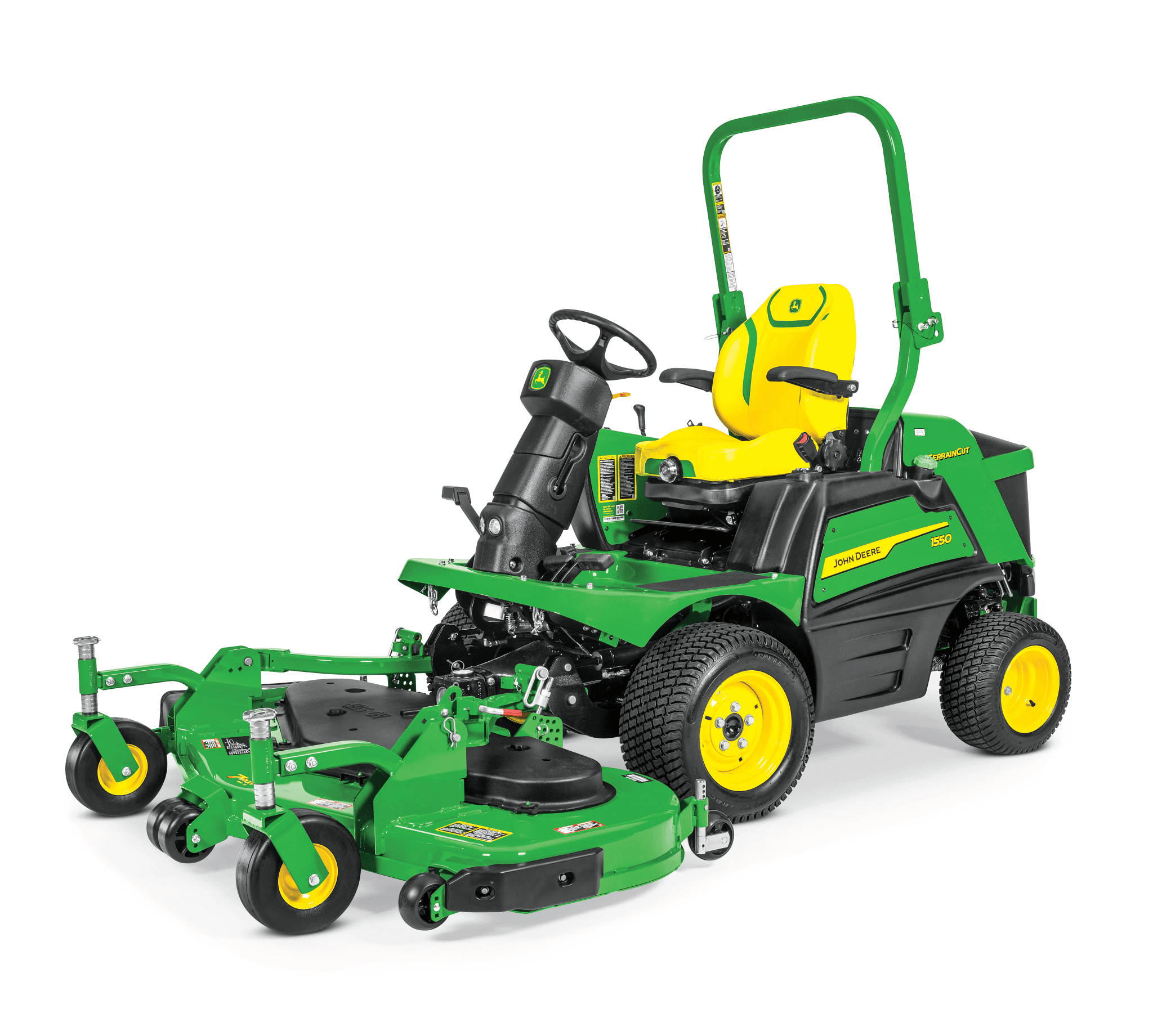

1550 TerrainCut™ Front Mower

Name: 1550 TerrainCut™ Front Mower
Brand: John Deere
SKU: JOHNDEERE-240DTC

رقم القطعة: JOHNDEERE-240DTC

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

1550 TerrainCut™ Front Mower

المواصفات

Model	1550
Base Code	240DTC
Division	mowers
Product Family	front-and-wide-area-mowers
ENGINE / Displacement	77 cu. in. (1.27 L)
BRAKES / Type	Internal wet disk
ENGINE / Cylinders	25 HP (18.4 kW) , @ 3000 rpm, PS 3-cylinder Diesel
FUEL SYSTEM / Fuel type	Diesel
ENGINE / Engine Model	3TNV80F
ENGINE / Oil Filter	Spin-on
ENGINE / Lubrication	Full Pressure
ENGINE / Cooling	Liquid
ENGINE / Air Cleaner	Dual element, dry
FUEL SYSTEM / Fuel Capacity	16 U.S. gal. (61 L)
ELECTRICAL / Charging system	Automotive type
ELECTRICAL / Alternator,AMP	75
ELECTRICAL / Battery Voltage	12
ELECTRICAL / Cold Cranking amps @ 0 deg. F	480
POWER TRAIN / Type	Hydrostatic
POWER TRAIN / Speed and Direction Control	Two-pedal foot
POWER TRAIN / Cruise Control	Optional
POWER TRAIN / Hi/Lo Range	No, single speed transmission
POWER TRAIN / 4-Wheel Drive	Optional
POWER TRAIN / Differential Lock	Yes
POWER TRAIN / Travel Speed Forward	0-12 mph (0-19.3 km/h)
POWER TRAIN / Travel Speed Reverse	0-5 mph (0-8 km/h)
POWER TAKE-OFF / PTO	Front
POWER TAKE-OFF / PTO Clutch	Wet multi-disk, modulated
POWER TAKE-OFF / PTO Drive Output	2000 rpm
HYDRAULICS / Type	Open center
HYDRAULICS / Pump Capacity	5.1 U.S. gpm (19.3 L/m)
HYDRAULICS / Spool Valve	Front lift, std
BRAKES / Individual Turn Brakes	Standard
TIRE SIZE / Drive	23x10.5-12, Optional: 23x8.5-12
TIRE SIZE / Ply Rating	4
DIMENSIONS / Wheelbase	49.2 in. (125 cm)
DIMENSIONS / Ground Clearance	6.5 in. (16.5 cm)
DIMENSIONS / Overall Width	51.7 in. (131.3 cm), (23x10.5 tires)
DIMENSIONS / Overall Length (less mower deck)	86.7 in. (220.2 cm)
ROPS / Roll Over Protective Structure	Standard
ROPS / ROPS Certification	ISO 21299:2009
ROPS / Overall Height with ROPS	82.7 in. (210 cm)
ROPS / Overall Height with ROPS Folded	58 in. (147.3 cm)
ROPS / Overall Height with CAB	N/A
ROPS / Machine Weight	2WD: 1675 lb. (760 kg), 4WD: 1835 lb (832 kg)
WARRANTY 1 / Duration	24 months 1 Hour and/or usage limitations apply and vary by model. See the WARRANTY FOR NEW JOHNDEERE TURF AND UTILITY EQUIPMENT at dealer for details.
