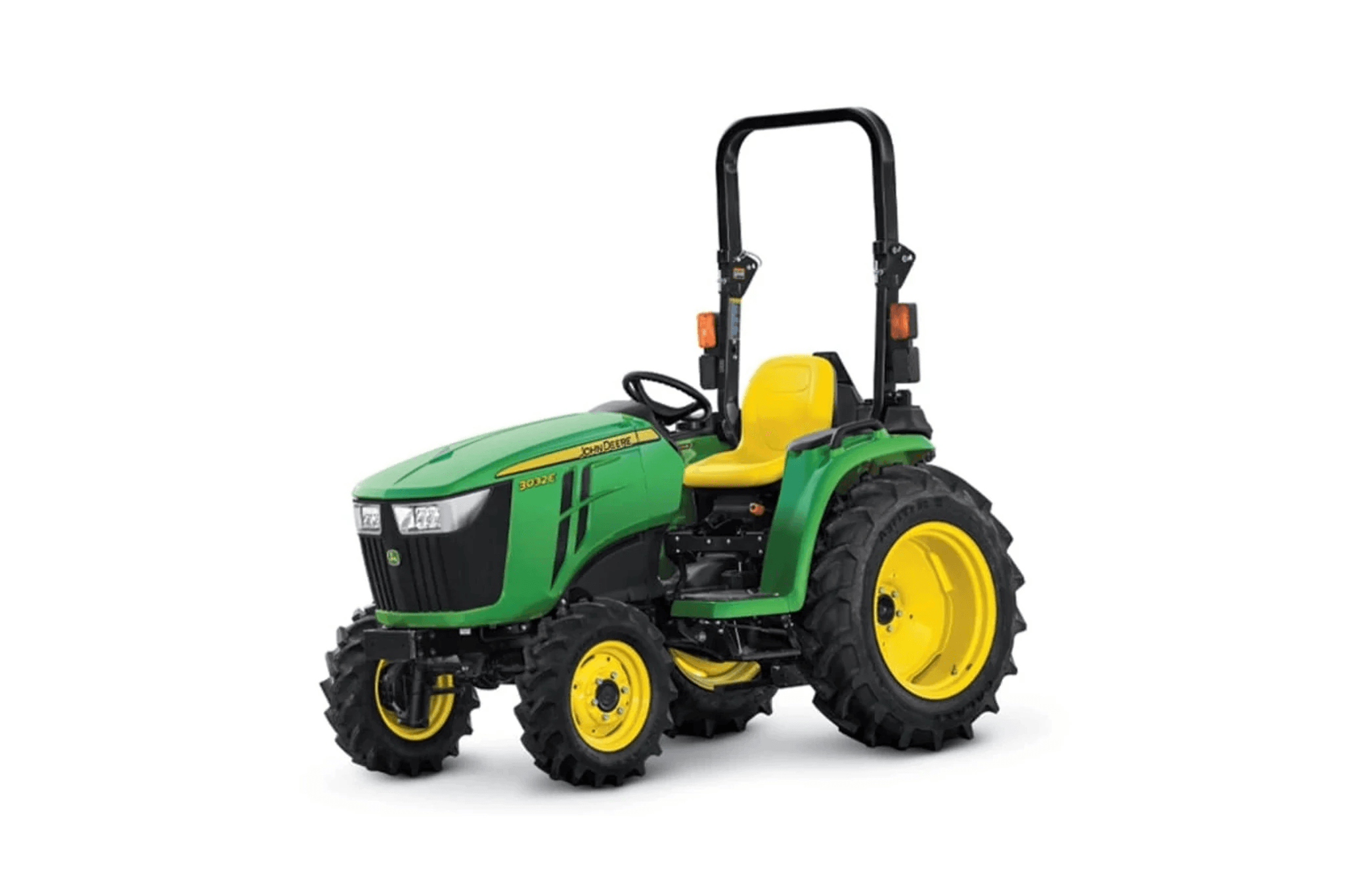

3032E Compact Tractor

Name: 3032E Compact Tractor
Brand: John Deere
SKU: JOHNDEERE-1475LV

رقم القطعة: JOHNDEERE-1475LV

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

3032E Compact Tractor

Model	3032E
Base Code	1475LV
Division	tractors
Product Family	compact-tractors
ENGINE / Type	3TNV88C-NJT Yanmar® Diesel Engine
ENGINE / Horsepower*	31.1 (22.9 kW) 5
ENGINE / Battery Power	12V, 500 CCA
HYDRAULICS / Steering	4 gpm (15 L/min)
HYDRAULICS / Implement	5.3 gpm (20.2 L/min)
HYDRAULICS / Total Capacity	9.3 gpm (35.2 L/min)
TRANSMISSION / Final Drive	Spur Gear
TRANSMISSION / Brakes	Wet Disc
POWER TAKE-OFF (PTO) / PTO Type	Independent
ENGINE / PTO HP	25.0 (18.6 kW)
ENGINE / Rated speed, rpm	2500
ENGINE / Engine displacement	100.2 cu. in. (1.64 L)
ENGINE / Alternator	55 A
TRANSMISSION / Standard	Hydrostatic-2 Range
TRANSMISSION / Steering	Power
REAR HITCH / Type	Category 1
REAR HITCH / Control type	Position
HYDRAULICS / Lift capacity (24 in. Behind Center Link)	1356 lb (615 kg)
TRANSMISSION / Optional	NA
POWER TAKE-OFF (PTO) / PTO	Rear 540
POWER TAKE-OFF (PTO) / PTO Options	—
WEIGHT / Open Station 4WD/MFWD	2222 lb (1008 kg)
WEIGHT / Cab MFWD	—
LOADER / Max Height Lift Capacity at Pivot	1186 lb (539 kg) 6
