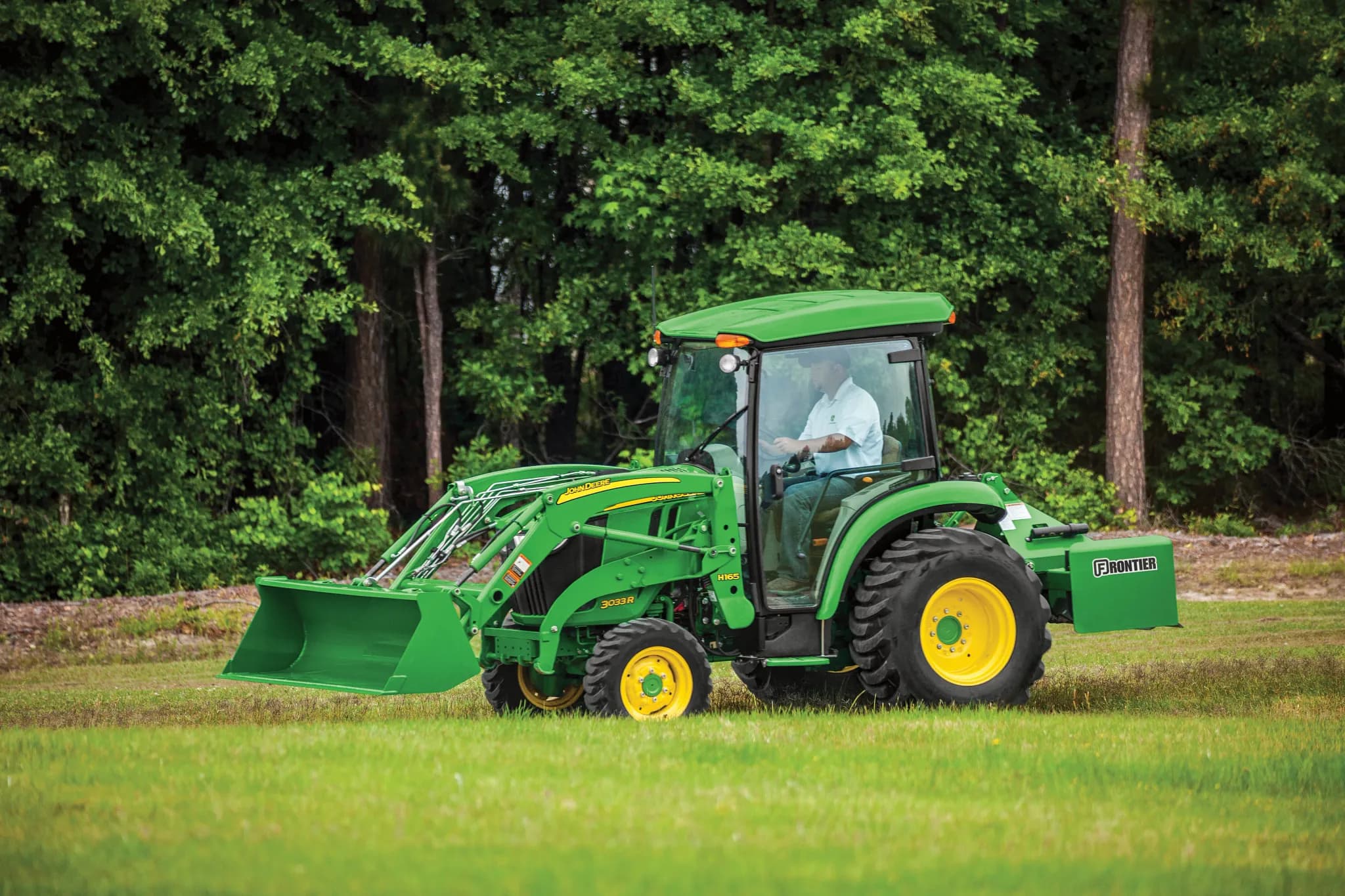

3033R Compact Tractor

Name: 3033R Compact Tractor
Brand: John Deere
SKU: JOHNDEERE-1368LV

رقم القطعة: JOHNDEERE-1368LV

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

3033R Compact Tractor

Model	3033R
Base Code	1368LV
Division	tractors
Product Family	compact-tractors
ENGINE / Type	3TNV88C Yanmar® Diesel Engine
ENGINE / Horsepower*	32.2 (23.7 kW) 5
ENGINE / Battery Power	12V, 500 CCA
HYDRAULICS / Steering	6.2 gpm (23.5 L/min)
HYDRAULICS / Implement	9.1 gpm (34.3 L/min)
HYDRAULICS / Total Capacity	15.3 gpm (57.6 L/min)
TRANSMISSION / Final Drive	Helical Gear
TRANSMISSION / Brakes	Wet Disc
POWER TAKE-OFF (PTO) / PTO Type	Independent
ENGINE / PTO HP	24.3 (18.1 kW)
ENGINE / Rated speed, rpm	2600
ENGINE / Engine displacement	100.2 cu. in. (1.64 L)
ENGINE / Alternator	75 A
TRANSMISSION / Standard	PowrReverser 12F/12R
TRANSMISSION / Steering	Power
REAR HITCH / Type	Category 1
REAR HITCH / Control type	Position
HYDRAULICS / Lift capacity (24 in. Behind Center Link)	2200 lb (998 kg)
TRANSMISSION / Optional	Hydrostatic-3 Range
POWER TAKE-OFF (PTO) / PTO	Rear 540
POWER TAKE-OFF (PTO) / PTO Options	Mid
WEIGHT / Open Station 4WD/MFWD	2900 lb (1316 kg)
WEIGHT / Cab MFWD	3570 lb (1619 kg)
LOADER / Max Height Lift Capacity at Pivot	1598 lb (725 kg) 6
