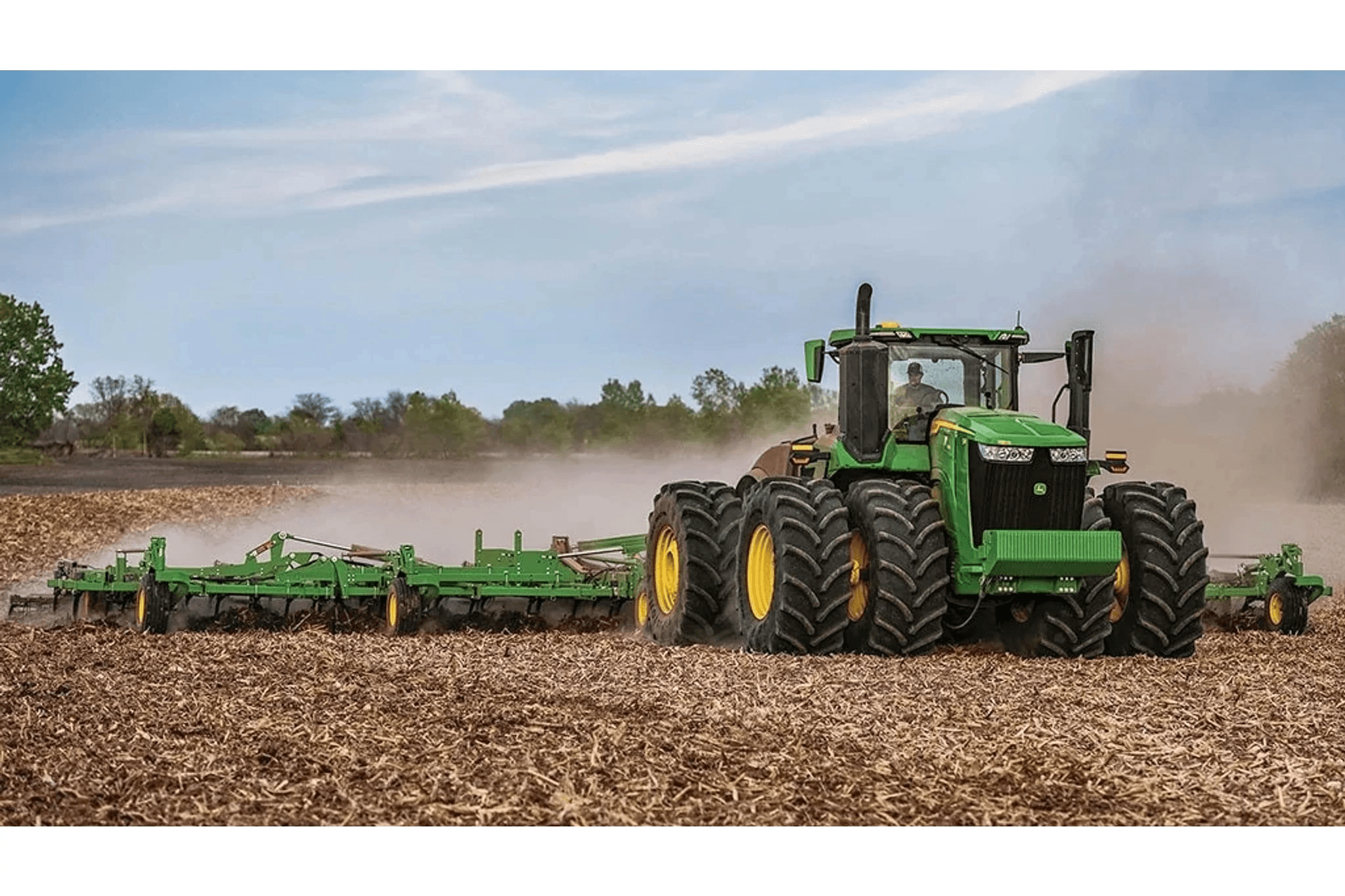

9R 540 Tractor

John Deere

9R 540 Tractor

رقم القطعة: JOHNDEERE-9330RW

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

9R 540 Tractor

المواصفات

Displacement827 cu in. (13.55L)
Model9R 540
Base Code9330RW
Divisiontractors
Product Familyrow-crop-4wd-tractors
EngineDiesel, in-line, 6-cylinder, wet-sleeve cylinder liners with 4 valves-in-head
TypeElectronically controlled, high-pressure common rail with electric fuel transfer pump (self priming)
Rated Speed2,100 rpm
CAPACITIES / DEF tank120 L (31.7 gal)
CAPACITIES / Fuel tank1514 L (400 gal)
Seeding Hydraulic Intelligent Power Management (Option),NA
ManufacturerJD14 (13.6L-827 cu.in)
AspirationSingle wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR)
Filter, engine airDual stage with exhaust aspiration
Bore and stroke5.2 in. (132 mm) x 6.5 in. (165 mm)
Compression ratio15.9:1
LubricationFull-pressure, full-flow filtration with bypass
DIFFERENTIAL LOCK / Full-Locking electrohydraulic, front and rear axle, with AutoModeStandard
DIFFERENTIAL LOCK / HYDRAULIC SYSTEM (type)Closed-center, pressure/flow compensated
DIFFERENTIAL LOCK / Selective control valves4 - 8 factory or field installed
DIFFERENTIAL LOCK / Maximum pressure2,900 psi (20,000 kPa )
CAPACITIES / Cooling system56.5 L (14.9 gal)
CAPACITIES / Crankcase with filter64 L (16.9 gal)
Rated PTO Power (hp SAE) at Rated PTO Speed (1895 erpm)**335 hp (249 kW)
Rated Engine Power PS (hp ISO) at Rated Engine Speed (EU 2016/1628)*540 hp (397 kW)
Max Engine Power PS (hp ISO) at Max Engine Power Speed (EU 2016/1628)*594 hp (437 kW)
SHIPPING WEIGHT / WHEELBASE LENGTH154 in. (3912 mm)
Filter, oilReplaceable spin-on style oil filter
FUEL SYSTEM (TYPE)Electronically controlled, high-pressure common rail with electric fuel transfer pump (self priming)
Filter, primary10 micron replaceable cartridge w/water indication sensor and drain
Filter, secondary2 micron spin-on element
TRANSMISSION / e18™ 18-speed PowerShift 40 kph (25 mph); 18F, 6R with Efficiency Manager™ ELECTRICALStandard
TRANSMISSION / Alternator/Battery250 amps / 12 Volt – 330 amps / 12 Volt Available
TRANSMISSION / Total cold cranking amps2850 (3-950 CCA grp 31 batteries)
TRANSMISSION / Batteries3
AXLE FINAL DRIVES / Inboard planetary with double-reduction axleStandard
AXLES / HydraCushion front axle suspensionAvailable
AXLES / WHEEL EQUIPMENTGroup 47/48 tires available as Single/Duals/Triples - See dealer for tire size selection and limitations
STEERING / Hydraulic power-steeringStandard
STEERING / Active Command Steering (ACS)Available
DIFFERENTIAL LOCK / Maximum pump flow with Base HydraulicsStandard: 208 L/min
DIFFERENTIAL LOCK / Maximum pump flow: high-flowAvailable: 416 L/min
DIFFERENTIAL LOCK / Available flow at a single SCV - ¹/2 in. coupler35 U.S. gpm/132 lpm
DIFFERENTIAL LOCK / Available flow at a single SCV with high-flow - ³/4in. couplerField Installed Option - 46 U.S. gpm/170 lpm
DIFFERENTIAL LOCK / 3-POINT HITCHElectric-hydraulic 3-point hitch with draft sensing
DIFFERENTIAL LOCK / Category 4N with Quik-Coupler- All Axle Diameters AllowedNA
DIFFERENTIAL LOCK / Category 4N/4 with Quik-Coupler- All Axle Diameters AllowedAvailable: 6804 kg (15000 lb)
Vertical Load / Drawbar Support for Long Scraper DrawbarsAvailable
Vertical Load / Drawbar Support for Short Scraper Drawbars PTO (POWER TAKE OFF), REAR, INDEPENDENTStandard
Vertical Load / 1-³/4 in., 20-spline, 1,000-rpmNA
Vertical Load / AUTOTRAC™ READYStandard
Vertical Load / Modular Telematics Gateway (MTG)Available JDLink™ Ultimate and Ethernet Harnesses (availability dependent upon destination)
Vertical Load / SERVICEADVISOR™ REMOTECapable with JDLink™ hardware and activations
Vertical Load / ISOBUS Implement ConnectionStandard (ISO 11783)
Vertical Load / BRAKESHydraulic power, wet-disk, self adjusting
Vertical Load / Hydraulic power, wet disk, self adjusting on front and rear axleStandard
Vertical Load / Hydraulic trailer brakesAvailable
CAPACITIES / Hydraulic/Transmission/Axle oil without 3-point rear hitch and without PTO234.7 L (62 U.S. gal)
CAPACITIES / Hydraulic/Transmission/Axle oil with 3-point rear hitch and PTO242.3 L (64 U.S. gal)
SHIPPING WEIGHT / Estimated shipping weight20856 kg (45980 lb)
Maximum Vertical Load / Modular Telematics Gateway (MTG)Available JDLink™ Ultimate and Ethernet Harnesses (availability dependent upon destination)
Filter systemTwo-stage with water separator and service indicator light
Maximum Vertical Load / Drawbar Support for Long Scraper DrawbarsNA
Maximum Vertical Load / Drawbar Support for Short Scraper Drawbars PTO (POWER TAKE OFF), REAR, INDEPNA
Maximum Vertical Load / 1-³/4 in., 20-spline, 1,000-rpmAvailable
Maximum Vertical Load / AUTOTRAC™ READYStandard
Maximum Vertical Load / SERVICEADVISOR™ REMOTECapable with JDLink™ hardware and activations
Maximum Vertical Load / ISOBUS Implement ConnectionStandard (ISO 11783)
Maximum Vertical Load / BRAKESHydraulic power, wet-disk, self adjusting
Maximum Vertical Load / Hydraulic power, wet disk, self adjusting on front and rear axleStandard
Maximum Vertical Load / Hydraulic trailer brakesAvailable
