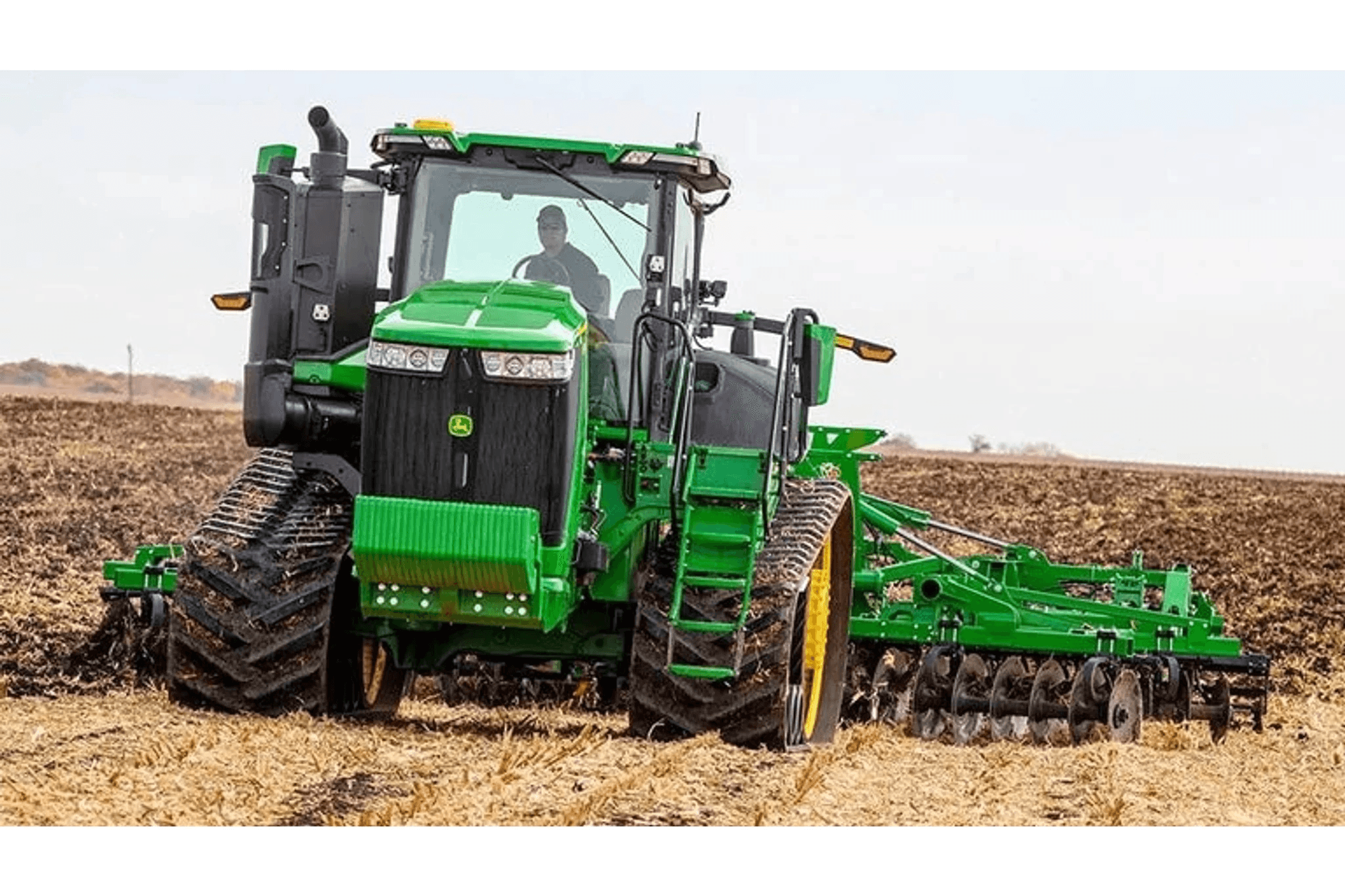

9RT 490 Tractor
رقم القطعة: JOHNDEERE-9430RW
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
9RT 490 Tractor
المواصفات
| Model | 9RT 490 |
|---|---|
| Base Code | 9430RW |
| Division | tractors |
| Product Family | row-crop-4wd-tractors |
| Engine | Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with 4 valves-in-head |
| ENGINE / Displacement | 827 cu in. (13.55L) |
| ENGINE / Lubrication | Full-flow filtration with bypass |
| ENGINE / Rated speed | 2,100 rpm |
| ENGINE / Filter, engine air | Dual stage with exhaust aspiration |
| ENGINE / Compression ratio | 15.9:1 |
| ENGINE / Bore and stroke | 5.2 in. (132 mm) x 6.5 in. (165 mm) |
| ENGINE / Filter system | Two-stage with water separator and service indicator light |
| ENGINE / Filter, primary | 10 micron replaceable cartridge w/water indication sensor and drain |
| TRANSMISSIONS / Alternator/Battery | 250 amps / 12 Volt – 330 amps / 12 Volt Available |
| ENGINE / Filter, oil | Replaceable spin-on style oil filter |
| ENGINE / Filter, secondary | 2 micron spin-on element |
| TRANSMISSIONS / Total cold cranking amps | 2850 (3-950 CCA grp 31 batteries) |
| CAPACITIES / DEF tank | 93.9 L (24.8 gal) |
| ENGINE / Aspiration | Single wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR) |
| CAPACITIES / Fuel tank | 1324 L (350 gal) |
| ENGINE / Manufacturer | JD14 (13.6L-827 cu.in) |
| Aspiration | Single wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR) |
| CAPACITIES / Cooling system | 56.5 L (14.9 gal) |
| MISCELLANEOUS / Cab glass area | 71.47 sq ft (6.64 sq m) |
| Rated PTO Power (hp SAE) at Rated PTO Speed (1895 erpm)** | 335 hp (249 kW) |
| Rated Engine Power PS (hp ISO) at Rated Engine Speed (EU 2016/1628)* | 490 hp (360 kW) |
| Max Engine Power PS (hp ISO) at Max Engine Power Speed (EU 2016/1628)* | 537 hp (400 kW) |
| FUEL SYSTEM (TYPE) | Electronically controlled, high-pressure common rail with electric fuel transfer pump (self priming) |
| CAPACITIES / Hydraulic/Transmission/Axle oil with 3-point rear hitch and PTO | NA |
| TRANSMISSIONS / Category 4N with Quik-Coupler- All Axle Diameters Allowed | Available: 6804 kg (15000 lb) |
| WHEELBASE / Modular Telematics Gateway (MTG) | Available JDLink™ Ultimate and Ethernet Harnesses (availability dependent upon destination) |
| MISCELLANEOUS / Estimated shipping weight | 20582 kg (45,375 lb) - Tractor equipped with standard tracks, no PTO, and no 3-point rear hitch |
| MISCELLANEOUS / MAX BALLAST LEVEL | 54,000 lbs (24,494 kg) – See OM for specific ballast instructions |
| ENGINE / FUEL SYSTEM (TYPE) | Electronically controlled, high-pressure common rail with electric fuel transfer pump (self priming) |
| TRANSMISSIONS / e18™ 18-speed PowerShift 40 kph (25 mph); 18F, 6R with Efficiency Manager™ ELECTRICA | Standard |
| TRANSMISSIONS / Batteries | 3 |
| TRANSMISSIONS / FINAL DRIVES Inboard planetary with double-reduction axle | Outboard planetary |
| TRANSMISSIONS / TRACK BELTS | Camso® Scraper Series Tracks |
| TRANSMISSIONS / SUSPENSION SYSTEM | AirCushion suspension system |
| TRANSMISSIONS / Suspension Travel at front idlers | 13.4 in. (340 mm) |
| TRANSMISSIONS / HYDRAULIC SYSTEM (TYPE) | Closed-center, pressure/flow compensated |
| TRANSMISSIONS / Selective control valves | 4 Standard, 6 Optional |
| TRANSMISSIONS / Maximum pressure | 2,900 psi (20,000 kPa ) |
| TRANSMISSIONS / Maximum pump flow with Base Hydraulics | NA |
| TRANSMISSIONS / Maximum pump flow: high-flow | Standard: 416 L/min |
| TRANSMISSIONS / Available flow at a single SCV - ¹/2 in. coupler | NA |
| TRANSMISSIONS / Available flow at a single SCV with high-flow - ³/4in. coupler | Standard: 45 U.S. gpm /170 lpm |
| TRANSMISSIONS / 3-POINT HITCH | NA |
| TRANSMISSIONS / Category 4N with Quik-Coupler | NA |
| TRANSMISSIONS / Category 4/4N with Quik-Coupler | NA |
| DRAWBAR*** / Drawbar Support for Short Scraper Drawbars | Standard |
| WHEELBASE / Description PTO (POWER TAKE OFF), REAR, INDEPENDENT | 97.5 in (2477 mm) |
| WHEELBASE / 1-³/4 in., 20-spline, 1,000-rpm | NA |
| WHEELBASE / AUTOTRAC™ READY | Standard |
| WHEELBASE / SERVICEADVISOR™ REMOTE | Capable with JDLink™ Select & Ultimate |
| WHEELBASE / ISOBUS Implement Connection | Standard (ISO 11783) |
| WHEELBASE / STEERING | Speed-sensitive, hydrostatic, differential |
| WHEELBASE / Heavy duty steering pump - 130cc | Standard |
| WHEELBASE / BRAKES | Hydraulic power, wet-disk, self adjusting |
| WHEELBASE / Hydraulic trailer brakes | Optional |
| CAPACITIES / Crankcase oil volume | 64.0 L (16.9 gal) |
| CAPACITIES / Hydraulic/Transmission/Axle oil without 3-point rear hitch and PTO | 330.8 L (87.4 U.S. gal) |
| MISCELLANEOUS / Drivers ear noise level per 77/311/EEC | NA |
| MISCELLANEOUS / Cab volume | 115 cu ft (3.27 cu. M) |
| MISCELLANEOUS / Estimated shipping weight for tractor equipped with standard tracks, | 25,546 kg (56,320 lb) |
