John Deere

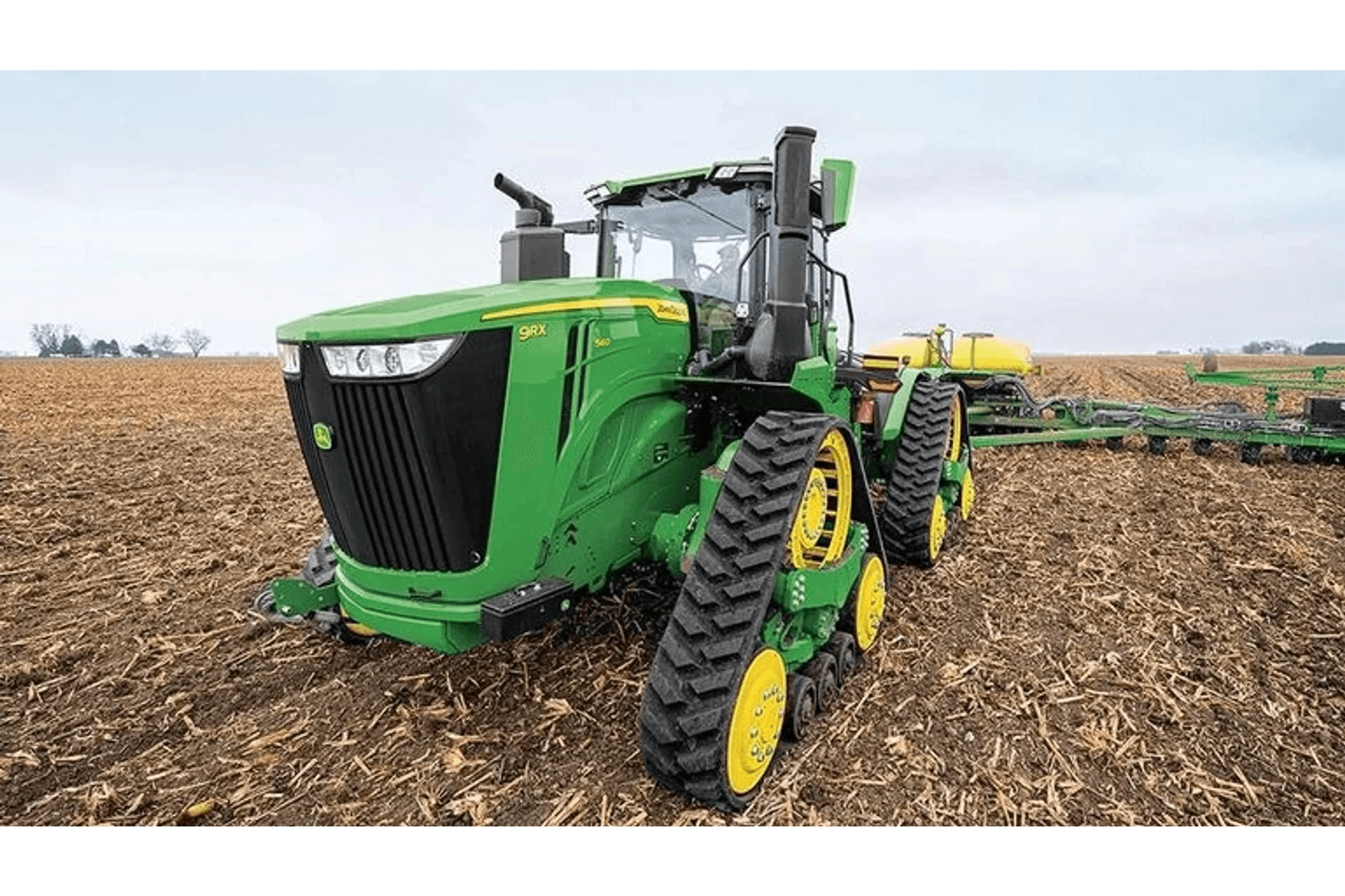

9RX 540 Tractor

Name: 9RX 540 Tractor
Brand: John Deere
SKU: JOHNDEERE-9520RW

رقم القطعة: JOHNDEERE-9520RW

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

9RX 540 Tractor

المواصفات

Displacement	827 cu in. (13.55L)
Model	9RX 540
Base Code	9520RW
Division	tractors
Product Family	row-crop-4wd-tractors
Engine	Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with 4 valves-in-head
Rated Speed	2,100 rpm
TRANSMISSIONS / Alternator/Battery	250 amps / 12 Volt – 330 amps / 12 Volt Available
TRANSMISSIONS / Total cold cranking amps	2850 (3-950 CCA grp 31 batteries)
CAPACITIES / DEF tank	120 L (31.7 gal)
CAPACITIES / Fuel tank	1514 L (400 gal)
Manufacturer	JD14 (13.6L-827 cu.in)
Aspiration	Single wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR)
Filter, engine air	Dual stage with exhaust aspiration
Bore and stroke	5.2 in. (132 mm) x 6.5 in. (165 mm)
Compression ratio	15.9:1
Lubrication	Full-flow filtration with bypass
CAPACITIES / Cooling system	56.5 L (14.9 gal)
CAPACITIES / Crankcase with filter	64.0 L (16.9 gal)
MISCELLANEOUS / Degrees of Articulation	36°
MISCELLANEOUS / Degrees of Oscillation	15°
MISCELLANEOUS / Degrees of Undercarriage Oscillation	±10°
MISCELLANEOUS / Wheelbase Length	163.5 in. (4154 mm)
Rated PTO Power (hp SAE) at Rated PTO Speed (1895 erpm)**	335 hp (249 kW)
Rated Engine Power PS (hp ISO) at Rated Engine Speed (EU 2016/1628)*	540 hp (397 kW)
Max Engine Power PS (hp ISO) at Max Engine Power Speed (EU 2016/1628)*	595 hp (437 kW)
Filter, oil	Replaceable spin-on style oil filter
STEERING / Hydraulic power-steering	Standard
STEERING / Active Command Steering (ACS)	Available
CAPACITIES / Hydraulic/Transmission/Axle oil without 3-point rear hitch and without PTO	234.7 L (62 U.S. gal)
CAPACITIES / Hydraulic/Transmission/Axle oil with 3-point rear hitch and PTO	242.3 L (64 U.S. gal)
TRANSMISSIONS / e18™ 18-speed PowerShift 40 kph (25 mph); 18F, 6R with Efficiency Manager™ ELECTRICA	Standard
TRANSMISSIONS / Batteries	3
MISCELLANEOUS / Estimated shipping weight for tractor equipped with standard tracks,	Narrow undercarriage: 24,639 kg (54,320lb)
STEERING / Category 4N with Quik-Coupler	NA
MISCELLANEOUS / no PTO, and no 3-point rear hitch	Wide undercarriage: 25,546 kg (56,320 lb)
AXLE FINAL DRIVES / Bull gear and double idler with floating pinion	Standard
AXLES / Rear axle supports	Available (With 30 or 36 inch tracks)
AXLES / Front axle supports	Available (With 30 or 36 inch tracks)
AXLES / TRACK BELTS	Camso 4500 and 6500 (MICHELIN BIBTRACK 150 and 250) Tracks
STEERING / HYDRAULIC SYSTEM (TYPE)	Closed-center, pressure/flow compensated
STEERING / Selective control valves	4 - 8 factory or field installed
STEERING / Maximum pressure	2,900 psi (20,000 kPa )
STEERING / Maximum pump flow with Base Hydraulics	Standard: 208 L/min
STEERING / Maximum pump flow: high-flow	Available: 416 L/min
STEERING / Available flow at a single SCV - ¹/2 in. coupler	35 U.S. gpm/132 lpm
STEERING / Available flow at a single SCV with high-flow - ³/4in. coupler	Field Installed Option - 45 U.S. gpm/170 lpm
STEERING / 3-POINT HITCH	Electric-hydraulic 3-point hitch with draft sensing
STEERING / Category 4/4N with Quik-Coupler	Available: 6804 kg (15000 lb)
DRAWBAR*** / Drawbar Support for Long Scraper Drawbars	NA
DRAWBAR*** / Drawbar Support for Long Scraper Drawbars PTO (POWER TAKE OFF), REAR, INDEPENDENT	NA
DRAWBAR*** / 1-³/4 in., 20-spline, 1,000-rpm	Available
DRAWBAR*** / AUTOTRAC™ READY	Standard
DRAWBAR*** / Modular Telematics Gateway (MTG)	Available JDLink™ Ultimate and Ethernet Harnesses (availability dependent upon destination)
DRAWBAR*** / SERVICEADVISOR™ REMOTE	Available with JDLink™ hardware and activations
DRAWBAR*** / ISOBUS Implement Connection	Standard (ISO 11783)
DRAWBAR*** / BRAKES	Hydraulic power, wet-disk, self adjusting
DRAWBAR*** / Hydraulic power, wet disk, self adjusting on front and rear axle	Standard
DRAWBAR*** / Hydraulic trailer brakes	Available
