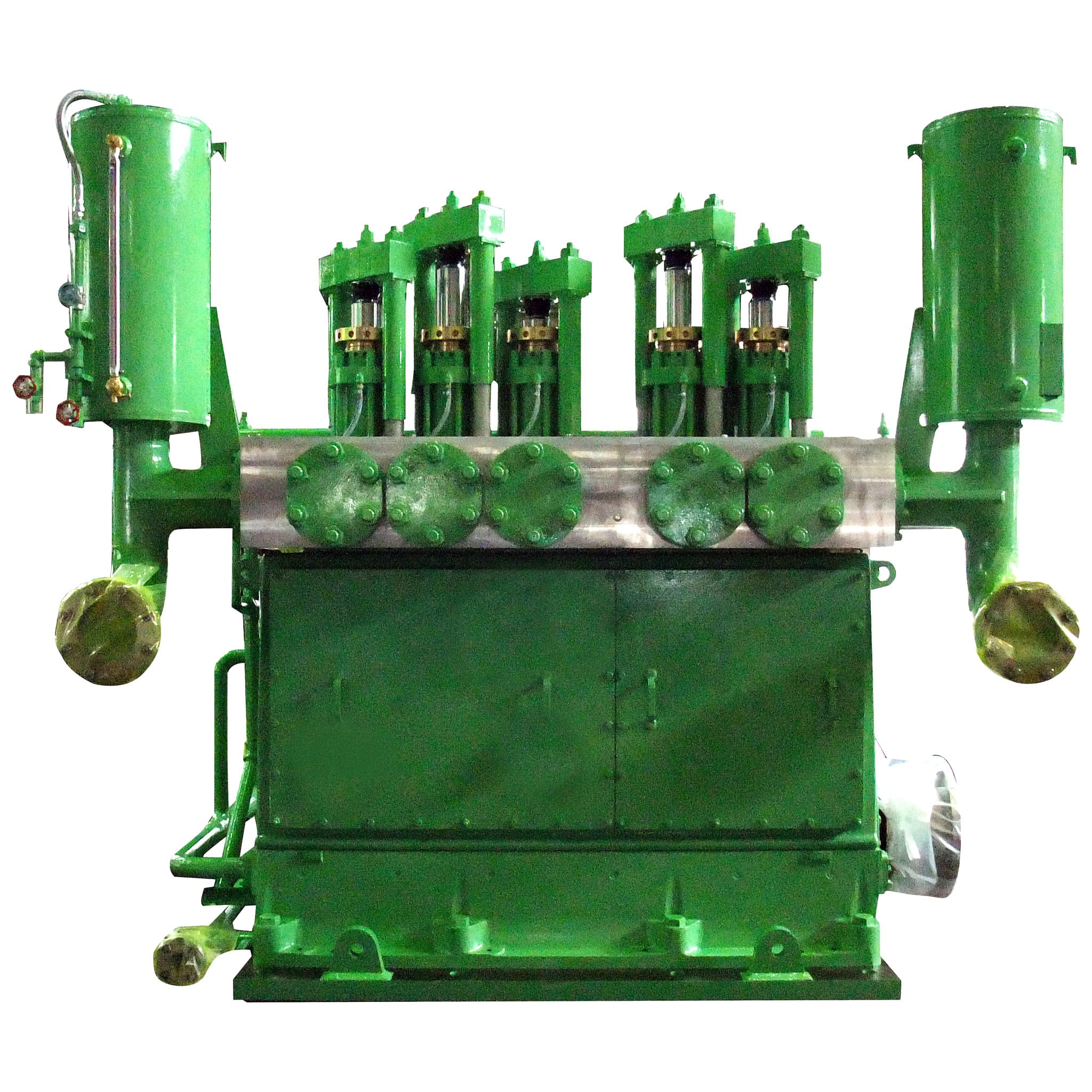

Worthington® VQE Reciprocating Pump

Name: Worthington® VQE Reciprocating Pump
Brand: Flowserve
SKU: flowserve-597

رقم القطعة: flowserve-597

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

The VQE is a vertical quintuplex positive displacement reciprocating pump with very high efficiency and is offered in a wide range of hydraulic, mechanical, and material options. Features and benefits: - Monoblock liquid ends for both oil & gas and general industrial services - Self-aligning plungers ensure proper concentricity within stuffing boxes - Many valve styles to suit all liquid types - Stuffing boxes outboard of cylinder allowing for more complex sealing and piping arrangements - Stuffing boxes individually fastened to liquid cylinder for ease of maintenance - Totally enclosed power frame is dust and oil tight eliminating atmospheric contamination - Cylindrical crossheads and guides maximize the load bearing area and reduce wear, keeping replacement costs to a minimum - Full pressure lubrication systems to ensure all bearing areas are protected and run smoothly

المواصفات

Brand line	Worthington
Standards	Flowserve
Status	Aftermarket support only - no longer available for purchase
Size Range	178 mm (7.00") stroke, with 31.75 mm (1.25") to 146.05 mm (5.75") diameter plungers, with power rating of 1033 kW.
Flows to	292 m³/h (1286 gpm)
Pressures to	431 bar (6250 psi)
Temperatures from	-40°C (-40°F) to 360°C (680°F)
Standard Design	Monoblock liquid end with clean liquid valves and full pressure bearing lubrication
High Suction Pressure Design	Special crosshead pin bearings and lubrication system to cope with non-unloading of that bearing
High Liquid Temperature Design	Individual cylinders and special manifold fastening arrangement to cope with thermal expansion effects on plunger centre distance
Slurry Design	Special liquid end arrangement for constant velocity flow, stuffing box flushing, and slurry valves to cope with solids in the liquid
