Flowserve

SIHI® Boost UltraPLUS Dry Vacuum Pump

Name: SIHI® Boost UltraPLUS Dry Vacuum Pump
Brand: Flowserve
SKU: flowserve-3791

رقم القطعة: flowserve-3791

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

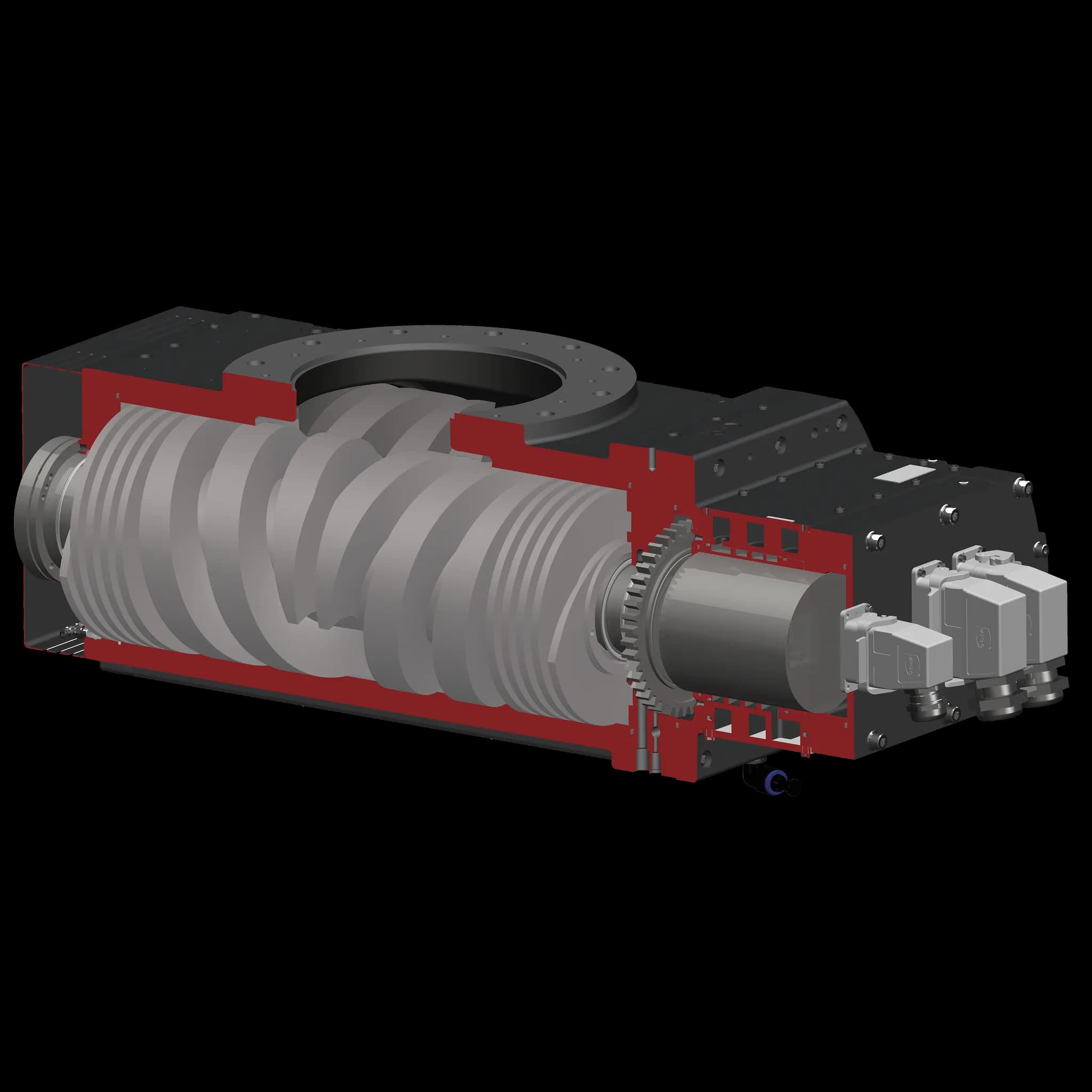

The SIHI Boost UltraPLUS dry-running vacuum pump sets a new standard for high-performance vacuum in large-area coating applications. Its oil-free, electronically synchronized design enables up to 50% faster load lock evacuation and shorter cycle times, while reducing energy use, backing pump size and system footprint. Features and benefits: - Accelerate throughput with dramatically faster pump-down and shorter batch cycle times, helping increase output from existing equipment - Maximize vacuum performance with very high flow capacity and compression ratios, enabling reliable operation from atmospheric pressure to fine vacuum - Reduce energy and system demands with efficient operation, lower backing pump capacity requirements and a more compact installation footprint - Protect product purity with totally oil-free operating and drive principle with no mechanical shaft seals that helps eliminate the risk of process contamination - Lower lifecycle costs with minimal maintenance, low noise and vibration, and service-friendly design that helps reduce downtime

المواصفات

Brand line	SIHI
Size Range	Sizes from 3,500 up to 8,000 m³/h (2,100 to 4,800 cfm) suction capacity
Design Range	Deep vacuum level down to 10-4 Torr in combination with a dry screw backing pump
Max Power	28 kW
Δ P	Up to 350 mbar
Cycle Time	50% faster
