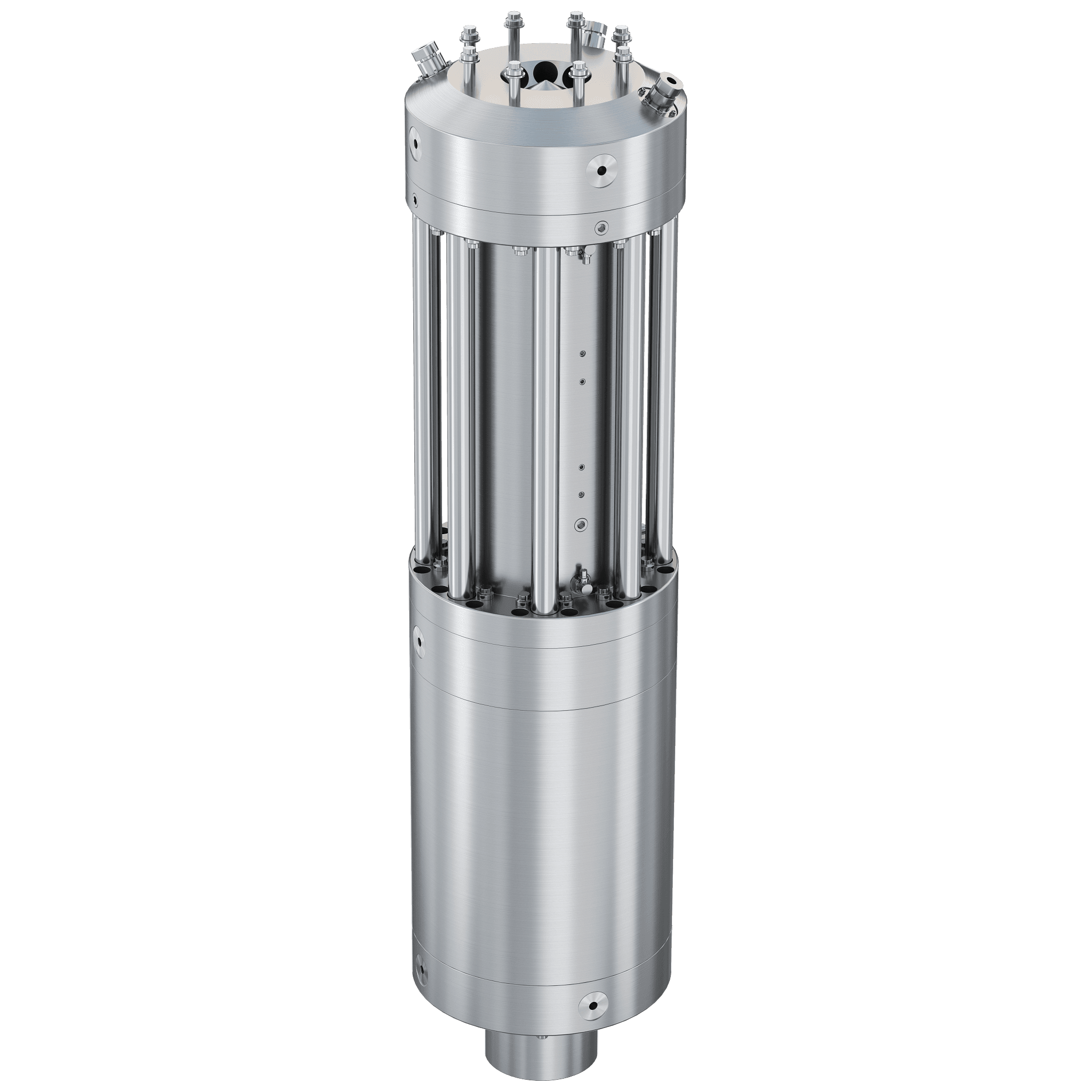

Flowserve Cryogenic Submerged Motor Pump - High Pressure (HP) Series

Name: Flowserve Cryogenic Submerged Motor Pump - High Pressure (HP) Series
Brand: Flowserve
SKU: flowserve-4804

رقم القطعة: flowserve-4804

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

The Flowserve HP Pump Series represents a significant advancement in cryogenic pumping technology, integrating over 300 years of combined LNG industry expertise. Designed for LNG regasification terminals worldwide, the HP Series combines high efficiency, inherent safety, and exceptional reliability to significantly reduce total cost of ownership. Features and benefits: - Industry-leading efficiency reduces power consumption, lowers OPEX, and decreases CO2 emissions throughout the pump’s service life - Active Thrust Balancing System virtually eliminating axial bearing loads extending bearing life significantly - Ceramic ball bearings with hardened steel races provide exceptional wear resistance and debris tolerance for improved reliability and bearing life - Variable Pitch Inducer with suction-specific speeds up to 100,000+ dramatically reduce NPSHR - Configure-to-order approach with fixed speed and full VFD compatibility, reducing lead times and simplifying spare parts management

المواصفات

Brand line	Flowserve
Standards	API 610; NFPA 59A
Size Range	All available and future lengths requires by the market
Materials	Aluminum 6061-T6 (Main Components); High Strength Stainless Steel (Shafts); 304 or 316 Stainless Steel (Suction Vessel)
Operating Parameters	Designed for LNG
Pressure Class Range	Up to ASME Class 900
Flows to	600 m3/h (2,640 gpm)
Heads to	2,400 m (7,870 ft)
Maximum pressure to	124 bar (1,800 psi)
Typical LNG Temperature	-162°C (-260°F)
