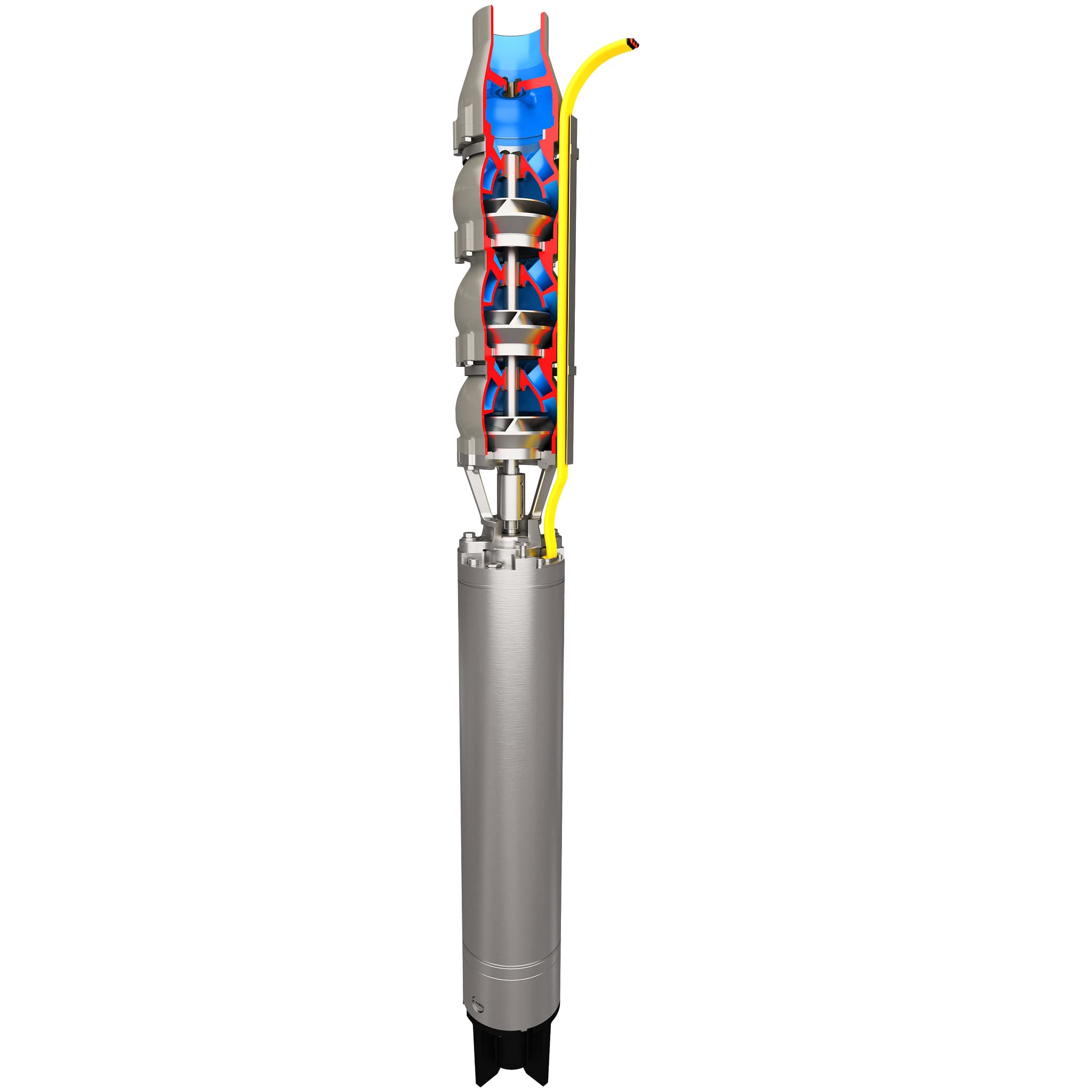

Byron Jackson® SUBM Submersible Pump with H2O Water-Filled Motor

Name: Byron Jackson® SUBM Submersible Pump with H2O Water-Filled Motor
Brand: Flowserve
SKU: flowserve-563

رقم القطعة: flowserve-563

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

The Byron Jackson H2O deep well pump with direct coupled water filled motors has single or multistage design for continuous operation. Extensive selection of hydraulics, materials and options to ensure optimal value for required applications. Features and benefits: - Submersible pump units are available with various options: - Radial, half-axial and axial flow hydraulics - Heavy duty axial motor bearings - Materials from cast iron to SuperDuplex - Bowl and impeller wear ring configurations - Winding insulation materials and winding layouts - Cable qualities and cable configurations - Motor filling fluid temperature control - Accessories (shrouds, control equipment, installation accessories, frequency converters, cables, non return valves, adapters, etc.)

المواصفات

Brand line	Byron Jackson
Standards	Flowserve
Size Range	Pump sizes from 150 mm (6 in) to 762 mm (30 in), motor sizes from 150 mm (6 in) to 762 mm (30 in); Motor power up to 2237 kW (3000 hp) 2-8 pole designs, 50 & 60 Hz; Voltage up to 6600V
Operating Parameters	Motor sizes to 2237 kW (3000 hp)
Flows to	4500 m³/h (19800 gpm)
Heads to	800 m (2625 ft)
Deep Wells Design	Standard design for deep well or offshore applications (motor underneath pump)
Bottom Intake Design	Pump unit with intake at bottom for low fluid level applications (motor above pump)
High Temperature Motor Design	Special motor is designed for handling fuids with temperatures above a standard of 30°C. with a maximum temperature of 95°C
