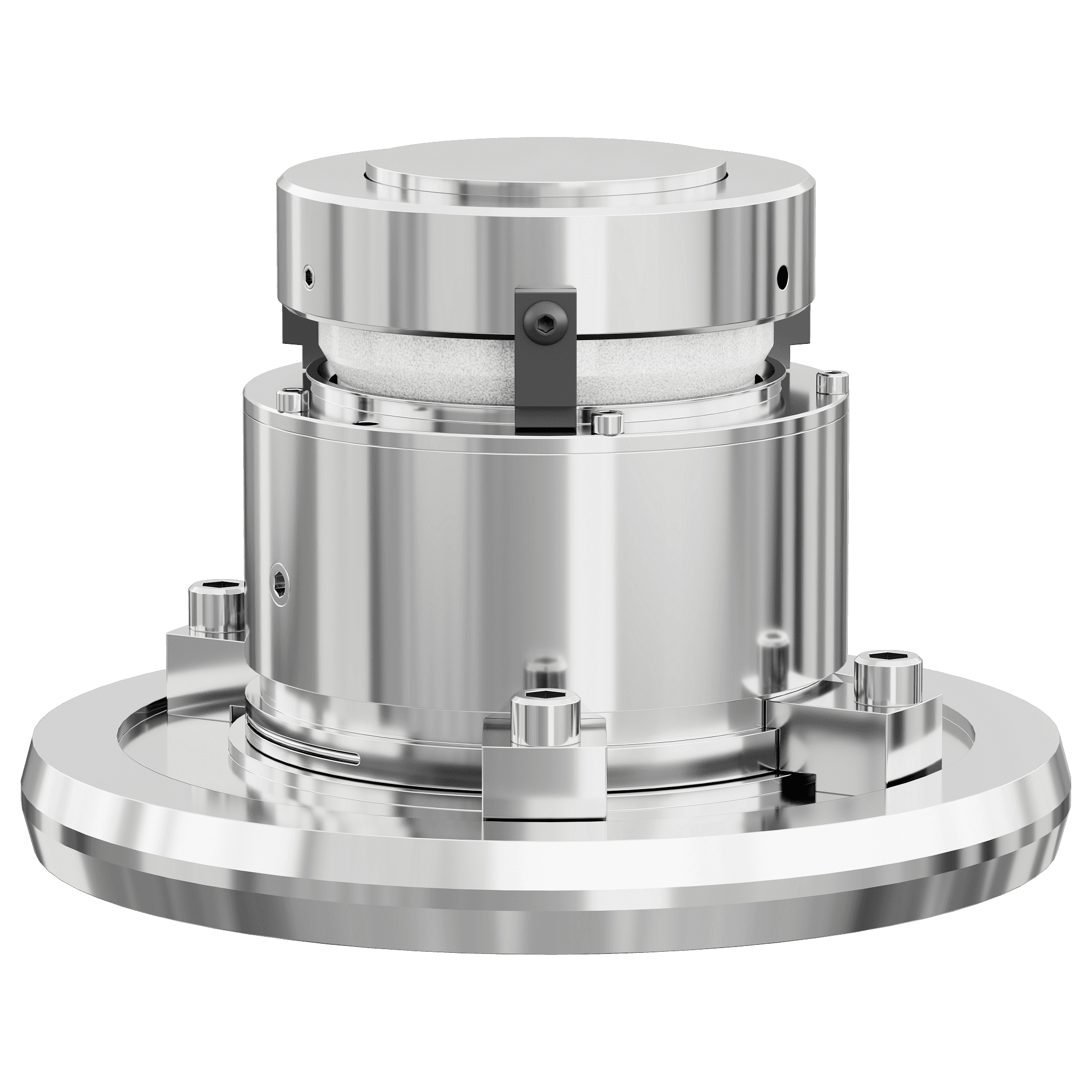

Flowserve® LMX Standard Cartridge Seal

Name: Flowserve® LMX Standard Cartridge Seal
Brand: Flowserve
SKU: flowserve-4711

رقم القطعة: flowserve-4711

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

The LMX cartridge lip seal is engineered for pharmaceutical manufacturing and a broad range of specialty chemical processing, eliminating the risk of carbon contamination in applications where batch purity is essential. Its carbon-free materials and proprietary float design ensure consistent sealing, long life, and low heat generation. The seal is fully field‑repairable to minimize downtime. Features and benefits: - Pure Performance, Zero Contamination: Carbon-free design protects product integrity and eliminates the risk of scrap. - Built to Last in Tough Conditions: Handles extreme shaft movement while running cool - delivering longer seal life without added bearings. - Minimize Downtime: Fast, simple repairs with readily available kits and local support keep operations moving. - Simplified Systems, Greater Efficiency: No barrier gas required - reducing complexity, utilities, and total cost of ownership. - Easy to Install: Drop-in installation without gearbox disassembly, featuring FDA-compliant materials, USP Class VI elastomers for wetted parts, and optional SIP/CIP compatibility

المواصفات

Brand line	Flowserve
Size Range	2.000" to 5.500"
Temperature	Up to 121°C (250°F)
Speed	100 RPM
Pressure Class Range	Vacuum to 100 psi
Pressure	Vacuum to 100 psi (7 bar)
Elastomers	FFKM
Sleeve & Base Plate	Ceramic
Lips	Mineral-filled PTFE
Metals	316 stainless steel
Maximum Runout	3.0 mm (0.120”) TIR
Maximum Leakage	11.1 LPH per cm (1.0 SCFH per inch) of shaft diameter
