Flowserve® Ampliflow T-Boost Compressor Seals and Systems

Flowserve

Flowserve® Ampliflow T-Boost Compressor Seals and Systems

Name: Flowserve® Ampliflow T-Boost Compressor Seals and Systems
Brand: Flowserve
SKU: flowserve-3474

رقم القطعة: flowserve-3474

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

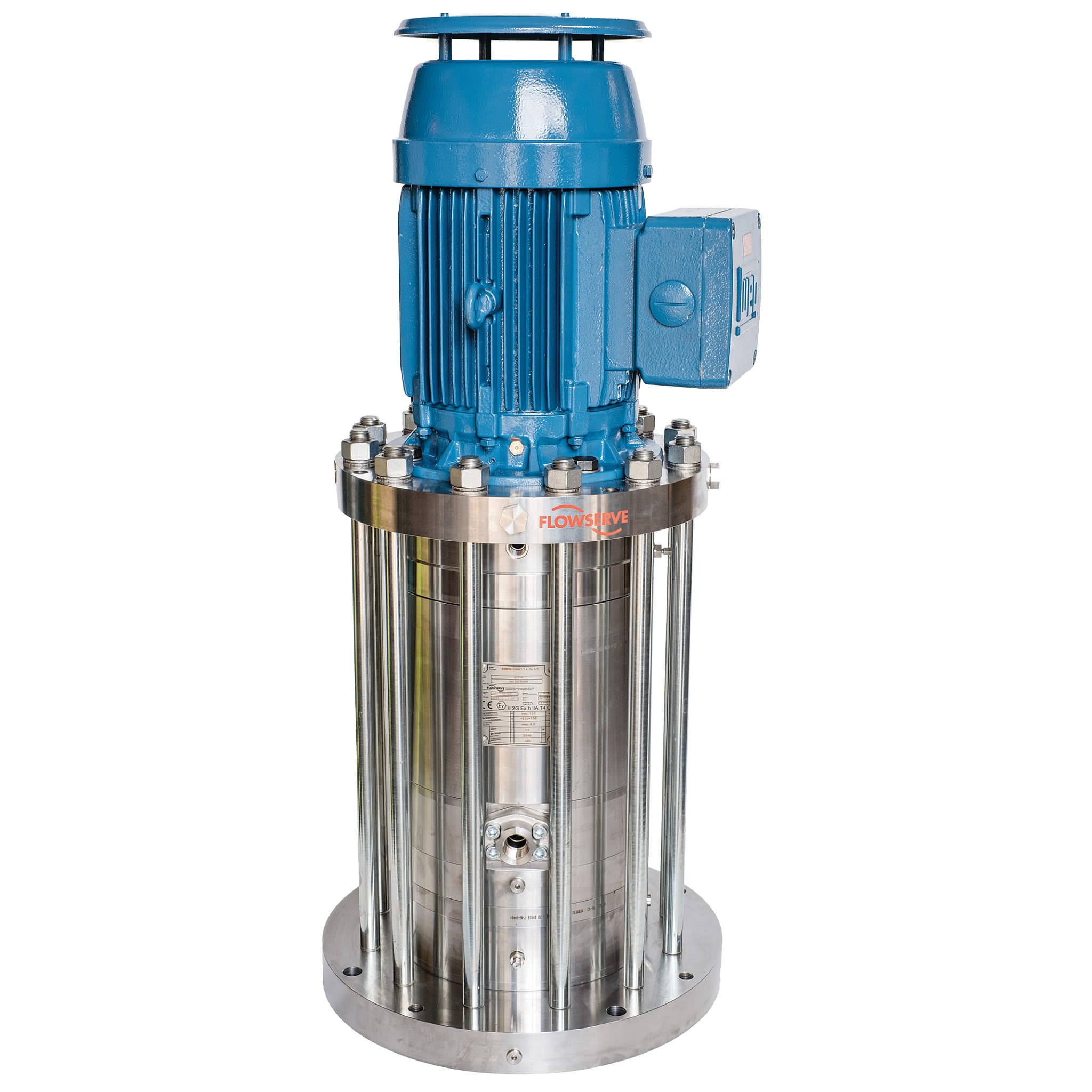

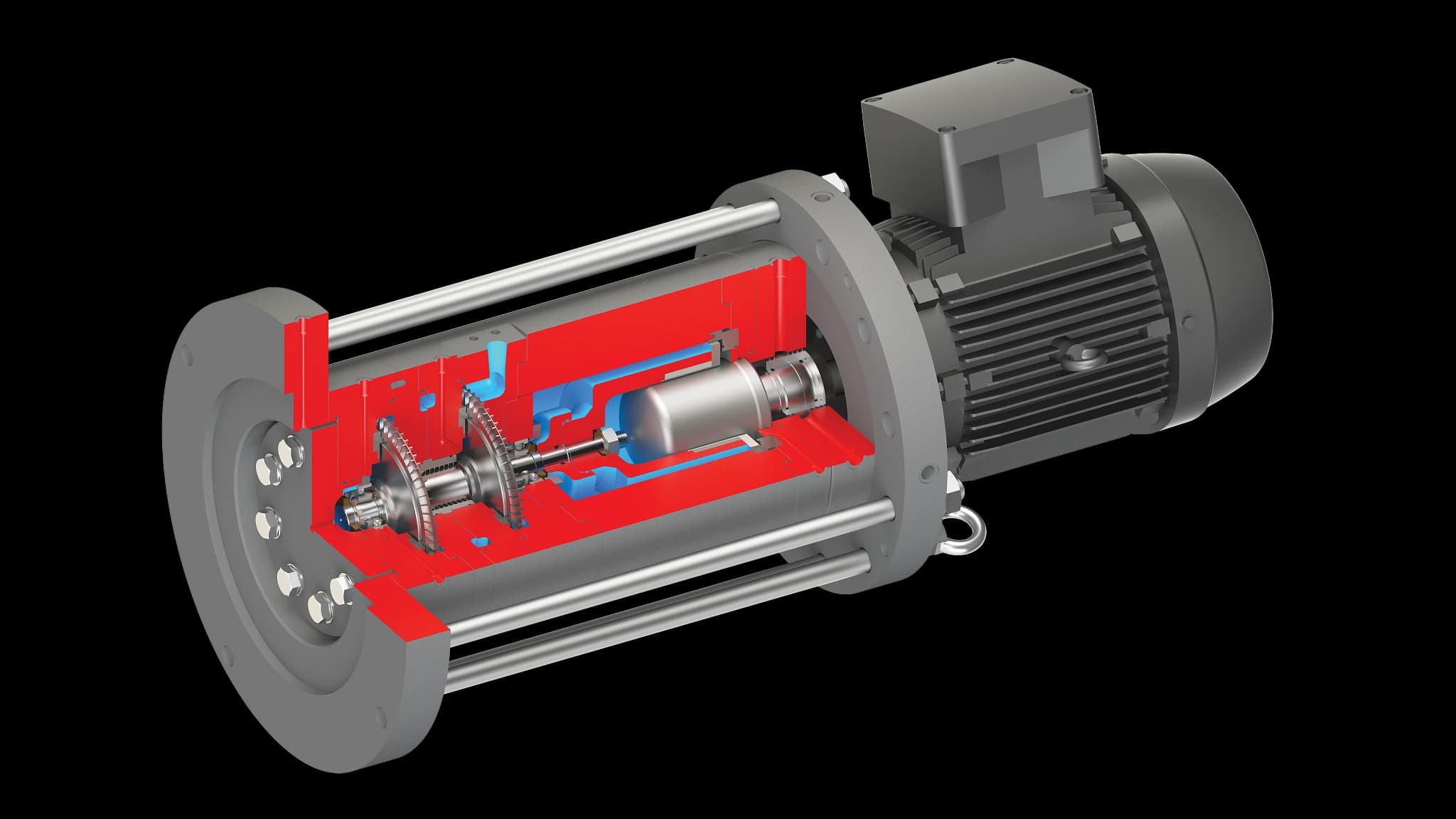

The Flowserve Ampliflow T-Boost is an electrically driven seal gas booster designed to protect dry gas seals and ensure compressor performance whenever differential pressure and flow are low. Powered by an innovative drive system, the T-Boost combines high energy efficiency with operating times of more than 24,000 hours. Features and benefits: - Reliable seal gas supply during low differential pressure conditions to protect dry gas seals and maximize compressor uptime - Advanced ceramic shell technology eliminates eddy current losses, improving energy efficiency, reducing thermal load and avoiding the need for additional cooling - Hermetically sealed design ensures zero gas leakage for maximum process safety and environmental protection - High-pressure capability supports design pressures of up to 350 barg - Low-maintenance construction with minimal wear parts helps extend service intervals and achieve operating times of more than 24,000 hours - Simple installation and integration into existing dry gas seal support systems

المواصفات

Brand line	Flowserve
Standards	NEC Class 1, ATEX Zone 1
Configurations	T-Boost D; T-Boost S 10; T-Boost S 20; T-Boost S 40; T-Boost S 60; T-Boost SF 50; T-Boost SF 80
Certifications	NACE, others upon request
Elastomers	FKM, others
Metal Components	stainless steel
Gas media	H2 to CO2
Electric motor	5.5 to 18 kW variable frequency driven
Maximum allowable working pressure	up to 350 bar (5000 psi) @ -20°C to 180°C (-4°F to 356°F)
Containment shell	ceramic
Dimensions	545 dia. x 1340 mm length (22 x 52 in)
Connections	threaded, flange
