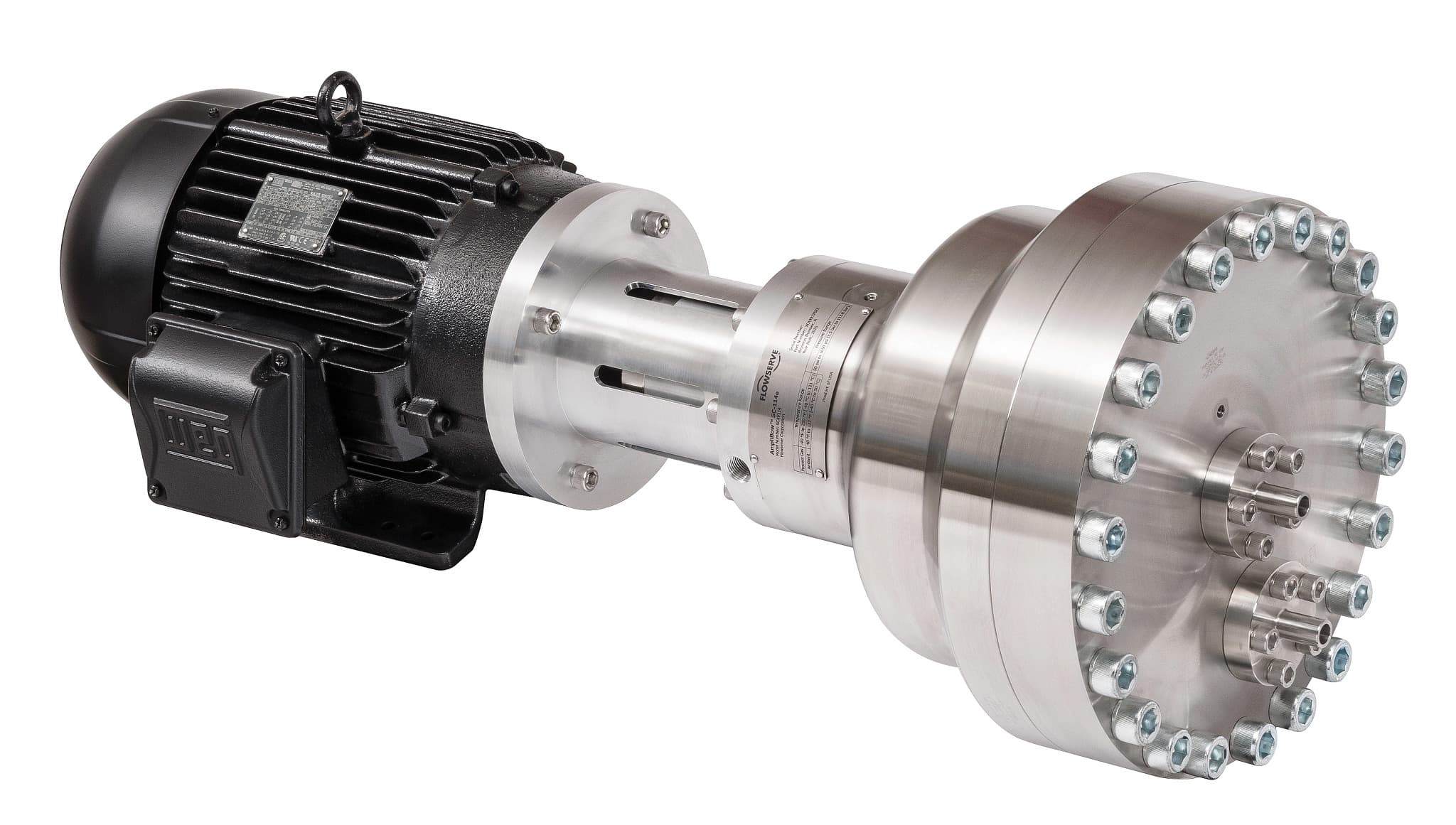

Compressor Seals and Systems - Ampliflow G-Boost

Name: Compressor Seals and Systems - Ampliflow G-Boost
Brand: Flowserve
SKU: flowserve-3486

رقم القطعة: flowserve-3486

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

The Ampliflow G-Boost delivers a continuous supply of clean seal gas to compressor gas seals, eliminating a source of contamination and equipment downtime. Driven by an electric motor, the Ampliflow G-Boost improves operational reliability during periods of low differential pressure across the compressor when the available seal gas supply is insufficient. Features and benefits: - Hermetically sealed, magnetically driven design eliminates leakage of process gas from the unit along the shaft. - Positive displacement Scroll Compressor uses direct mechanical force to deliver consistent flow despite changes in operating conditions. - Due to the units differential pressure capabilities, it can be installed upstream of the dry gas seal support system panel. This is a distinct advantage over competing units that must be placed downstream of all dry gas seal system equipment. - Modular design allows for quick and simplified maintenance at site.

المواصفات

Brand line	Flowserve
Standards	NEC Class 1, Div. 2, Group BCD
Housing	Stainless steel
Pressure Class Range	114 bar (1650 psi)
Dimensions	996 x 385 x 410 mm (39.20 x 15.16 x 16.20 inches)
Magnetic Coupling	Titanium
