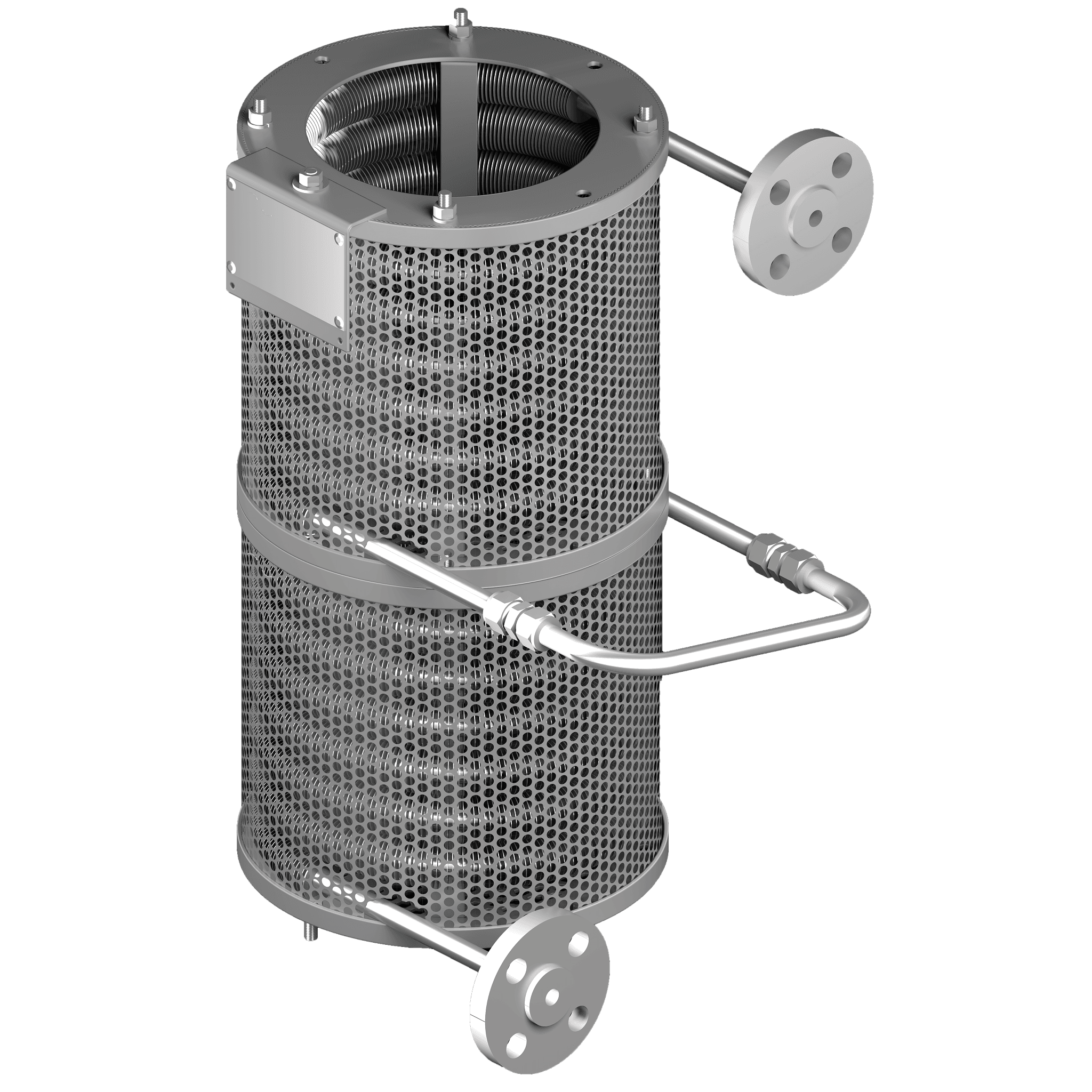

Flowserve A625 Airfin Seal Cooler

Name: Flowserve A625 Airfin Seal Cooler
Brand: Flowserve
SKU: flowserve-4542

رقم القطعة: flowserve-4542

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

The Flowserve A625 seal cooler series is an excellent choice for cooling water-free solutions. These seal coolers offer a reliable and cost-effective choice for cooling mechanical seals. With easy installation and maintenance, they use ambient air to eliminate the need for cooling water in low- and medium-duty applications. The series includes a range of configurations, such as natural and forced convection, single- and double-stack, user connections, drain, vent and temperature indicators. Features and benefits: - Lower operating costs with finned-tube air-cooling technology that eliminates water treatment and disposal - Improve reliability with water-free cooling design, which prevents accidental shutoff and winter freeze-up - Minimize installation and maintenance costs with unit design that requires less piping and is not as susceptible to fouling

المواصفات

Brand line	Flowserve
Configurations	Single-stack cooler; Double-stack cooler; Ambient convection cooling; Forced convention cooling
Design Range	Compliant with API 682 4th edition; 316 stainless steel cooling coil with aluminum fins; 304 stainless steel housing materials; Maximum working pressure of 200 bar (2,900 psi) at 371°C (700°F); Designed for ASME B31.3 (no U-stamp required)
Easy Quotation	Pre-engineered configurations
Standard Interface	Same footprint and connections
CRN for Canada as standard • North American standard motor	Div. 1 C and D/Zone 1 IIA T3c
ATEX motor	II 2 G Ex d IIB T4, T1 Gc -20°C ≤ Ta ≤ 60°C
Less Lead Time	Save 12 weeks or more
